Automationdirect.com DirectLOGIC DL205 Series User Manual

DL205 User Manual, 4th Edition, Rev. B
2–34
Chapter 2: Installation, Wiring and Specifications
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D

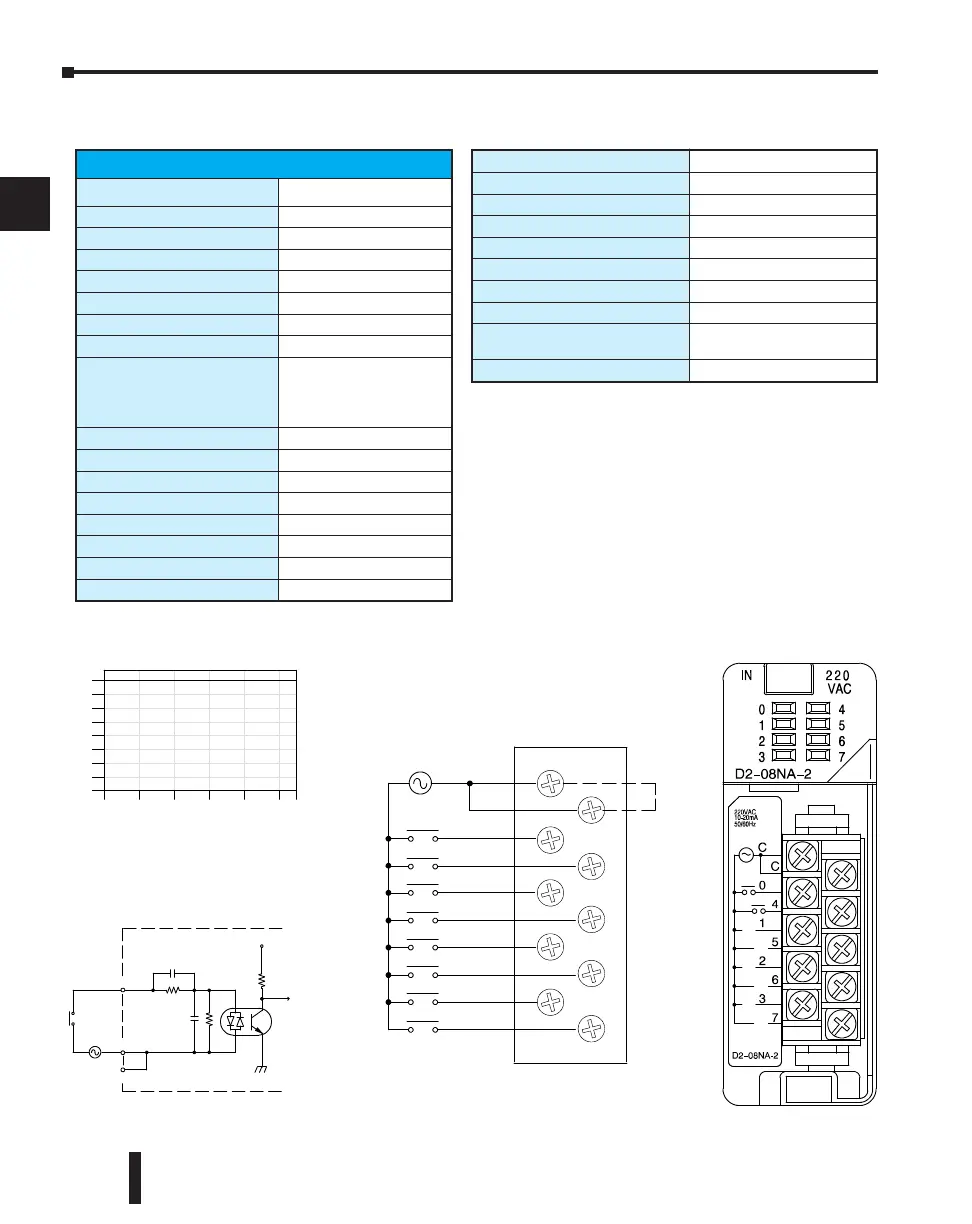

D2-08NA-2, AC Input
D2-08NA-2 AC Input
Inputs per Module
8
Commons per Module
1 (2 I/O terminal points)
Input Voltage Range
170-265 VAC
Peak Voltage
265 VAC
ON Voltage Level
150 VAC minimum
OFF Voltage Level
40 VAC maximum
AC Frequency
47-63 Hz
Input Impedance
18 k @ 60 Hz
Input Current
9 mA @ 220 VAC, 50 Hz
11 mA @ 265 VAC, 50 Hz
10 mA @ 220 VAC, 60 Hz
12 mA @ 265 VAC, 60 Hz
Minimum ON Current
10 mA
Maximum OFF Current
2 mA
Base Power Required 5VDC
100 mA
OFF to ON Response
5 to 30 ms
ON to OFF Response
10 to 50 ms
Terminal Type (included)
Removable; D2-8IOCON
Status Indicator
Logic side
Weight
2.5 oz. (70 g)
Operating Temperature
3
2ºF to 131ºF (0º to 55ºC)
Storage Temperature
-4ºF to 158ºF (-20ºC to 70ºC)
Humidity
3
5% to 95% (non-condensing)
Atmosphere
N
o corrosive gases permitted
Vibration
M
IL STD 810C 514.2
Shock
MIL STD 810C 516.2
Insulation Withstand Voltage
1,500 VAC 1 minute (COM-GND)
Insulation Resistance
10M  @ 500 VDC
Noise Immunity
NEMA 1,500V 1 minute
SANKI 1,000V 1 minute
RFI
150 MHz, 430 MHz
Optica l
COM
Isolator
INP UT
220VAC
V+
To L E D
Internal module circuitry
COM
C
C
0
1
2
3
4
5
6
7
Internally
conne cted
220VAC
0
2
4
6
8
0
10 20 30 40 50 55
Ambient Temperature (˚C /˚F )
32
50 68 86 104 122 131
C˚
F˚
Poi nts
Derating Chart
