Automationdirect.com DirectLOGIC DL205 Series User Manual

DL205 User Manual, 4th Edition, Rev. B
2–37
Chapter 2: Installation, Wiring and Specifications
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D

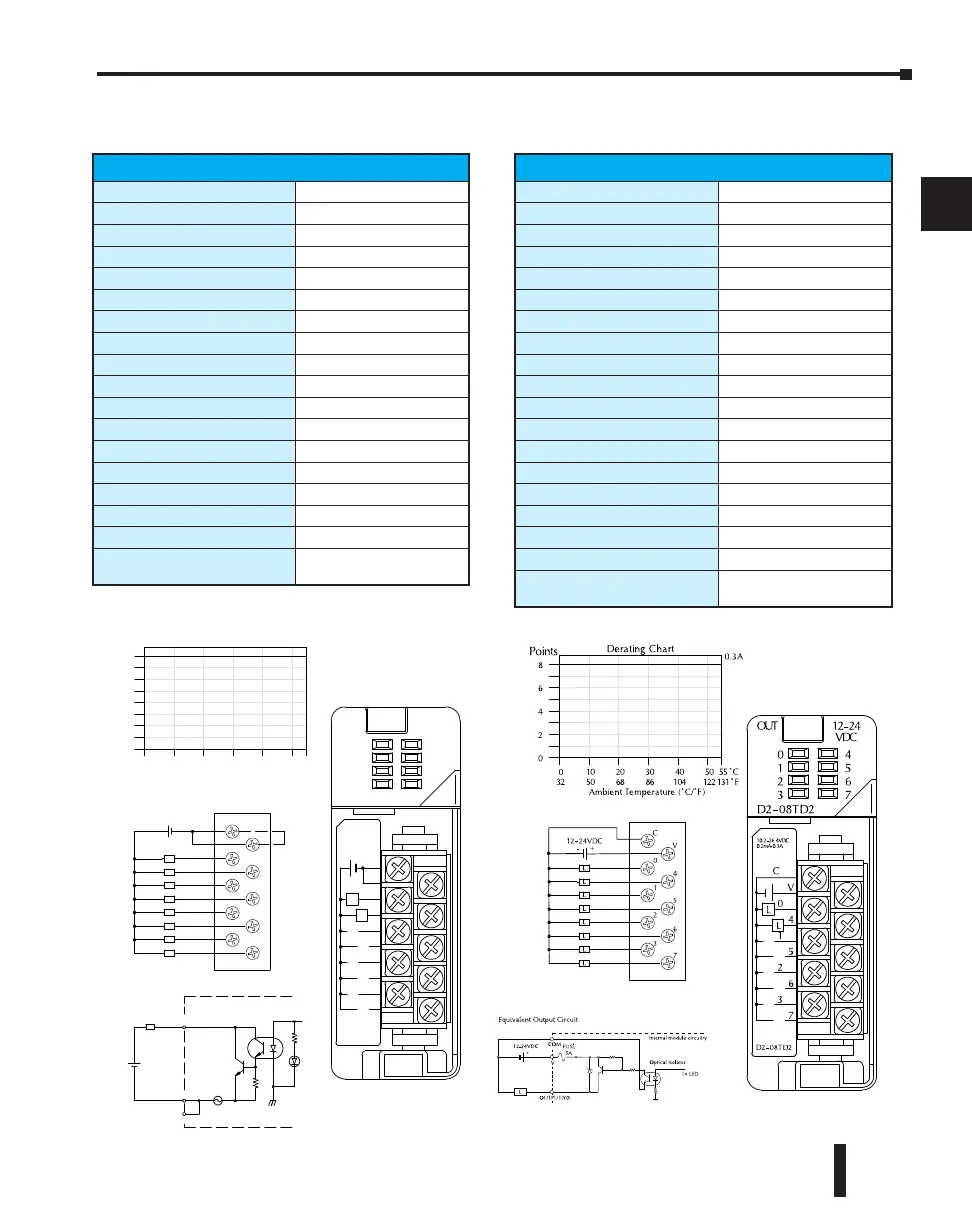

D2–08TD1, DC Output
D2–08TD2, DC Output
Optica l
Isolator
L
COM
COM
OUT P UT
12--24VDC
+
5A
Internal module ci rcuitry
C
C
0
1
2
3
4
5
6
7
12--24VDC Internally
connected
L
L
L
L
L
L
L
L
0
2
4
6
8
0
10 20 30 40 50 55
Ambient Te mperature (˚C/˚F)
32 50 68 86 104 122 131
C˚
F˚
Points
+
C
C
0
4
1
5
2
6
3
7
10.2- -26.4VD C
0.2mA-0.3A
D2-- 08T D1
OUT 12 -- 24
D2--08TD1
VDC
0
1
2
3
4
5
6
7
L
L
Derating Chart

D2-08TD1 DC Output
Outputs per Module
8 (current sinking)
Commons per Module
1 (2 I/O terminal points)
Output Type
NPN open collector
Operating Voltage
10.2-26.4 VDC
Peak Voltage
40 VDC
ON Voltage Drop
1.5 VDC maximum
AC Frequency
N/A
Minimum Load Current
0.5 mA
Max Load Current
0.3A/point; 2.4A/common
Max Leakage Current
0.1 mA @ 40 VDC
Max Inrush Current
1A for 10 ms
Base Power Required 5VDC
100 mA
OFF to ON Response
1 ms
ON to OFF Response
1 ms
Terminal Type (included)
Removable; D2-8IOCON
Status Indicator
Logic side
Weight
2.3 oz. (65g)
Fuses
1 per common
5A fast blow, non-replaceable
D2-08TD2 DC Output
Outputs per Module
8 (current sourcing)
Commons per Module
1
Output Type
PNP open collector
Operating Voltage
12 to 24 VDC
Output Voltage
10.8 to 26.4 VDC
Peak Voltage
40 VDC
ON Voltage Drop
1.5 VDC
AC Frequency
N/A
Minimum Load Current
N/A
Max Load Current
0.3A per point; 2.4A per common
Max Leakage Current
1.0 mA @ 40 VDC
Max Inrush Current
1A for 10 ms
Base Power Required 5VDC
100 mA
OFF to ON Response
1 ms
ON to OFF Response
1 ms
Terminal Type (included)
Removable; D2-8IOCON
Status Indicator
Logic side
Weight
2.1 oz. (60g)
Fuses
1 per common
5A fast blow, non-replaceable
