DL205 User Manual, 4th Edition, Rev. B
5–36
Chapter 5: Standard RLL Instructions - Immediate
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
Out Immediate (OUTI)
The Out Immediate instruction reflects the status of the
rung (on/off) and outputs the discrete (on/off) status to
the specified module output point and the image register
at the time the instruction is executed. If multiple Out
Immediate instructions referencing the same discrete
point are used it is possible for the module output status
to change multiple times in a CPU scan. See Or Out
Immediate.
Or Out Immediate (OROUTI)
The Or Out Immediate instruction has been designed to
use more than one rung of discrete logic to control a
single output. Multiple Or Out Immediate instructions
referencing the same output coil may be used, since all
contacts controlling the output are ored together. If the
status of any rung is on at the time the instruction is
executed, the output will also be on.

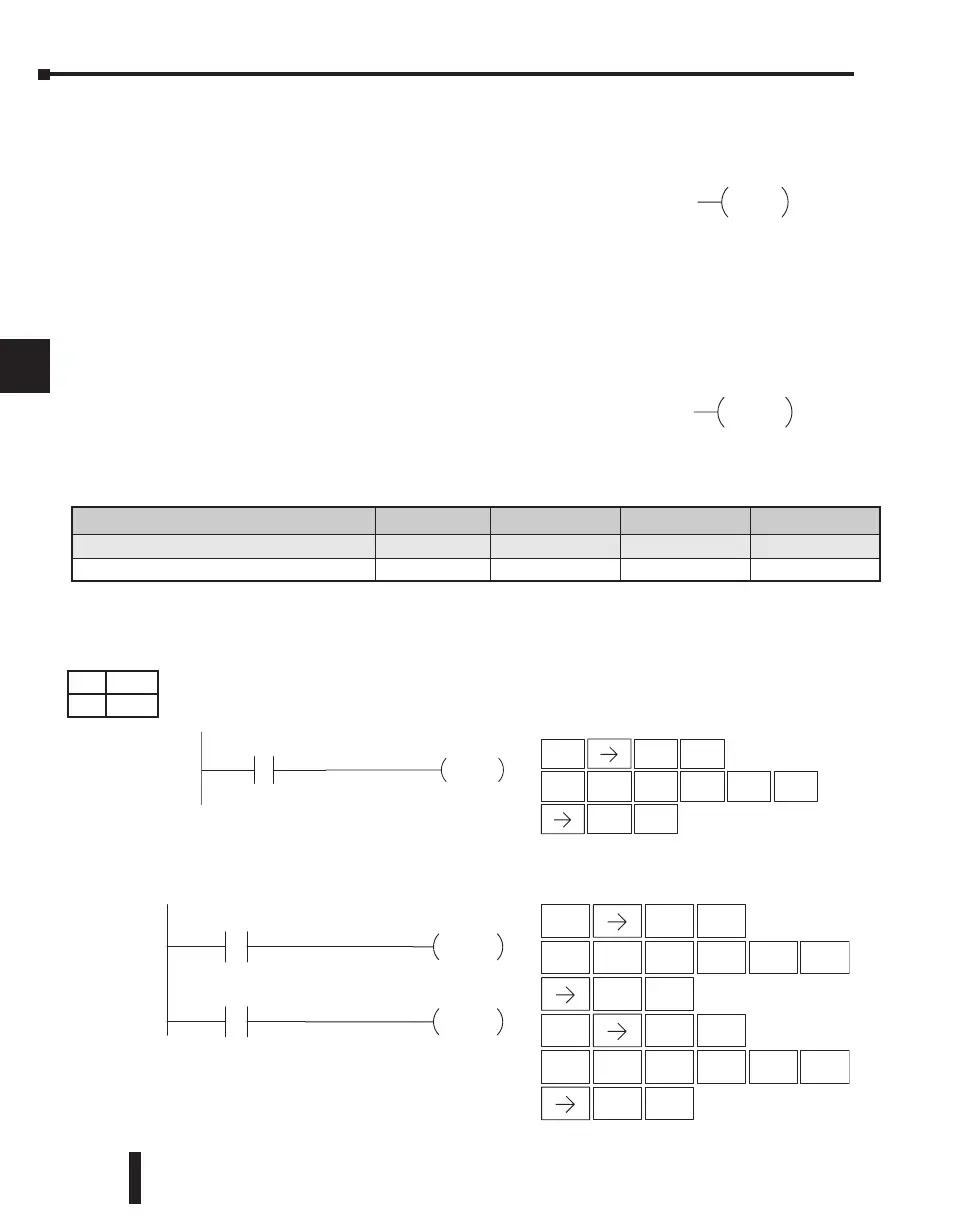

In the following example, when X1 is on, output point Y2 on the output module will turn
on. For instruction entry on the Handheld Programmer, you can use the instruction number
(#350) as shown, or type each letter of the command.
In the following example, when X1 or X4 is on, Y2 will energize.
1
B
ENT
X1
Y2
OUTI
DirectSOFT
Handheld Programmer Keystrokes
STR
$
INST#
O
6
G
3
D
0
A
ENT ENT
2
C
ENT
STR
$
X1
X4
Y2
OR OUTI
Y2
OR OUTI
DirectSOFT
Handheld Programmer Keystrokes
STR
$
1
B
ENT
ENT
4
E
INST#
O
5
F
3
D
0
A
ENT ENT
2
C
ENT
INST#
O
5
F
3
D
0
A
ENT ENT
2
C
ENT
Operand Data Type DL230 Range DL240 Range DL250-1 Range DL260 Range
aaa aaa aaa aaa
Outputs Y 0–177 0–477 0–777 0–1777
DS Used
HPP Used
