Chapter 5: Standard RLL Instructions - Immediate
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D

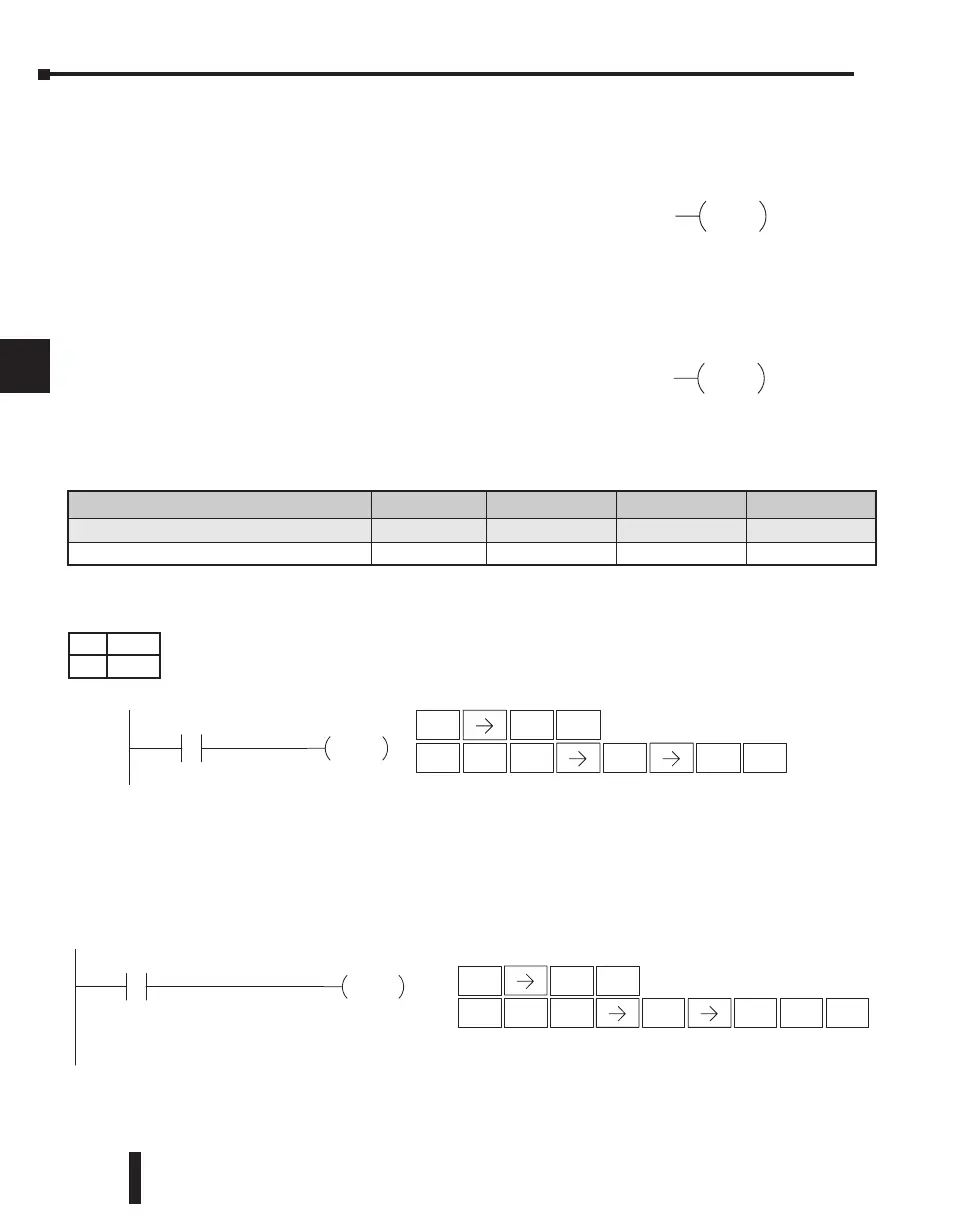

Set Immediate (SETI)
The Set Immediate instruction immediately sets, or
turns on an output or a range of outputs in the image
register and the corresponding output point(s) at the
time the instruction is executed. Once the outputs are
set it is not necessary for the input to remain on. The
Reset Immediate instruction can be used to reset the
outputs.
Reset Immediate (RSTI)
The Reset Immediate instruction immediately resets,
or turns off an output or a range of outputs in the
image register and the output point(s) at the time the
instruction is executed. Once the outputs are reset it is
not necessary for the input to remain on.
In the following example, when X1 is on, Y2 through Y5 will be set on in the image register
and on the corresponding output points.
In the following example, when X1 is on, Y5 through Y22 will be reset (off) in the image
register and on the corresponding output module(s).
1
B
ENT
X1 Y2
SETI
Y5
DirectSOFT
Handheld Programmer Keystrokes
STR
$
SET
X
SHFT
8
I
ENT
2
C
5
F
1
B
ENT
X1 Y5
RSTI
Y22
DirectSOFT
Handheld Programmer Keystrokes
STR
$
SHFT
8
I
5
F
2
C
2
C
ENT
RST
S
