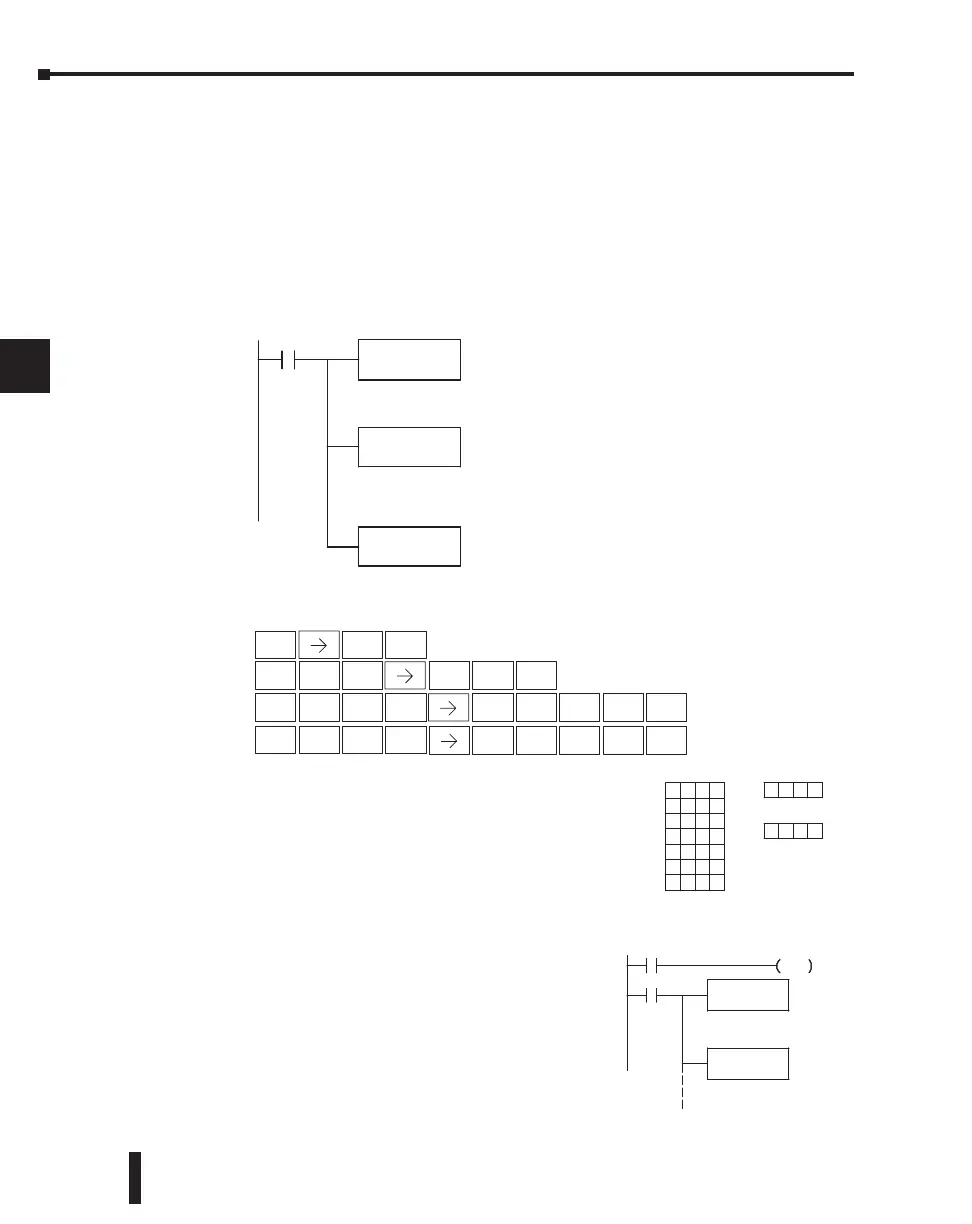

In the following example, when X1 is on, the constant value (K6) is loaded into the
accumulator using the Load instruction. This value specifies the length of the table and is
placed in the first stack location after the Load Address instruction is executed. The octal
address 1400 (V1400) is the starting location for the source table and is loaded into the
accumulator. Remember, V1400 is used as the pointer location, and is not actually part of the
table data source. The destination location (V1500) is specified in the Remove From Bottom.
The table pointer (V1400 in this case) will be decremented by “1” after each execution of the
RFB instruction.
It is important to understand how the table locations are
numbered. If you examine the example table, you’ll
notice that the first data location, V1401, will be used
when the pointer is equal to one. The second data
location, V1402, will be used when the pointer is equal to
two, etc.
Also, our example uses a normal input contact (X1) to
control the execution. Since the CPU scan is extremely
fast, and the pointer decrements automatically, the table
would cycle through the locations very quickly. If this is a
problem for your applicaton, you have an option of using
a one-shot (PD) to remove one value each time the input
contact transitions from low to high.
