DL205 User Manual, 4th Edition, Rev. B
5–219
Chapter 5: Standard RLL Instructions - ASCII
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D

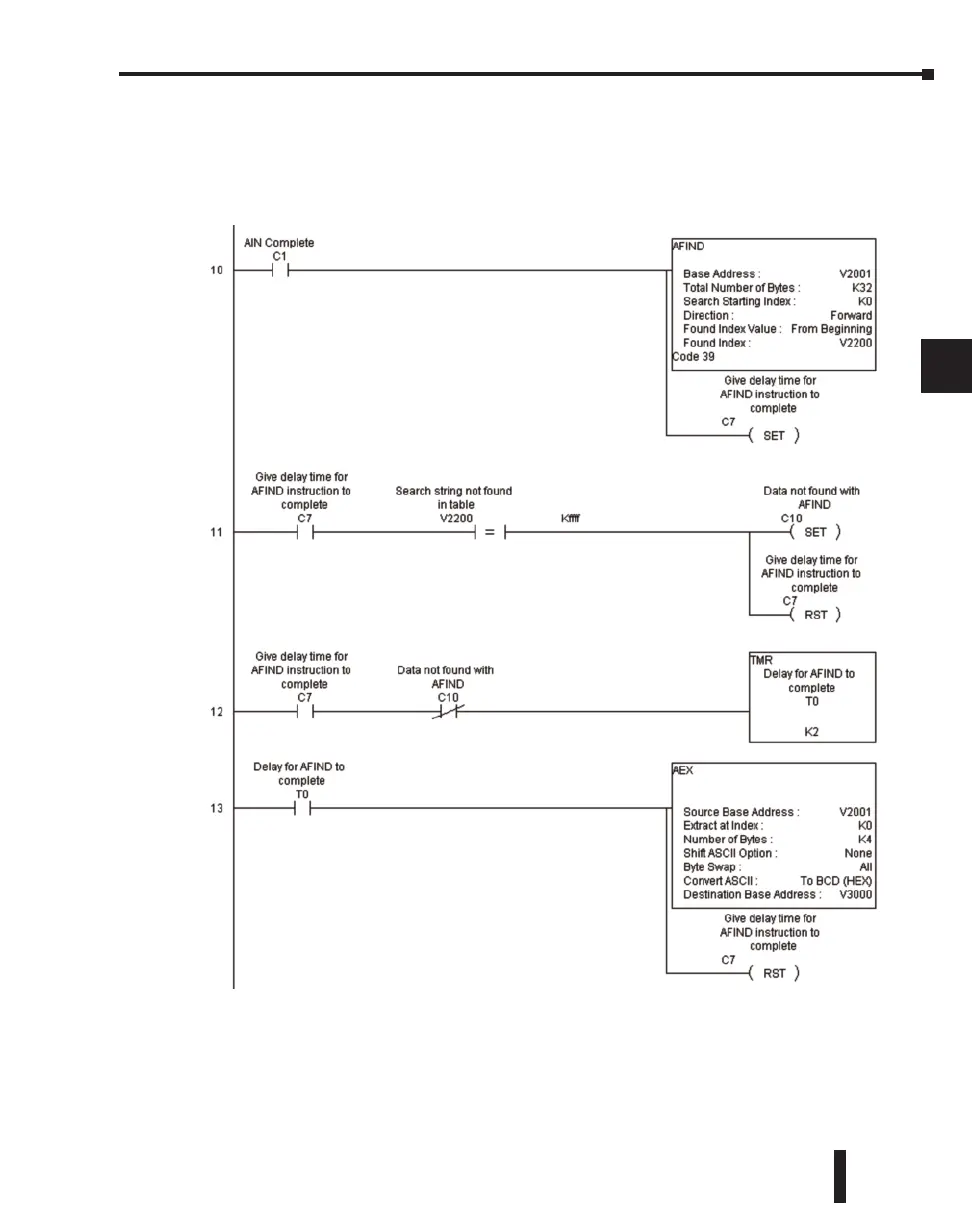

AFIND Example Combined with AEX Instruction
When an AIN instruction has executed, its’ Complete bit can be used to trigger an AFIND
instruction to search for a desired portion of the ASCII string. Once the string is found, the
AEX instruction can be used to extract the located string.
