Chapter 5: Standard RLL Instructions - ASCII
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D

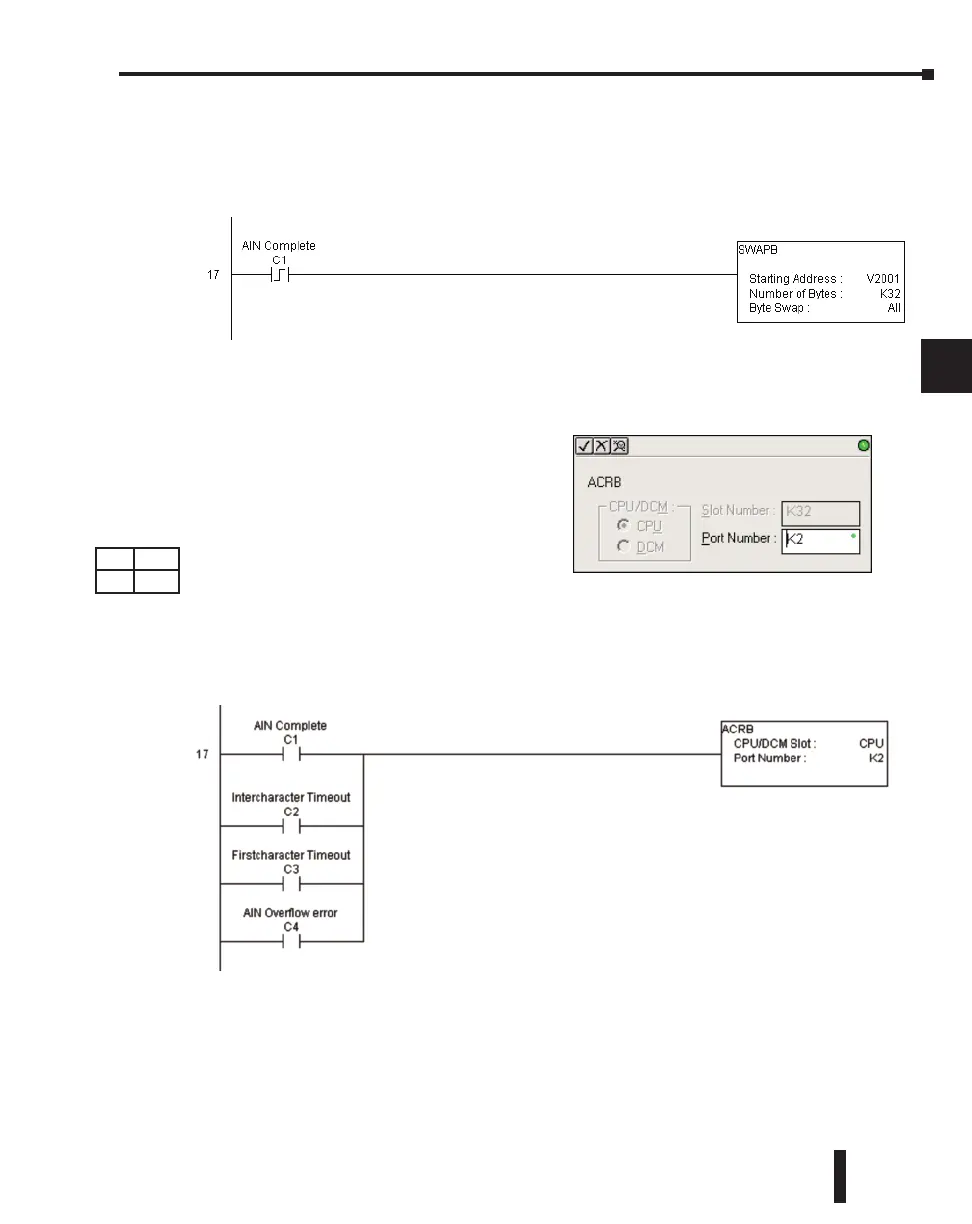

SWAPB Example
The AIN Complete bit is used to trigger the SWAPB instruction. Use a one–shot so the
SWAPB only executes once.
ASCII Clear Buffer (ACRB)
The ASCII Clear Buffer instruction will clear the ASCII receive buffer of the specified
communications port number.
Port Number: must be DL260 port 2 (K2)
ACRB Example
The AIN Complete bit or the AIN diagnostic bits are used to clear the ASCII buffer.
ý
ý
ý
þ
230
240
250-1
260
DS Used
HPP N/A
