Cable Connections
Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02,
Autronica Fire and Security AS
Page 35

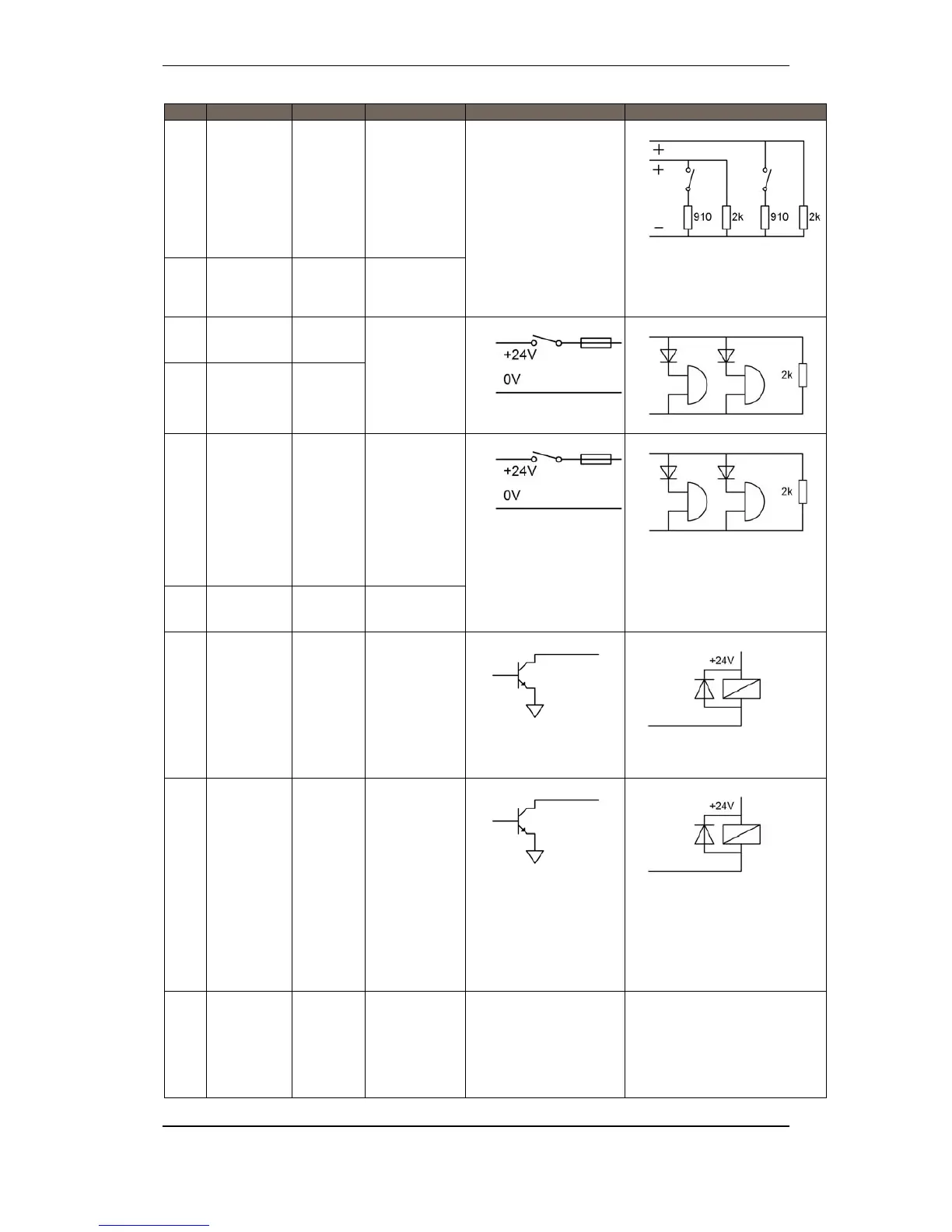

J1- Description Internal External
10
Monitored
Input 2
User
configurable
input.
Monitored for
open and short
circuit.2k
resistor to 0V.
Activates at
910 ohm to 0V.
11
Monitored
Input 0V
0V reference
for Monitored
Inputs 1 & 2
12
Monitored
Output 1
+24V
0,5 A
resettable
fuse.
13
Monitored
Output 1
0V
14
Monitored
Output 2
+24V
0,5 A
resettable
fuse.
Default
configured as
Fire Alarm
Device
Output.
Monitored for
short and open
circuit. 2kohm
end resistor.
Max 500mA.
15
Monitored
Output 2
0V
16
Open
Collector
Output 1
User
configurable
Open collector
output.
Non-monitored
Switches to 0V
at activation.
Max.0,5A
17
Open
Collector
Output 2
User
configurable
Open collector
output.
Non-monitored
Switches to 0V
at activation.
Max.0,5A
18
Auxiliary1
+24V out
Same fuse
as J1.7
Supply voltage
for loads
connected to
Open collector
outputs 1 and
2. Max.1A
9
10
11
+24V
0V
+24V
0V
12
13
14
15
