Barco SP2K-S

47R5913197 /02 SP2K-S
2
2
J4
J3
J5
J4
J3
J5

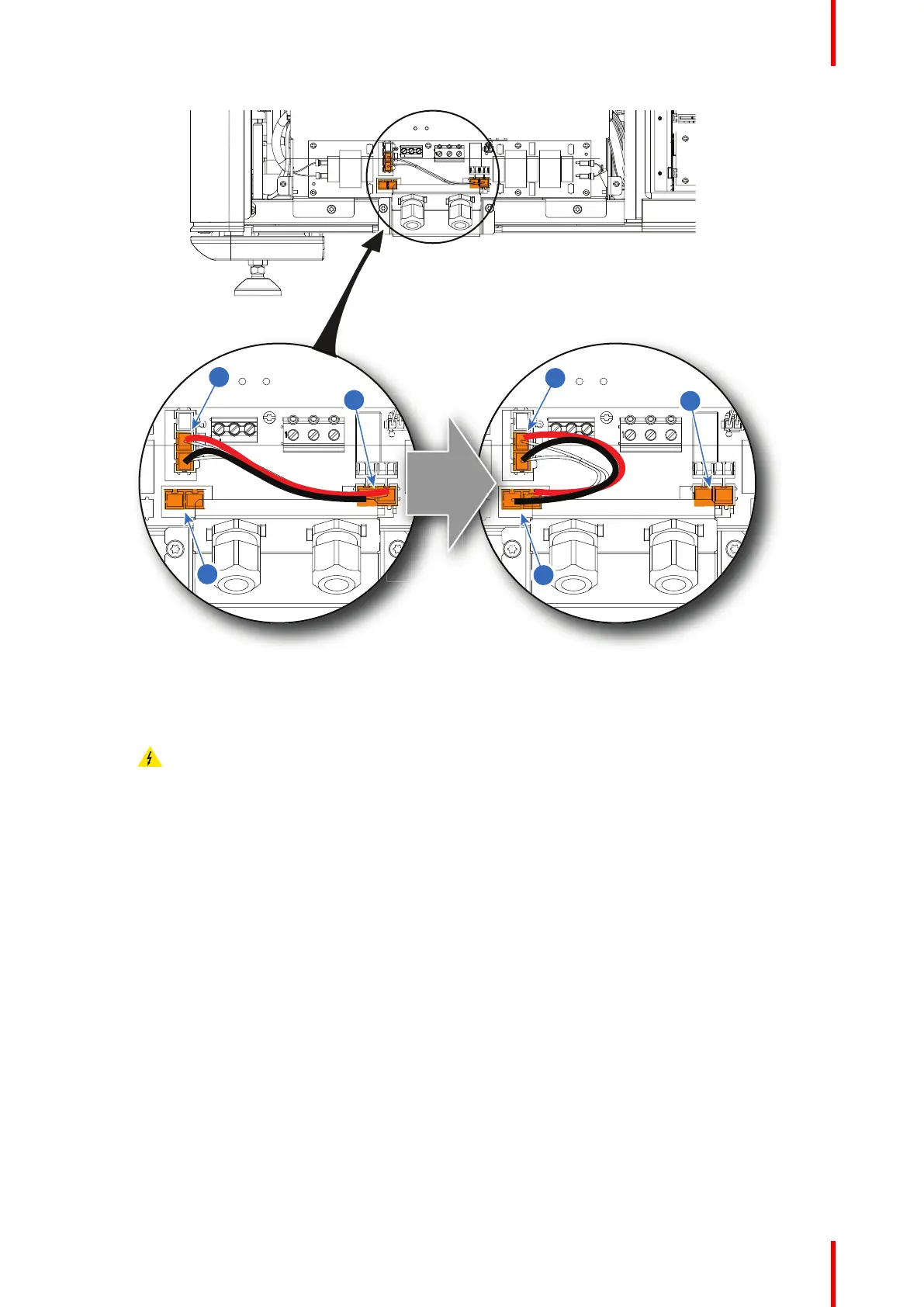

Image 4–7
3. Guide the AC power cord (reference 1) through the cable gland (reference 2). Connect the wires
(references 4 and 5) to the 3–terminal strip (reference 3) dedicated to UPS as illustrated. Use a torque
screwdriver to fasten the screws of the 3-terminal strip with a torque of 0.5 Nm.
Warning: Always connect the PE wire (reference 4) first, then the other wires.
Physical installation projector
