Use Case: Synchronous cycling through sequencer sets, according to path 1,
cycling not interrupted by reset
Settings: Acquisition Mode = Continuous
Trigger Mode for the frame start trigger = On
Trigger Activation for the frame start trigger: Rising Edge
Frame start triggers applied externally via Line 1
Synchronous triggers assigned to the GPIO lines, (configured for input):
Line 4 for path 1 triggers; sequencer set advance
Line 3 for path 0 triggers; reset of sequencer set advance
0 12 3 2 3 00 1-1 1
P
P
Time
Line 3 (GPIO)
Trigger Source,
Path 0
= camera loads a sequencer set into the active set and thus makes it the current sequencer set
= current sequencer set that is used for image acquisition; sequencer set was just loaded
= current sequencer set that is used for image acquisition; already present in the active set
= current sequencer set; present in the active set immediately before the sequencer feature is enabled
= current sequencer set; sequencer set was already in the active set before it was overwritten by sequencer set -1;
sequencer set was just loaded again
Sequencer
Mode Set to
On
Line 4 (GPIO)
Trigger Source,
Path 1
Frame Start
Trigger Signal
Sequencer
Mode Set to
Off
= trigger signal generated externally
= frame exposure and readout
= frame transmission
= camera is waiting for a frame start trigger

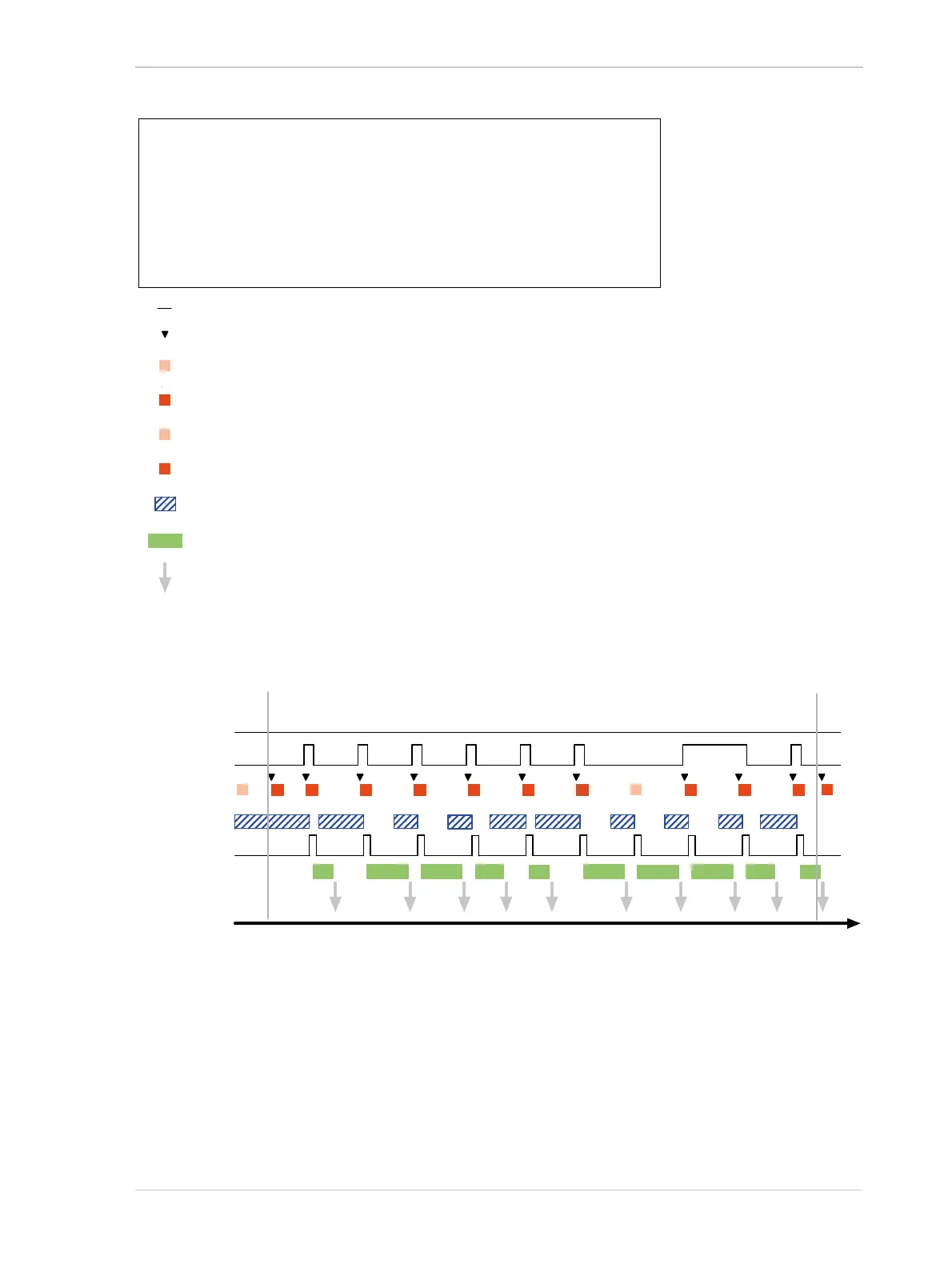

Fig. 89: Use Case 1 - Synchronous Cycling Through Sequencer Sets According to Path 1, No Reset
