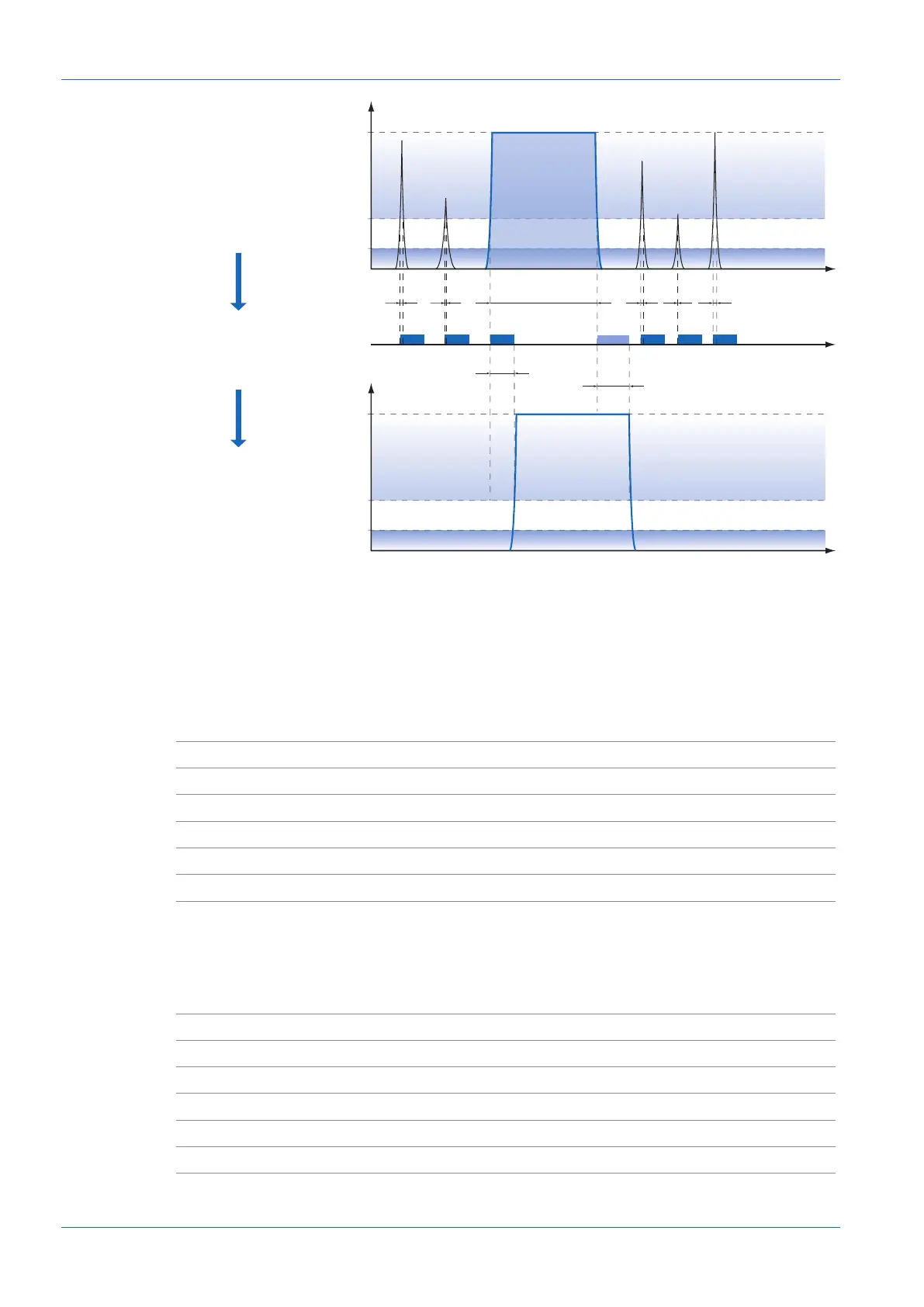

- high time of the signal
t
DebounceHigh
- user-defined debouncer delay for state high
t
DebounceLow
- user-defined debouncer delay for state low
t
DebounceHigh
∆t
2
∆t
3
∆t
4
∆t
5
∆t
6
t
DebounceLow
Incoming signals
(valid and invalid)
Debouncer
Filtered signal
11.10.1 LineDebouncerHighTimeAbs
Defines the absolute value of the selected line debounce time in microseconds for switching
from low to high.
Name LineDebouncerHighTimeAbs
Category DigitalIOControl
Interface IFloat
Access Read / Write
Unit µs
Values 0.000000 - 5,000.000000 (Increment: 1.00)
11.10.2 LineDebouncerLowTimeAbs
Sets the absolute value of the selected line debounce time in microseconds for switching from
high to low.
Name LineDebouncerLowTimeAbs
Category DigitalIOControl
Interface IFloat
Access Read / Write
Unit µs
Values 0.000000 - 5,000.000000 (Increment: 1.00)
