3.3 VCXG.2.I

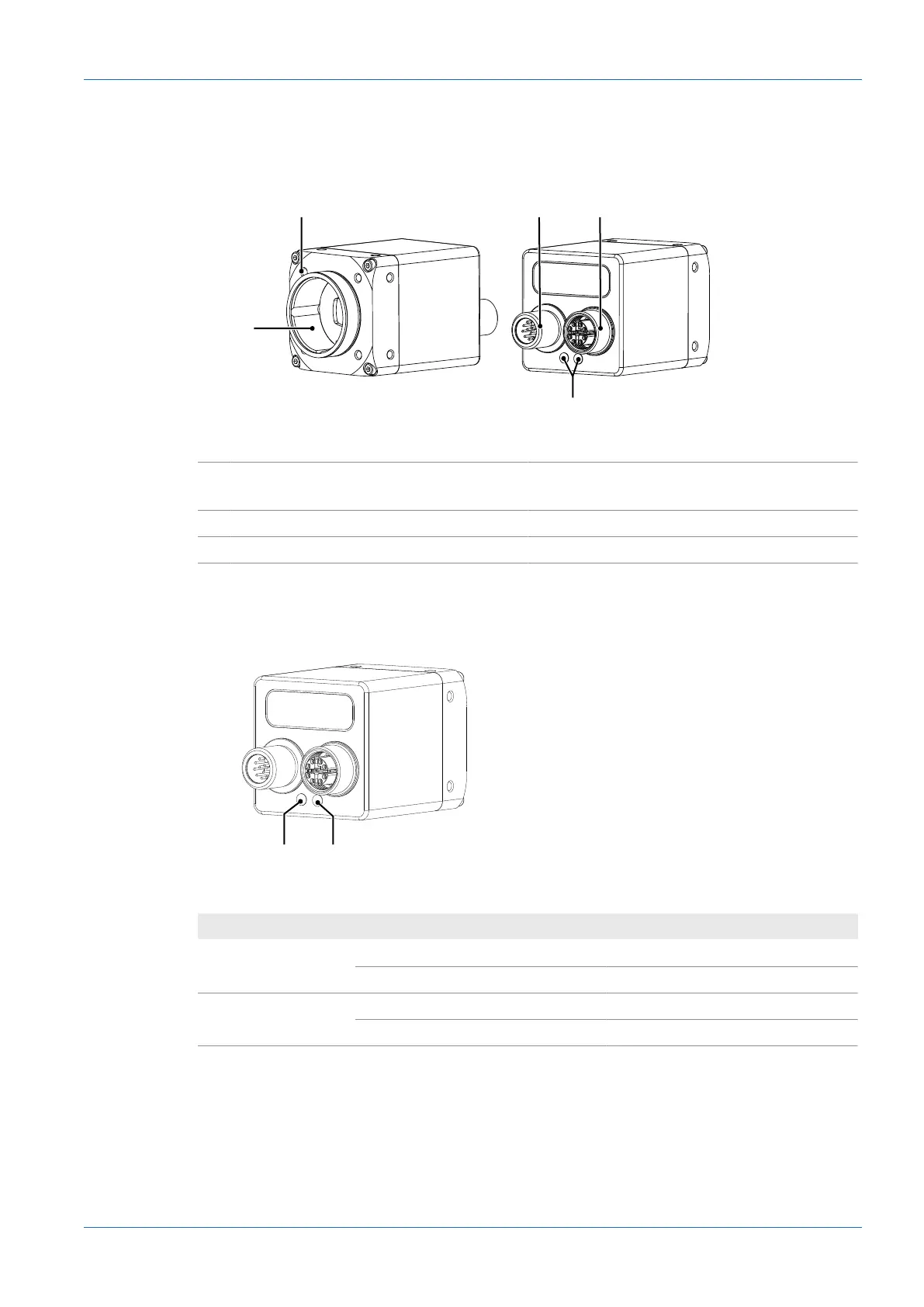

3.3.1 Conception
1
2 3 4
5
1 Lens mount (C-mount) 2 4 x tube adapter with front mounting
threads
3 Power supply / Digital IO 4 Network connection
5 GigE status indicator
3.3.2 LED status indicator
1 2
Signal Meaning
1 yellow Error
yellow flashing Transmitting data
2 green Connection active
green flashing receiving data
