Baumer VCXG.2 Series - Filter Glass Color Cameras; Spectral Sensitivity

Baumer Optical specification | 6
V1.2 | VCXG.2 / VCXG.2.XC / VCXG.2.I / VCXU.2 Operating Manual 55
6.4.2 Filter glass color cameras
0%
1
0%
20%
30%
40%
50%
60%
70%
80%
90%
100%
300 400 500 600 700 800 900 1000 1100 1200
Transmission
Wavelength in nm
Filter glass of color cameras
Filter glass color cameras

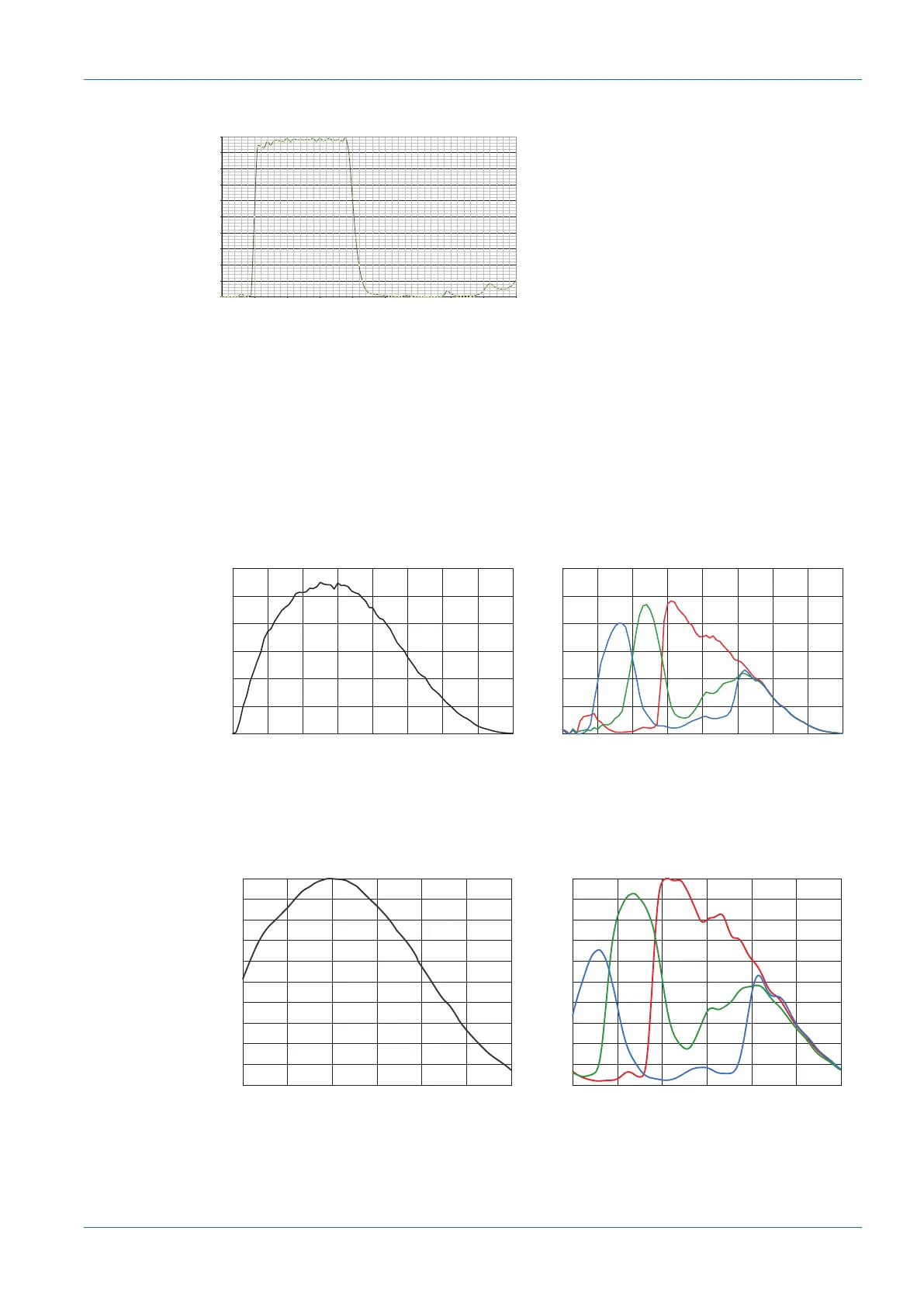

6.4.3 Spectral sensitivity
The following diagrams show the spectral sensitivity characteristics for this camera series. The
characteristic curves for the sensors do not take the characteristics of lenses and light sources
without filters into consideration.
The values refer to the related data sheets.
Cameras
Wave Length [nm]
ON Semiconductor
®
Python 1300 mono
300 400 500 600 700 800 900 1000 1100
Quantum Efficiency [%]
0.0%
10.0%
20.0%
30.0%
40.0%
50.0%
60.0%
Wave Length [nm]
ON Semiconductor
®
PYTHON 1300 color
300 400 500 600 700 800 900 1000 1100
Quantum Efficiency [%]
0.0%
10.0%
20.0%
30.0%
40.0%
50.0%
60.0%
Spectral sensitivity VCXU.2-13M
(PYTHON1300)
Spectral sensitivity VCXU.2-13C
(PYTHON1300)
400 500 600 700 800 900 1000
0
0.2
0.4
0.6
0.8
1.0
Wave Length [nm]
Relative Response
Sony
®
IMX 273 mono
400 500 600 700
800 900 1000
0
0.2
0.4
0.6
0.8
1.0
Wave Length [nm]
Relative Response
Sony
®
IMX 273 mono
Spectral sensitivity VCXU.2-15M
(Sony
®
IMX273)
Spectral sensitivity VCXU.2-15C
(Sony
®
IMX273)
