Baumer Installation | 5
V1.2 | VCXG.2 / VCXG.2.XC / VCXG.2.I / VCXU.2 Operating Manual 35
5.7 Modular tube system (please order separately)
Specific camera models allow for varied modular tube systems as lens protection.
INFO
Several additional housings as lens and camera protection are still available for particular cam-
era models.
Instruction:

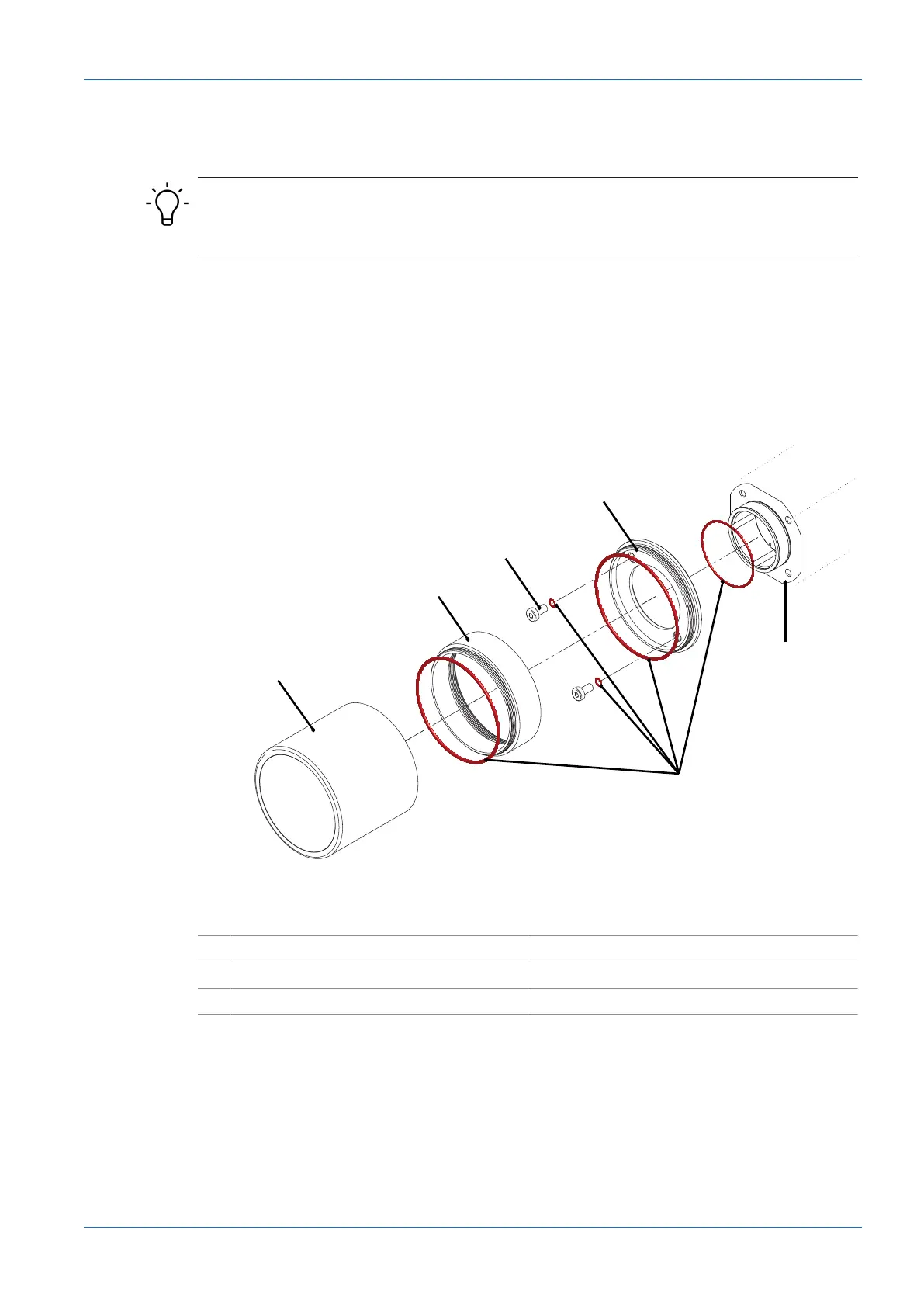

a) Mount the Modular Tube System as shown in the illustration below.
b) Baumer recommends ELKALUB GLS 867 grease for easier installation of the sealing rings
(5).
c) Tighten the screws (3) with a torque wrench to 0.9 Nm.
d) If you need more space for a lens, use a corresponding distance ring (2).
1 Tube 2 Spacer
3 Screw 4 Tube adapter
5 Camera 6 Sealings
