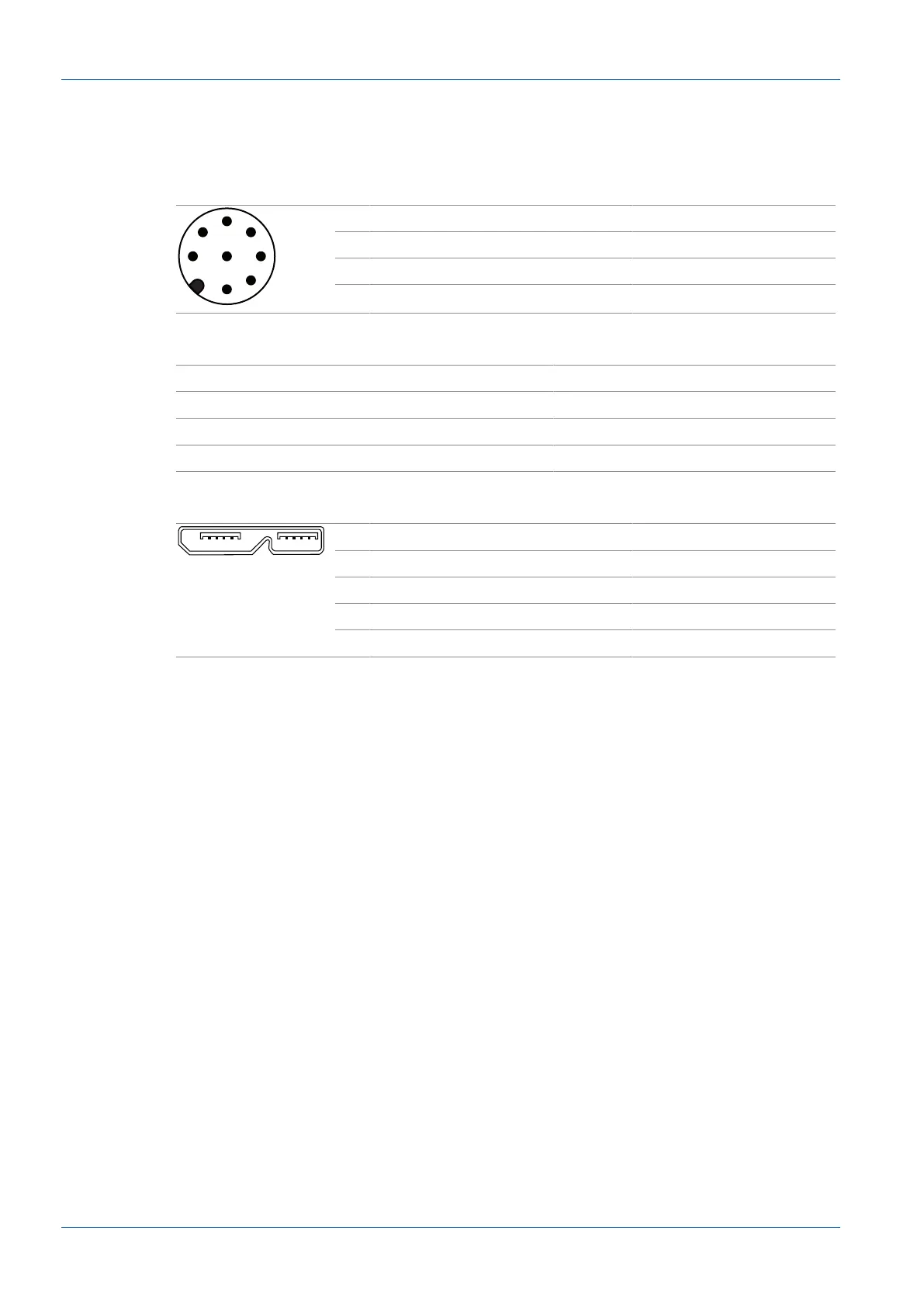

7.5 VCXU.2
7.5.1 Pin assignment
Digital IO
8
5
7
3
1
4
2
6
1 GPIO (Line2) 2 not connected
3 IN1 (Line0) 4 GND IN1
5 Power V
CC
(OUT1) 6 OUT1 (Line3)
7 GND (Power, GPIO) 8 GPIO (Line1)
Cable core colors (cable not included in delivery)
1 WH – White 2 BN – Brown
3 GN – Green 4 YE – Yellow
5 GY – Grey 6 PK – Pink
7 BU – Blue 8 RD – Red
USB 3.0 interface (Micro B)
1 2 3 4 5 6 7 8 9 10
1 VBUS 2 D-
3 D+ 4 ID
5 GND 6 MicB_SSTX-
7 MicB_SSTX+ 8 GND_DRAIN
9 MicB_SSRX- 10 MicB_SSRX+
