Baumer VCXG.2 Series - Cooling Channel (VCXG.2.XC Only)

5 | Installation Baumer
32 Operating Manual VCXG.2 / VCXG.2.XC / VCXG.2.I / VCXU.2 | V1.2

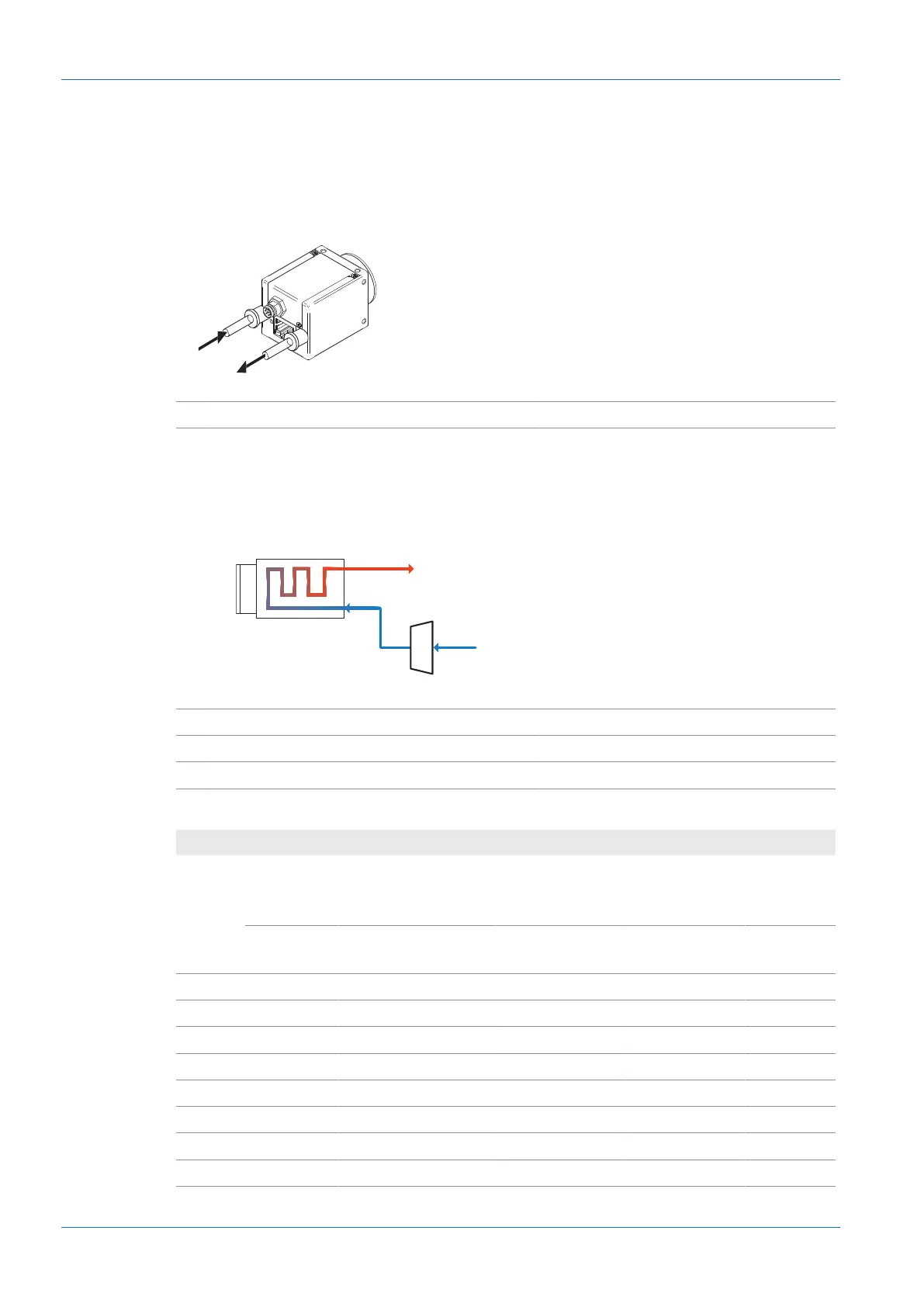

5.4.1 Cooling channel (VCXG.2.XC only)
The camera features a housing-integrated cooling channel. This is to feed compressed air or
tempering fluid for camera temperature control.
For compressed air / tempering fluid connection (inlet (1) / outlet (2)) use male threaded M3
push-in fittings and plastic hoses, e.g. FESTO QSM-M3-3-I and FESTO PUN-H-3x0.5.
1
2
1 Cooling channel (inlet) 2 Cooling channel (outlet)
Cooling with air
The camera was tested with compressed air at 3 bar according to ISO 8573-1:2010 [1:4:2] [Par-
ticle:Water:Oil]. Maximum permitted pressure is 6 bar.
12
3
4
5
1 cold air 2 Compressor
3 Cooling channel (inlet) 4 Cooling channel (outlet)
5 warm air
Compressed air contamination and cleanliness classes (ISO 8573-12010)
Class Particle Water Oil
According to particle size
(maximum total of particles per m³)
According
to mass
Dew point Fluid Fluid,
aerosol and
vapor
0.10 - 0.5
microns
0.5 - 1.0
microns
1.0 - 5.0
microns
mg/m³ °C °F g/m³ mg/m³
0 As specified by user or supplier and more stringent than Class 1
1 ≤ 20,000 ≤ 400 ≤ 10 - ≤ -70 ≤ -94 - ≤ 0.01
2 ≤ 400,000 ≤ 6,000 ≤ 100 - ≤ -40 ≤ -40 - ≤ 0.1
3 - ≤ 90,000 ≤ 1,000 - ≤ -20 ≤ -4 - ≤ 1
4 - - ≤ 10,000 - ≤ +3 ≤ +37 - -
5 - - ≤ 100,000 - ≤ +7 ≤ +45 - -
6 - - - 0 - ≤ 5 ≤ +10 ≤ +50 - -
7 - - - 5 - ≤ 10 - - ≤ 0.5 -
