6.3 VCXG.2.I
6.3.1 Sensor position accuracy

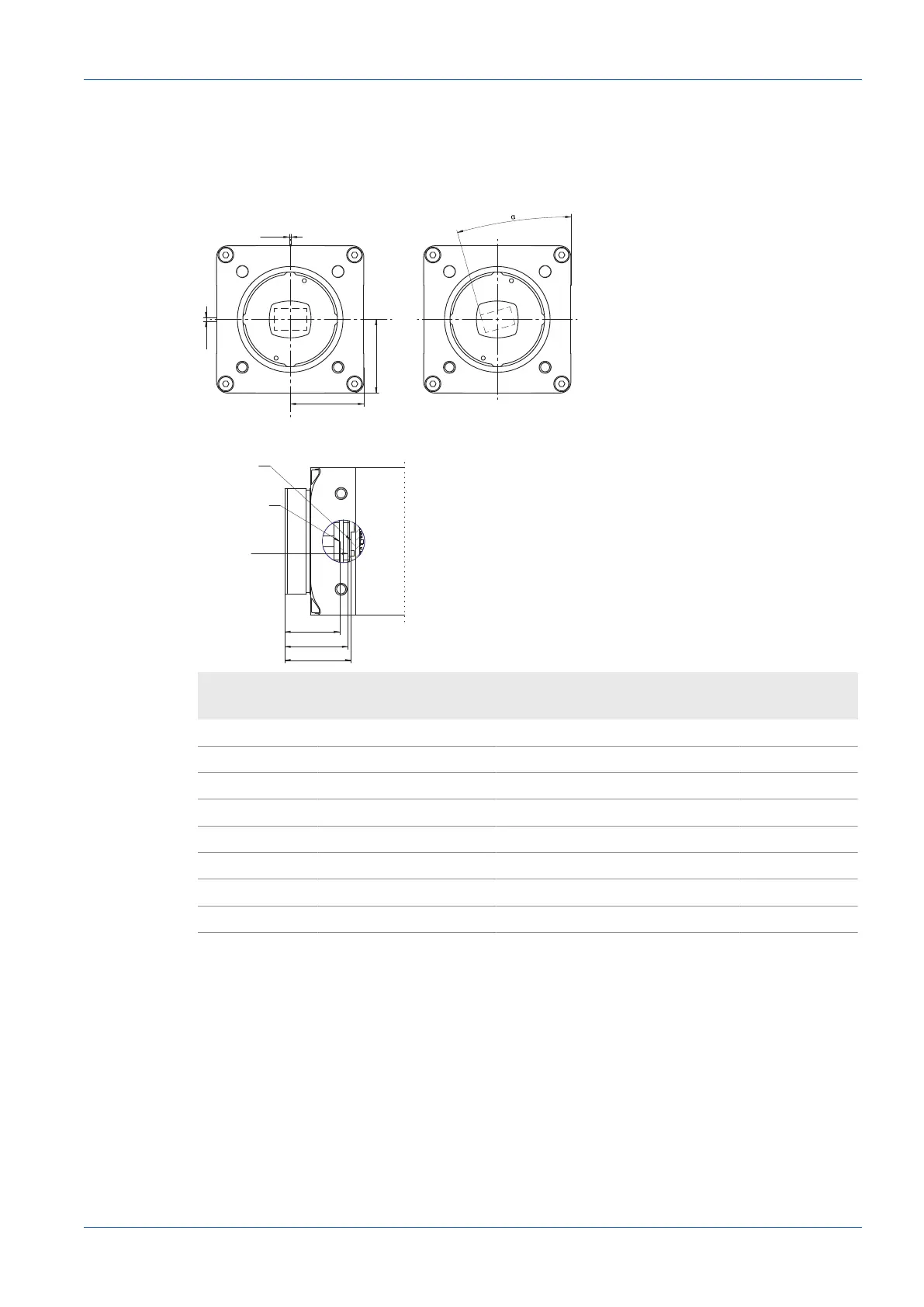

Typical precision under assumption of the average square root value is shown in the figure and
table(s) below.
± YM
± YR
± XR
Z
photosensitive
surface of the
sensor
front filter glass
for color cameras
thickness:
1 ± 0.1 mm
cover glass
of sensor
thickness: D
A
14,5 ± 0,35
± XM
±
Camera type
± xM
[mm]
± yM
[mm]
± xR
[mm]
± YR
[mm]
z***typ
[mm]
± αtyp
[°]
A***
[mm]
D**
[mm]
VCXG.2-15.I* 0.07 0.07 0.07 0.07 17.63 ± 0.070 0.6 16.4 0.70
VCXG.2-32.I* 0.17 0.17 0.17 0.17 17.63 ± 0.070 0.6 16.5 0.70
VCXG.2-51.I* 0.17 0.17 0.17 0.17 17.63 ± 0.070 0.6 16.5 0.70
VCXG.2-57.I* 0.06 0.06 0.06 0.06 17.63 ± 0.070 0.4 16.5 0.50
VCXG.2-82.I* 0.06 0.06 0.06 0.06 17.63 ± 0.070 0.4 15.8 0.50
VCXG.2-127.I* 0.06 0.06 0.06 0.06 17.63 ± 0.070 0.4 15.8 0.50
VCXG.2-201.I* 0.06 0.06 0.06 0.06 17.63 ± 0.070 0.6 15.8 0.50
VCXG.2-241.I* 0.06 0.06 0.06 0.06 17.63 ± 0.070 0.4 15.8 0.50
typical accuracy by assumption of the root mean square value
* C or M
** Dimension D in this table is from manufacturer datasheet
*** For color add 0.35 mm to nominal value
