Event: TriggerOverlapped

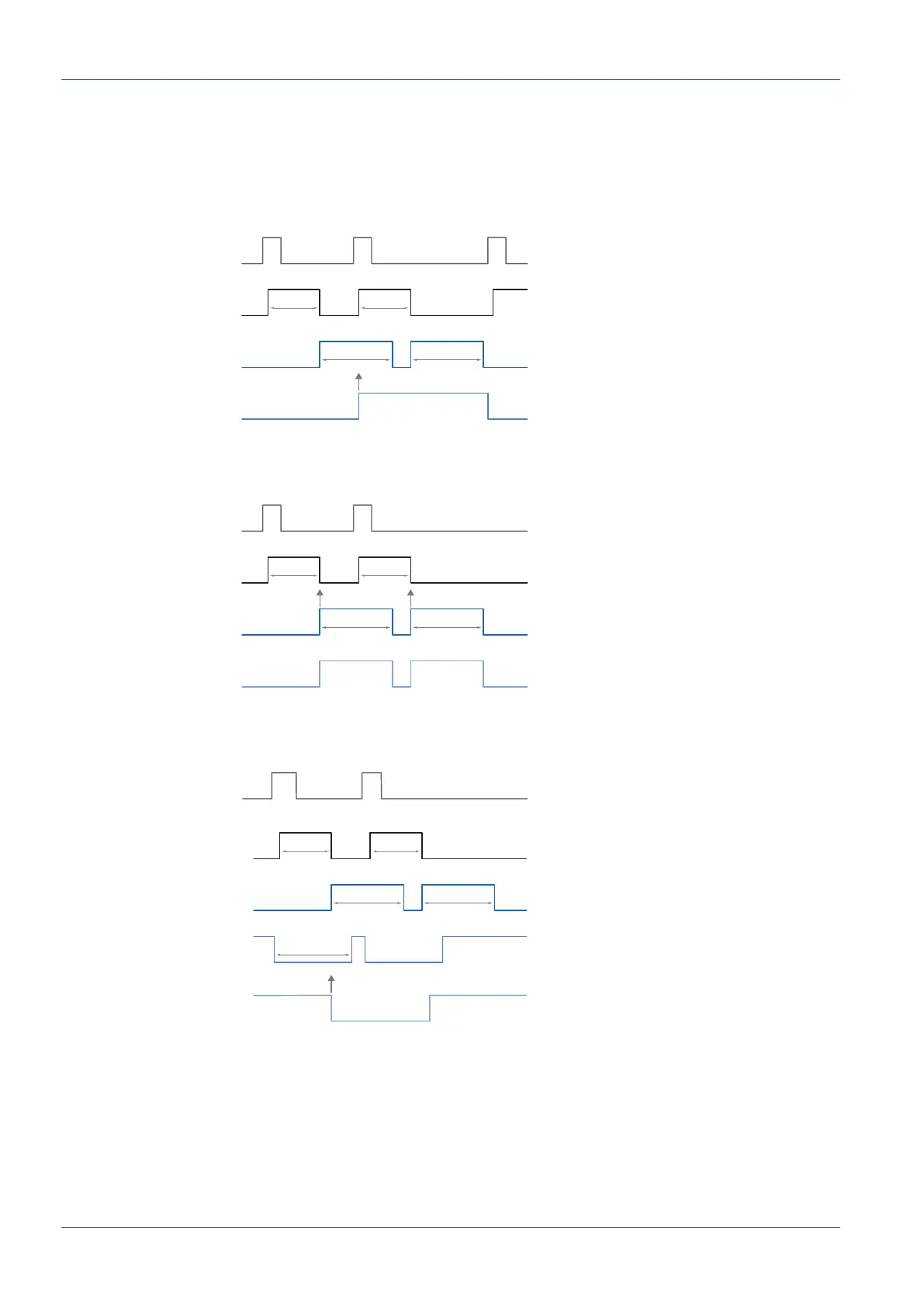

This Event is active as long as the sensor is under exposure with parallel read out, i.e. camera
operation utilizes Overlapped.
A valid trigger signal event outside a sensor readout operation will change the TriggerOver-
lapped signal to Low.
Exposure
Readout
t
exposure(n)
t
readout(n+1)
t
readout(n)
t
exposure(n+1)
Trigger
Trigger
Overlapped
Event: TriggerOverlapped
Event: ReadoutActive
While the sensor is read out, the camera signals this by means of ReadoutActive.
Exposure
Readout
Event: ReadoutActive
t
exposure(n)
t
readout(n+1)
t
readout(n)
t
exposure(n+1)
Trigger
Readout
Active
Event: TransferBufferFull
Event is only output at TriggerMode. It signals that no buffer is available.
Exposure
Readout
t
exposure(n)
t
readout(n+1)
t
readout(n)
t
exposure(n+1)
TriggerReady
t
notready
BufferReady
Event: TransferBufferFull
Trigger
