Baumer GenICam Camera Features | 11
V1.2 | VCXG.2 / VCXG.2.XC / VCXG.2.I / VCXU.2 Operating Manual 153
General Information - Binning (BinningHorizontal / BinningVertical)
On digital cameras, you can find several operations for progressing sensitivity. One of them is
the so-called Binning. Here, the charge carriers of neighboring pixels are aggregated. By using
this operation, the progression in sensitivity is coupled to a reduction in resolution. Higher sensi-
tivity enables shorter exposure times.
Baumer cameras support three types of Binning - vertical, horizontal and bidirectional.
In unidirectional Binning, vertically or horizontally neighboring pixels are clustered and reported
to the software as a single "superpixel".
In bidirectional Binning, a square of neighboring pixels is clustered.
INFO
Deviations in brightness after Binning can be corrected with function Brightness Correction.

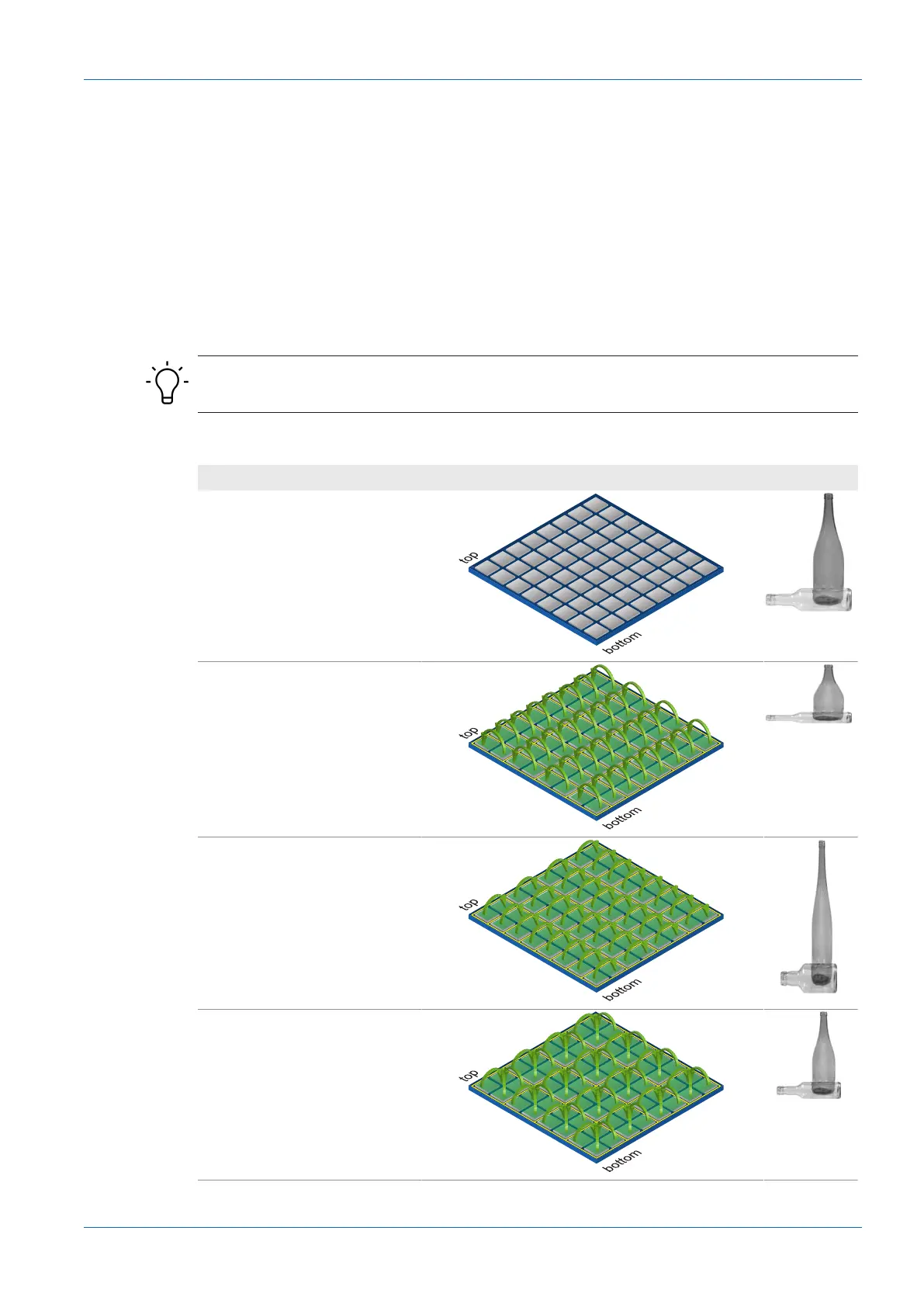

Monochrome Binning
Binning Illustration Output
without
Full frame image, no binning of
pixels.
1x2
Vertical binning causes a verti-
cally compressed image with
doubled brightness.
2x1
Horizontal binning causes a
horizontally compressed image
with doubled brightness.
2x2
Bidirectional binning causes
both a horizontally and verti-
cally compressed image with
quadruple brightness.
