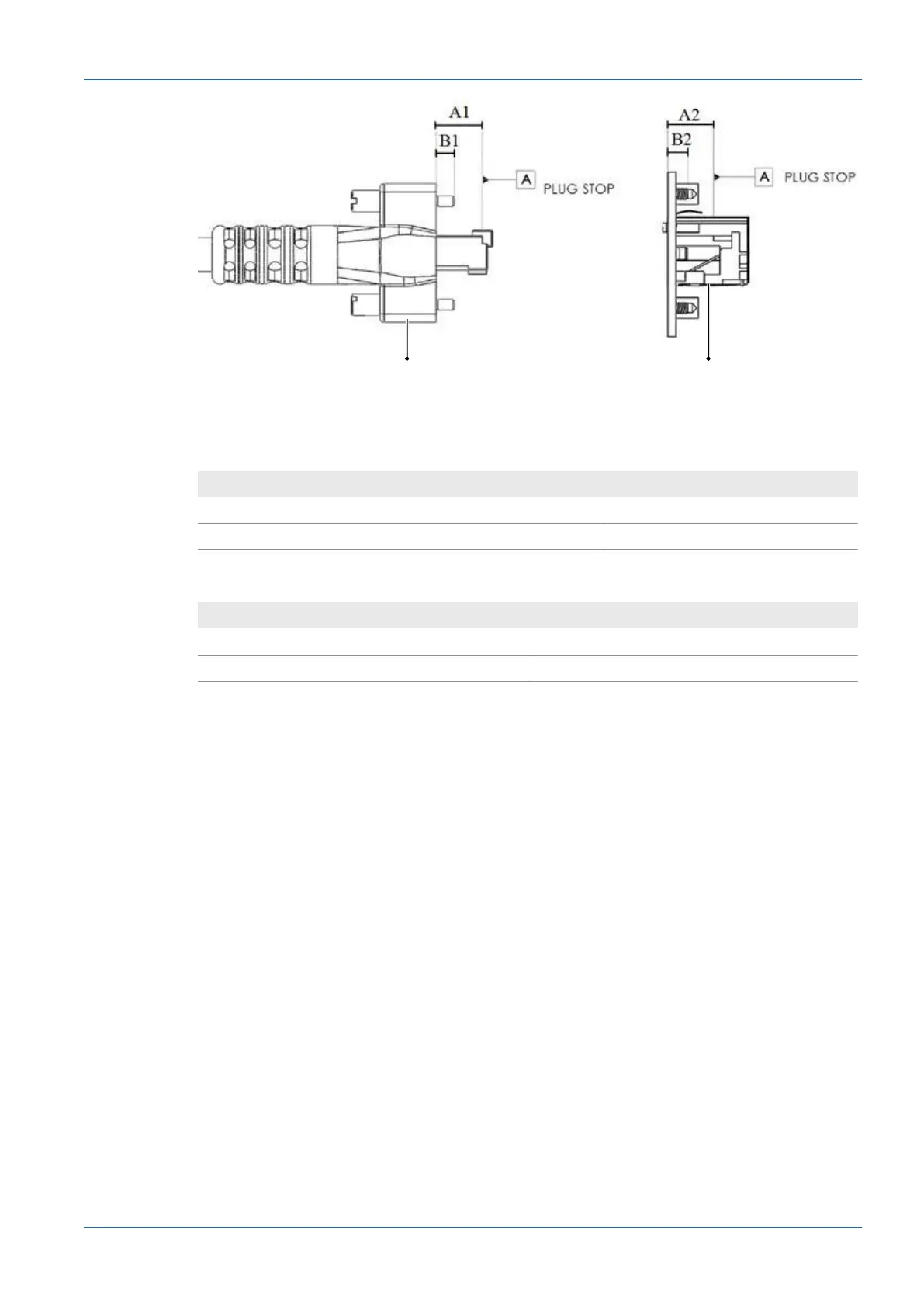

Ground connection (1)
TYPE090 TYPE110 (Do not use!)
A1 9.0 mm (-0.50 + 0.00) 11.0 mm (-0.47 + 0.00)
B1 4.25 mm (-1.00 + 0.25) 4.25 mm (-1.00 + 0.25)
Ground female connector (2)
TYPE090
A2 9.0 mm (-0.00 + 1.00)
B2 4.5 mm (-0.00 + 1)
