Baumer GenICam Camera Features | 11
V1.2 | VCXG.2 / VCXG.2.XC / VCXG.2.I / VCXU.2 Operating Manual 99
AutoFeature ROI – General Information
Function AutoFeature Region of Interest (ROI) is used to define a so-called Region of Interest
ROI. The ROI is a defined range of sensor pixels.
This function is used if only the image data (e.g. brightness) of a particular region of the image
is of interest. The calculated corrections will be applied to the entire image.
AutoFeature ROI is specified by four values:
n
AutoFeatureOffsetX - x-coordinate of the first relevant pixel
n
AutoFeatureOffsetY - y-coordinate of the first relevant pixel
n
AutoFeatureWidth – horizontal size of the region
n
AutoFeatureHeight – vertical size of the region

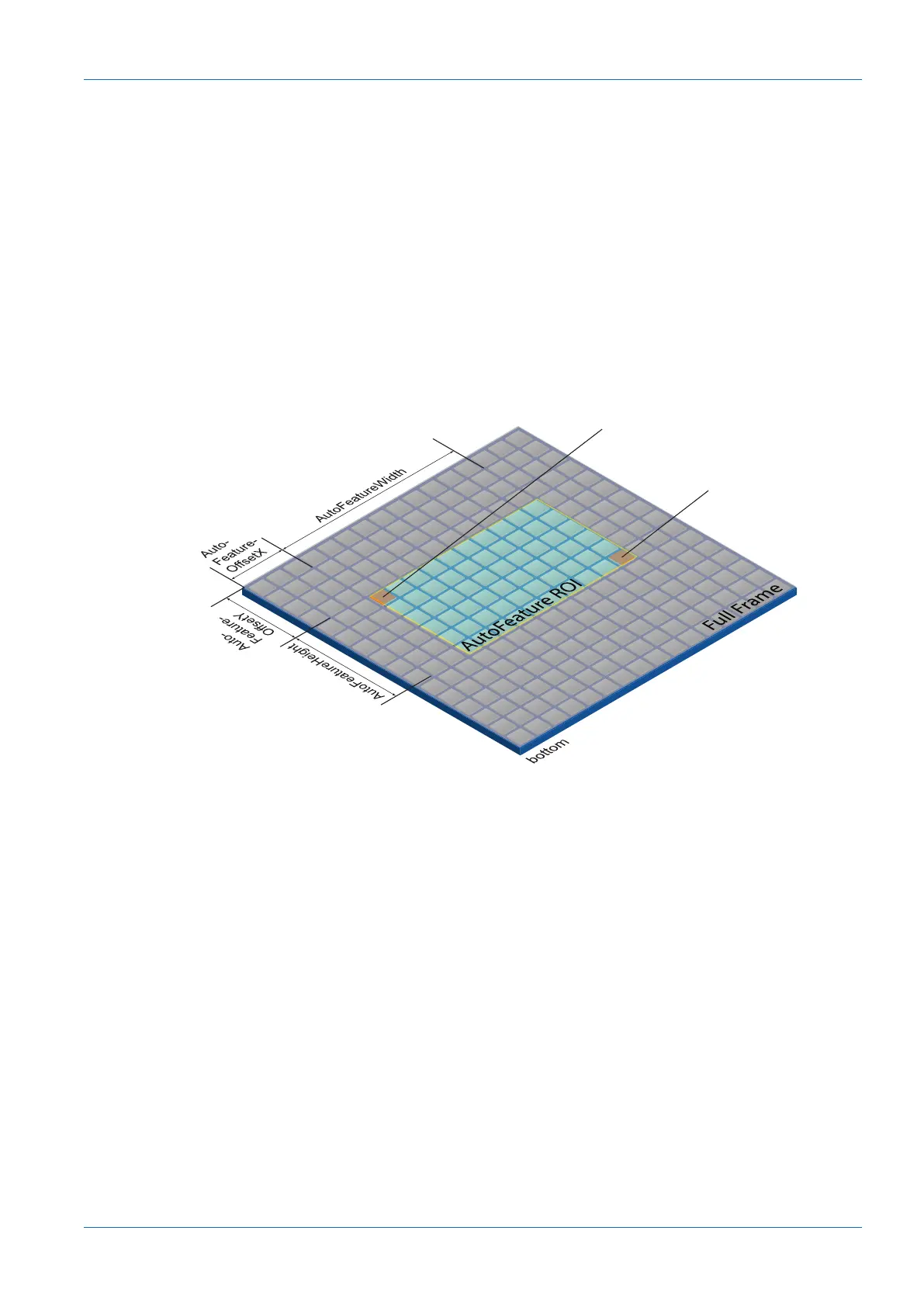

AutoFeature ROI in full frame
Start AutoFeature ROI
End AutoFeature ROI
