RX680R User’s Manual
24

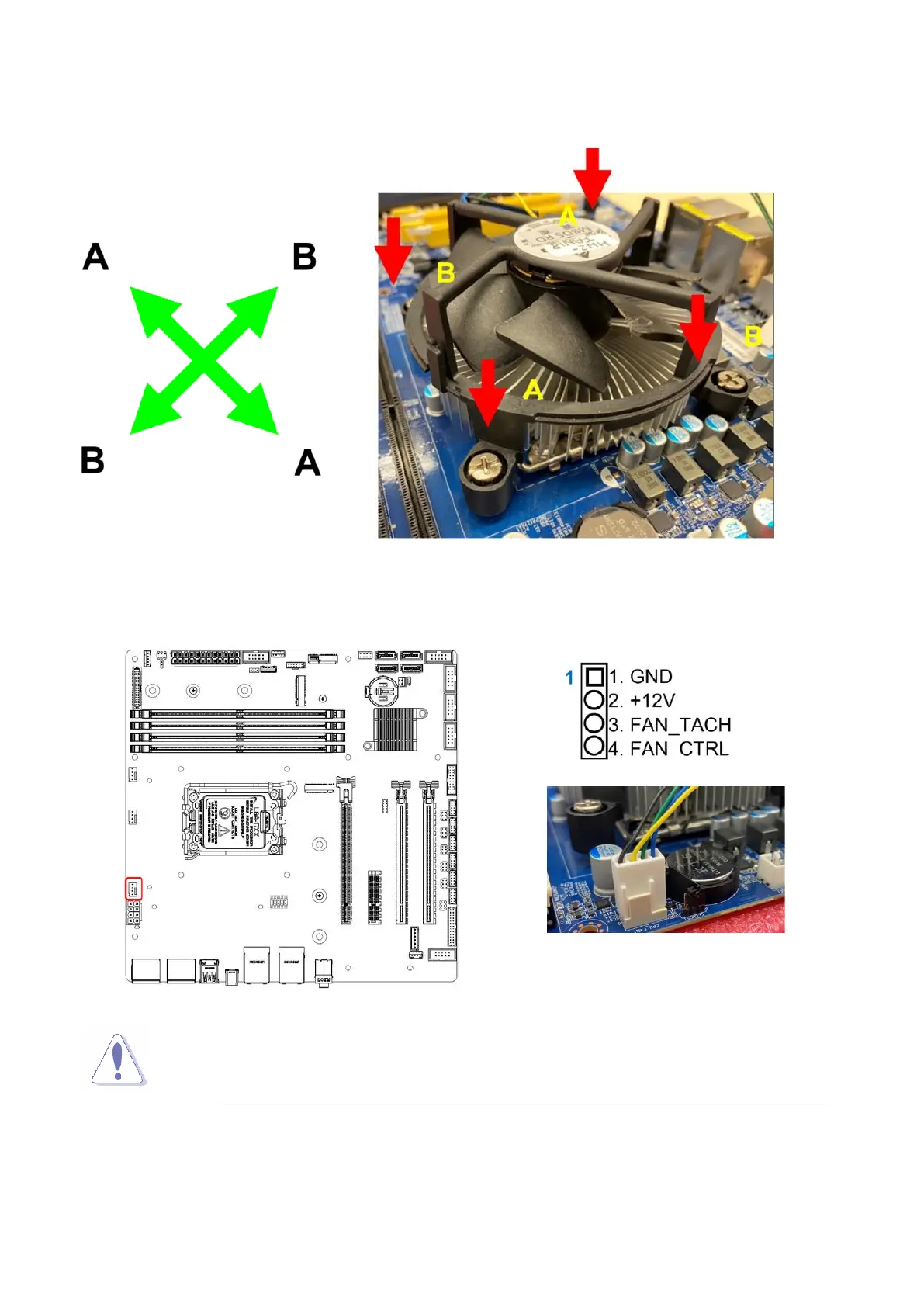

2. Push down or fasten two fasteners at a time in a diagonal sequence to secure the heatsink
and fan assembly in place.
3. Connect the CPU fan cable to the connector on the motherboard labeled CPU_FAN.
Do not forget to connect the fan cables to the fan connectors. Insufficient
air flow inside the system may damage the motherboard components.
These are not jumpers! DO NOT place jumper caps on the fan
connectors.
