BCM RX680R - Serial Port Connectors (COM1~6); Serial ATA Connector (SATA1~4 )

RX680R User’s Manual
36
1.NDCD
3.NTX
5.GND
7.NRTS
9.IRxPWRxJMP

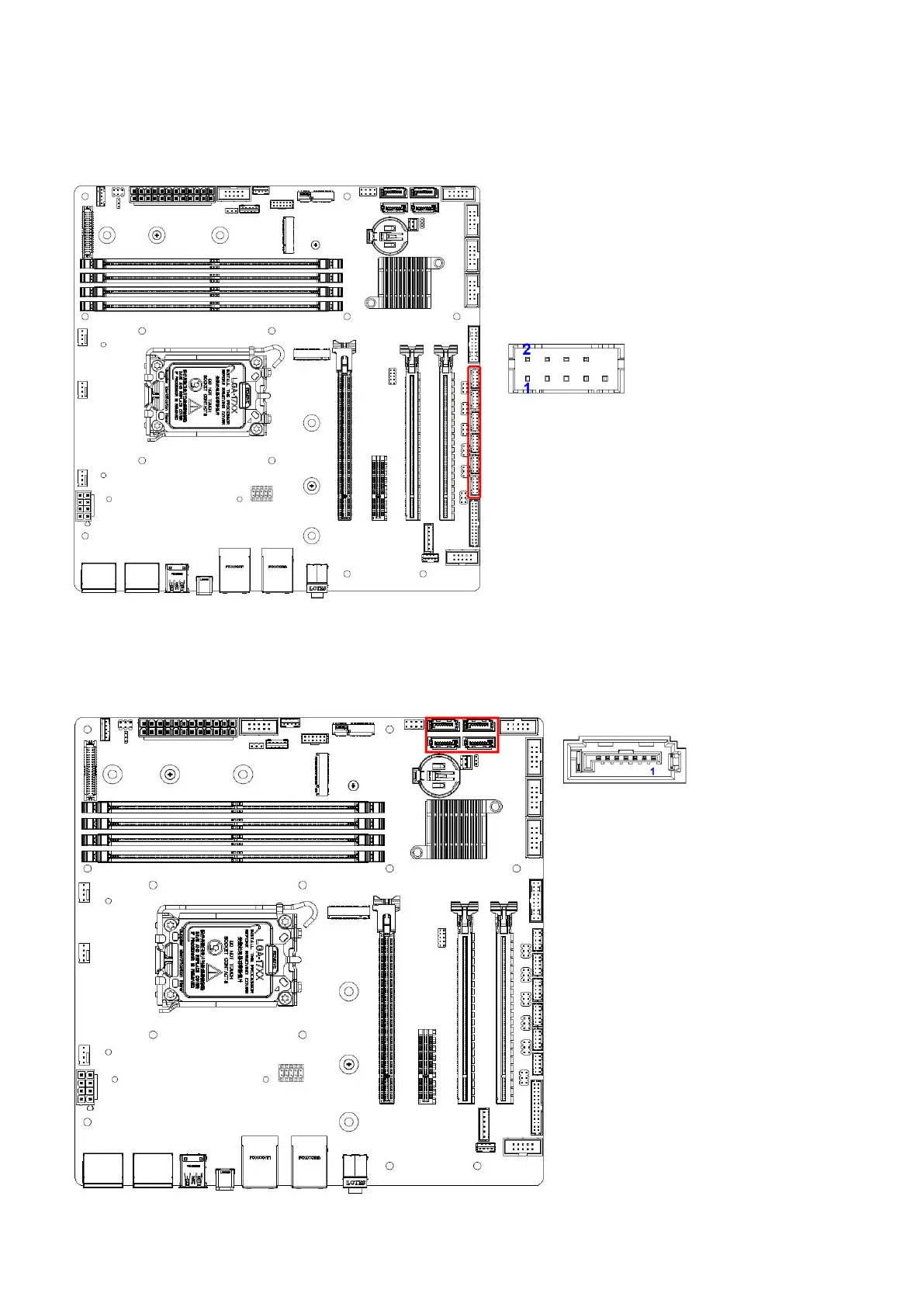

1.7.5 Serial Port connectors (COM1~6)
This connector is for a serial (COM) port. Connect the serial port module cable to this
connector, then install the module to a slot opening at the back of the system chassis.
1.7.6 Serial ATA connectors (SATA1~4 )
SATA 1~4 support SATA III. These connectors are suitable for the SATA signal cables and
connect to Serial ATA devices.
2.NRX
4.NDTR
6.NDSR
8.NCTS
1. GND
2. TX+
3. TX-
4. GND
5. RX-
6. RX+
7. GND
