RX680R User’s Manual
⚫ ATX Power Button/Soft-off Button (Pin 6-8)
This 2-pin connector is for the system power button. Pressing the power button turns
the system on or puts the system in sleep or soft-off mode depending on the BIOS
settings. Pressing the power switch and holding it for more than four seconds while the
system is ON turns the system OFF.
⚫ Reset Button (Pin 5-7)
This 2-pin connector is for the chassis-mounted reset button for system reboot without
turning off the system power.
⚫ Power LED (Pin 2-4)
This 2-pin connector is for the system power LED. Connect the chassis power LED
cable to this connector. The system power LED lights up when you turn on the system
power, and blinks when the system is in sleep mode.
⚫ Hard Disk Drive Activity LED (Pin 1-3)
This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED cable
to this connector. The IDE LED lights up or flashes when data is read from or written to
the HDD.

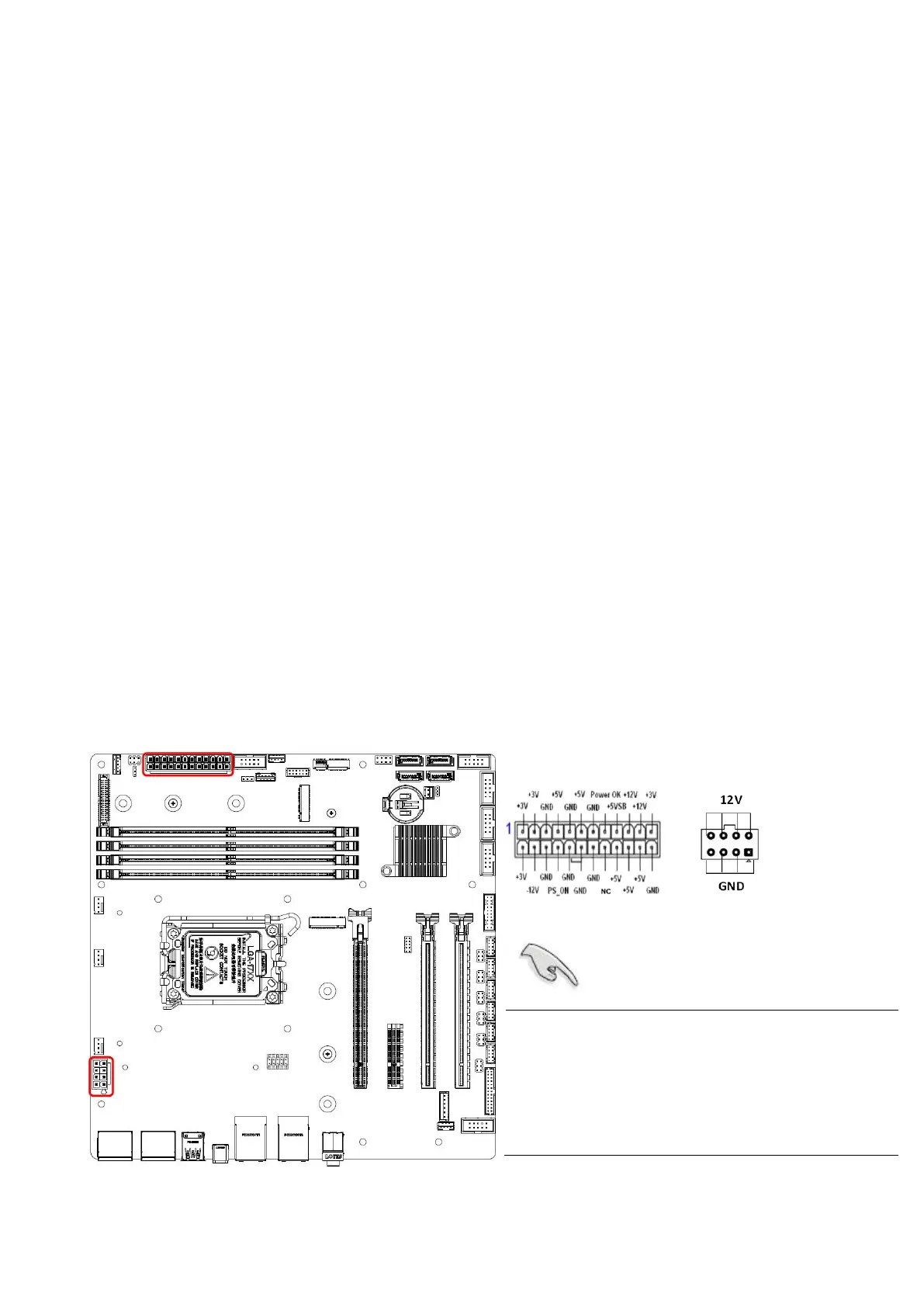

1.7.4 ATX power connectors (ATX24P_1& ATX12V)
The connector is for ATX power supply plugs. The power supply plugs are designed to fit
these connectors in only one orientation. Find the proper orientation and push down firmly
until the connectors completely fit.
Use of a PSU with a higher power output is
recommended when configuring a system with
more power-consuming devices. The system may
become unstable or may not boot up if the power
is inadequate.
Make sure that your power supply unit (PSU) can
provide at least the minimum power required by
your system. See the table below for details.
