RX680R User’s Manual

2. AP_GPIO5

4. AP_GPIO6

6. AP_GPIO7

8. AP_GPIO8

10. SMB_DATA

12. +3V_DUAL

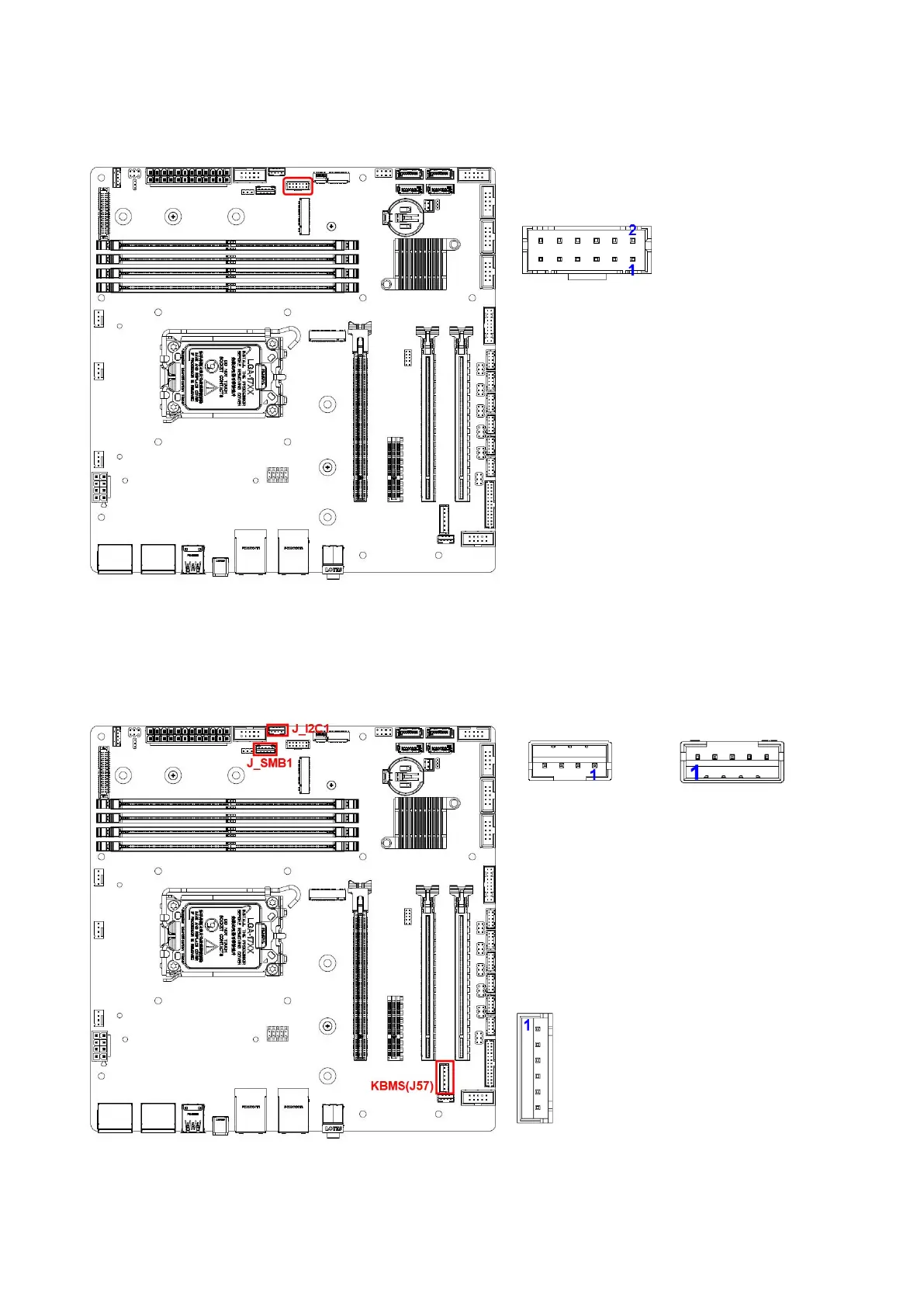

1.7.15 8 bit GPIO header (GPIO_HDR1)

This connector provides a 8 bits input or output for general purpose.

1.7.16 SMBUS/I2C/KMBS connectors (J_SMB1, J_I2C1, J57)

1.+3V_DAUL

2. I2C1_SCL

3. I2C1_SDA

4. GND

1.SMB_CLK

2.SMB_DATA

3.SMB_ALERT

4.GND

5.+3.3V

1. KCLK

2. KDAT

3. MDAT

4. GND

5. +5V_DUAL

6. MCLK

1. AP_GPIO1

3. AP_GPIO2

5. AP_GPIO3

7. AP_GPIO4

9. SMB_CLK

11. GND
