RX680R User’s Manual

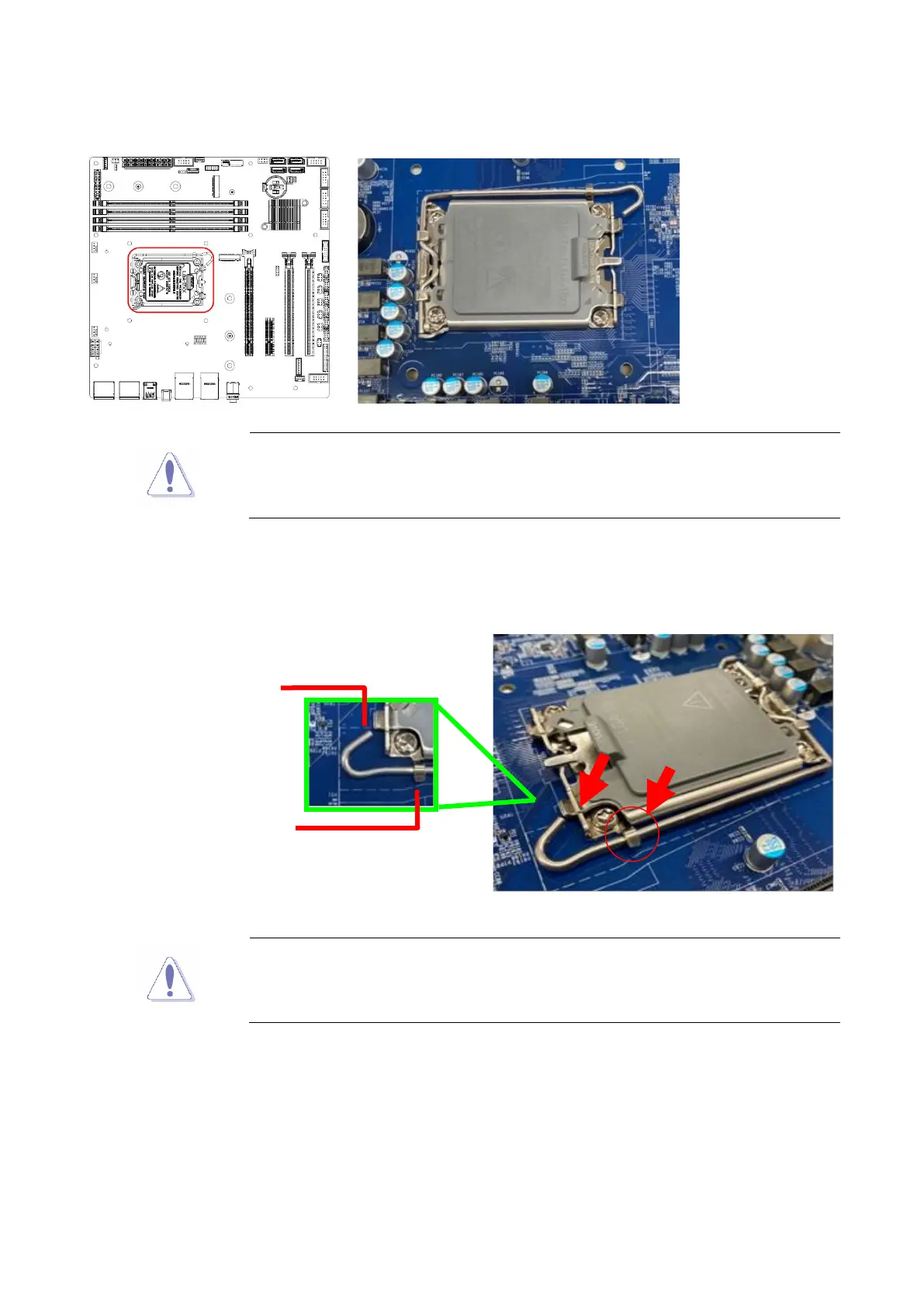

1.3.1 Installing the CPU
1. Locate the CPU socket on the motherboard.
Before installing the CPU, make sure that the socket box is facing
towards you and the load lever is on your left.
2. Press the load lever with your thumb (A), then move it to the left (B) until it is released
from the retention tab.
To prevent damage to the socket pins, do not remove the PnP cap
unless you are installing a CPU.
3. Lift the Load lever with your thumb and forefinger to around 120º angle (C), then pull the
PnP cap from the CPU socket to remove (D).
To Next Page
