RX680R User’s Manual
40

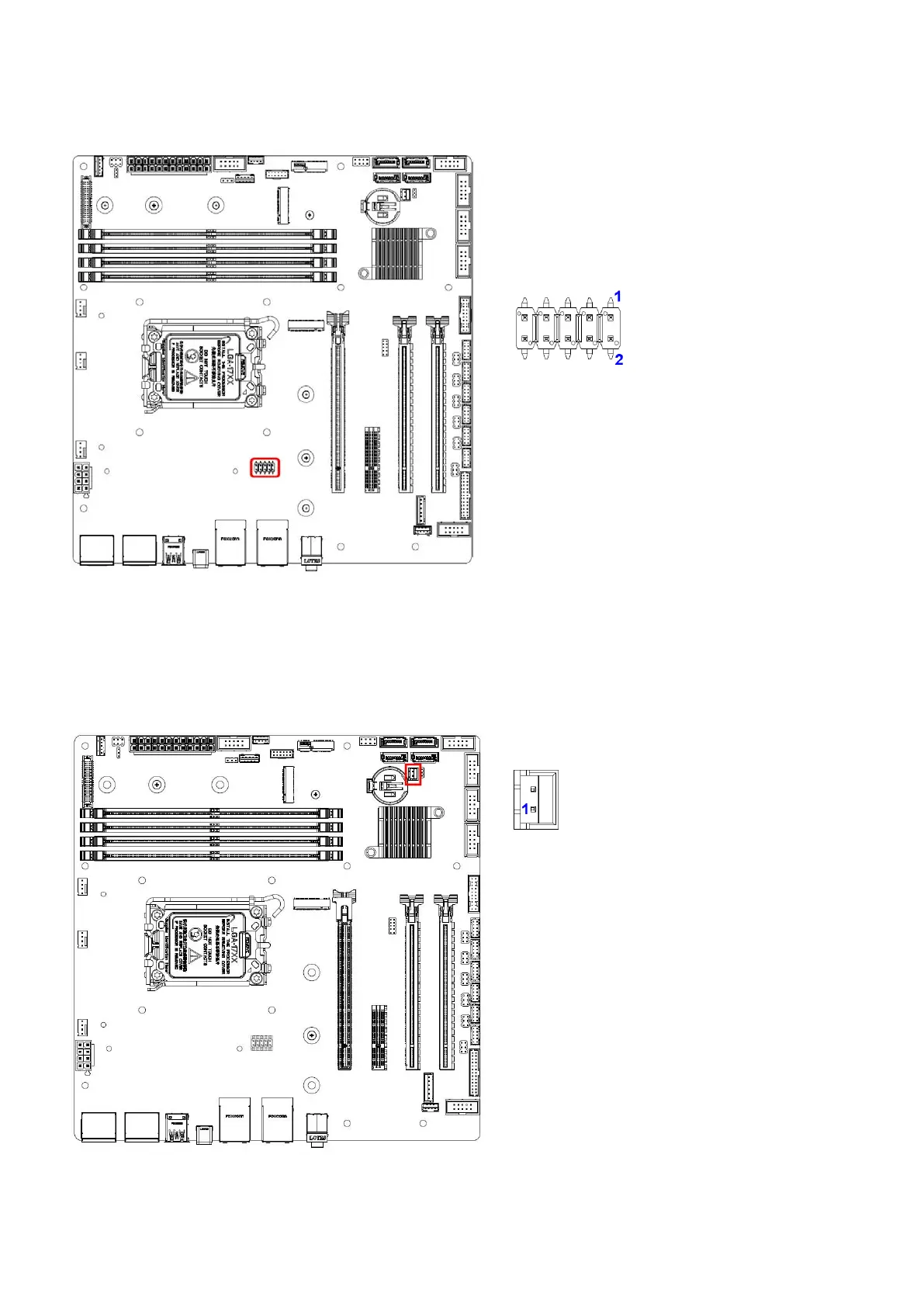

1.7.13 LAN LED status connector (LAN_LED1)
1.7.14 Chassis intrusion connector (INTRUD1)
This connector allow user to connect a sensor in system case. Once the chassis is opened,
system will alert user or administrator.
1. 1G_LAN1_LED
3. GND
5. 2.5G_LAN1_LED
7. GND
9. LAN1_ACT
2. 1G_LAN2_LED
4. GND
6. 2.5G_LAN2_LED
8. GND
10. LAN2_ACT
1. PCH_INTRUDER#
2. GND
