RX680R User’s Manual
32

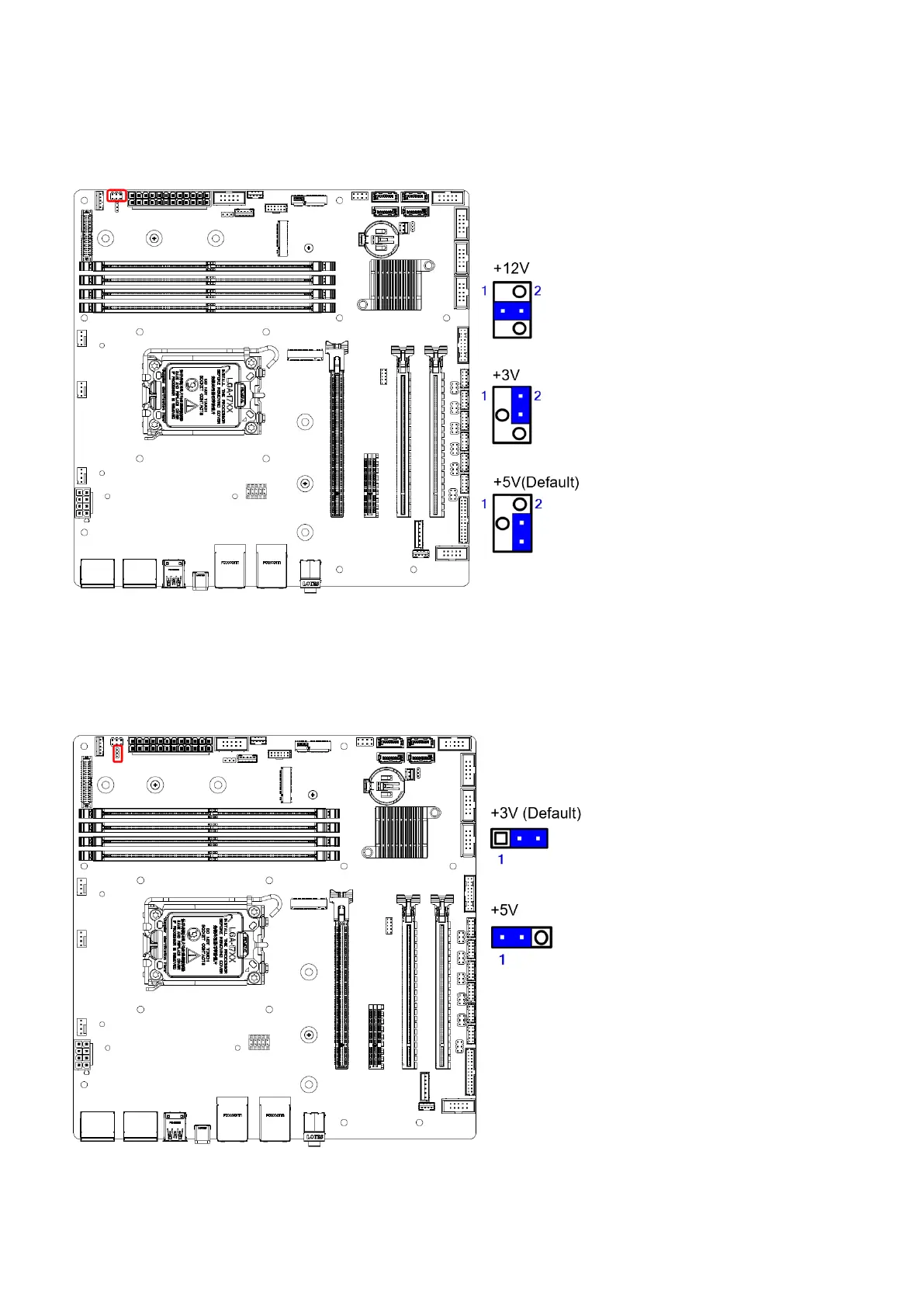

1.6.4 LVDS Panel Power Select (PANEL_SEL1)
This jumper allows you to select the LVDS Panel’s power.
1.6.5 LVDS Blacklight Voltage Selection (BKLVOL1)
This jumper allows you to select the LVDS’s Blacklight power.
