BCM RX680R - LVDS Connector (LVDS1); LVDS Backlight Connector (BKLT1)

RX680R User’s Manual
39

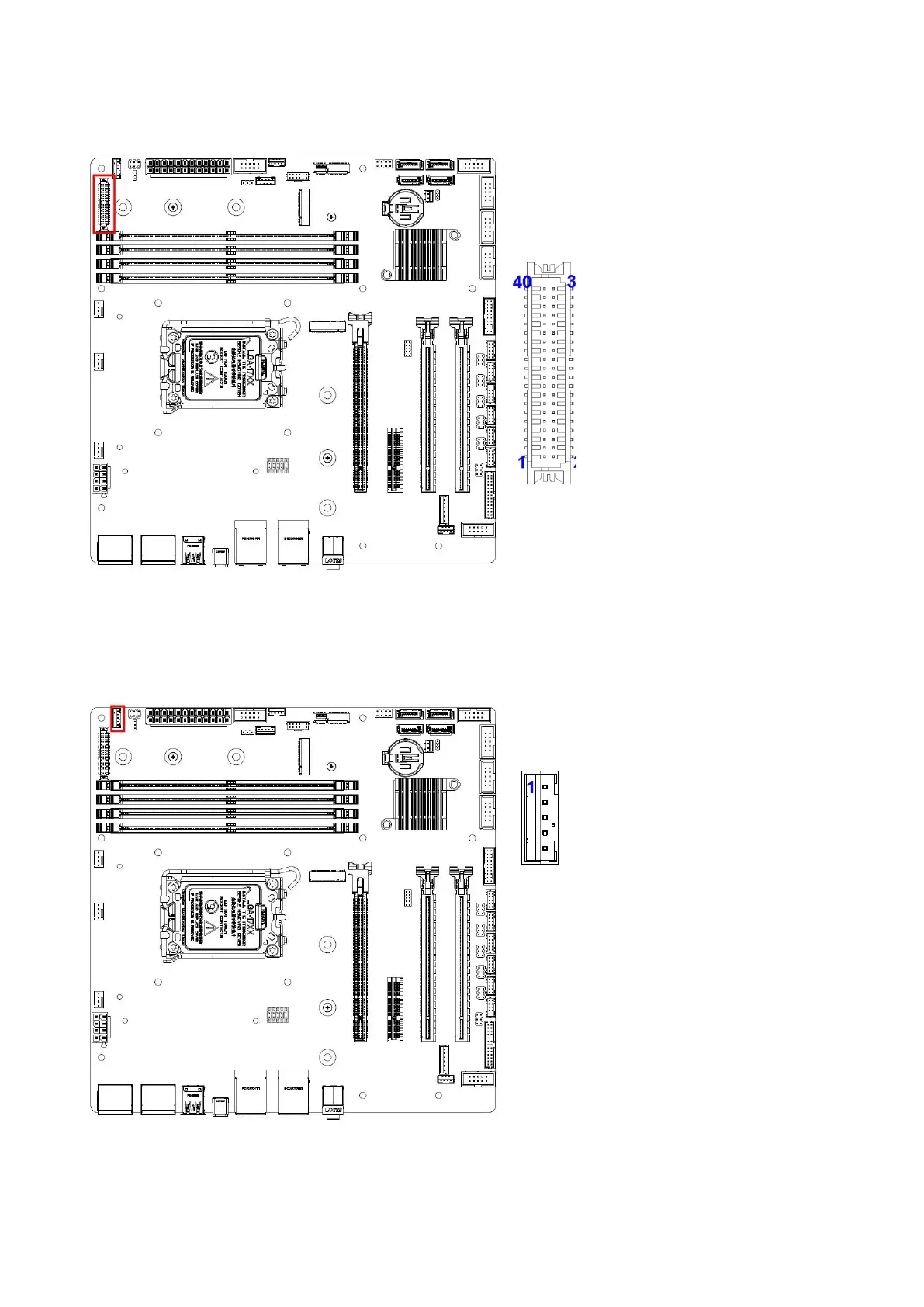

1.7.11 LVDS connector (LVDS1)
The PANEL_PWR which select from PANEL_SEL1 jumper and default (+5V).
1.7.12 LVDS Backlight connector (BKLT1)
1. +3V
3. +3V
5. LS_SCL
7. CABLE_ID1
9. LS0_L1_D+
11. LS0_L1_D-
13. GND
15. LS0_L3_D+
17. LS0_L3_D-
19. GND
21. LS1_L1_D+
23. LS1_L1_D-
25. GND
27. LS1_L3_D+
29. LS1_L3_D-
31. GND
33. LS1_CLK_D+
35. LS1_CLK_D-
37. GND
39. BKLT_+12V
2. +5V (PANEL_PWR)
4. +5V (PANEL_PWR)
6. LS_SDA
8.GND
10. LS0_L0_D+
12. LS0_L0_D-
14.GND
16. LS0_L2_D+
18. LS0_L2_D-
20.GND
22. LS1_L0_D+
24. LS1_L0_D-
26.GND
28. LS1_L2_D+
30. LS1_L2_D-
32.GND
34. LS0_CLK_D+
36. LS0_CLK_D-
38.GND
40. BKLT_+12V
1.+12V_BL
2.GND
3.BKLT_EN
4.BKLT_PWM
5.+5V_BL
