General Description
Short Description
16 Transceiver Family 620X DV14307.03 Issue 04 March 2016
RCU6201 Remote Control Unit
Part Number Article No 8.33 kHz Mode 25 kHz Mode Transmit PWR
RCU6201-(112) 0631.485-910 no yes N/A
AR6203 Single Block Transceiver
Part Number Article No 8.33 kHz Mode 25 kHz Mode Transmit PWR
AR6203-(012) 0630.993-910 yes yes
10 W @ 28 V
AR6203-(022) 0636.371-910 yes yes
6 W @ 28 V
AR6203-(112) 0631.566-910 no yes
≥ 6 W @ 14 V /
10 W @ 28 V
AR6203-(122) 0636.398-910 no yes
6 W @ 28 V
1.4.1. Software Status
Description see "Software/Firmware Status – Functionality", page 35.
1.5. Short Description
For a "Side by Side" seat configuration, the following combinations apply:
• AR6201 or AR6203 Single Block Transceiver.
• RT6201 Remote Transceiver with Remote Control Unit (RCU6201).
For a "Tandem" seat configuration, the following combinations apply:
• AR6201 or AR6203 Single Block Transceiver with additional Remote Control Unit (RCU6201).
• RT6201 Remote Transceiver with Remote Control Unit (RCU6201) and additional second
Remote Control Unit (RCU6201).
In tandem configuration two controllers and one transceiver are connected. Tandem configuration is
useful for training purposes where pilot and student have their own controller with full-synchronized
views or as separate controllers for pilot and co-pilot.
1.5.1. AR6201 Single Block Transceiver
The AR6201 is a compact and lightweight unit designed for operation in a cockpit environment for both
general aviation aircraft and helicopters. All controls and indicators are located on the front panel.
The equipment connectors and the antenna socket are located at the rear of the unit.
Installation via four screws (rear panel installation). The dimensions correspond to the standard
instrument diameter of 58 mm (2¼ inch).

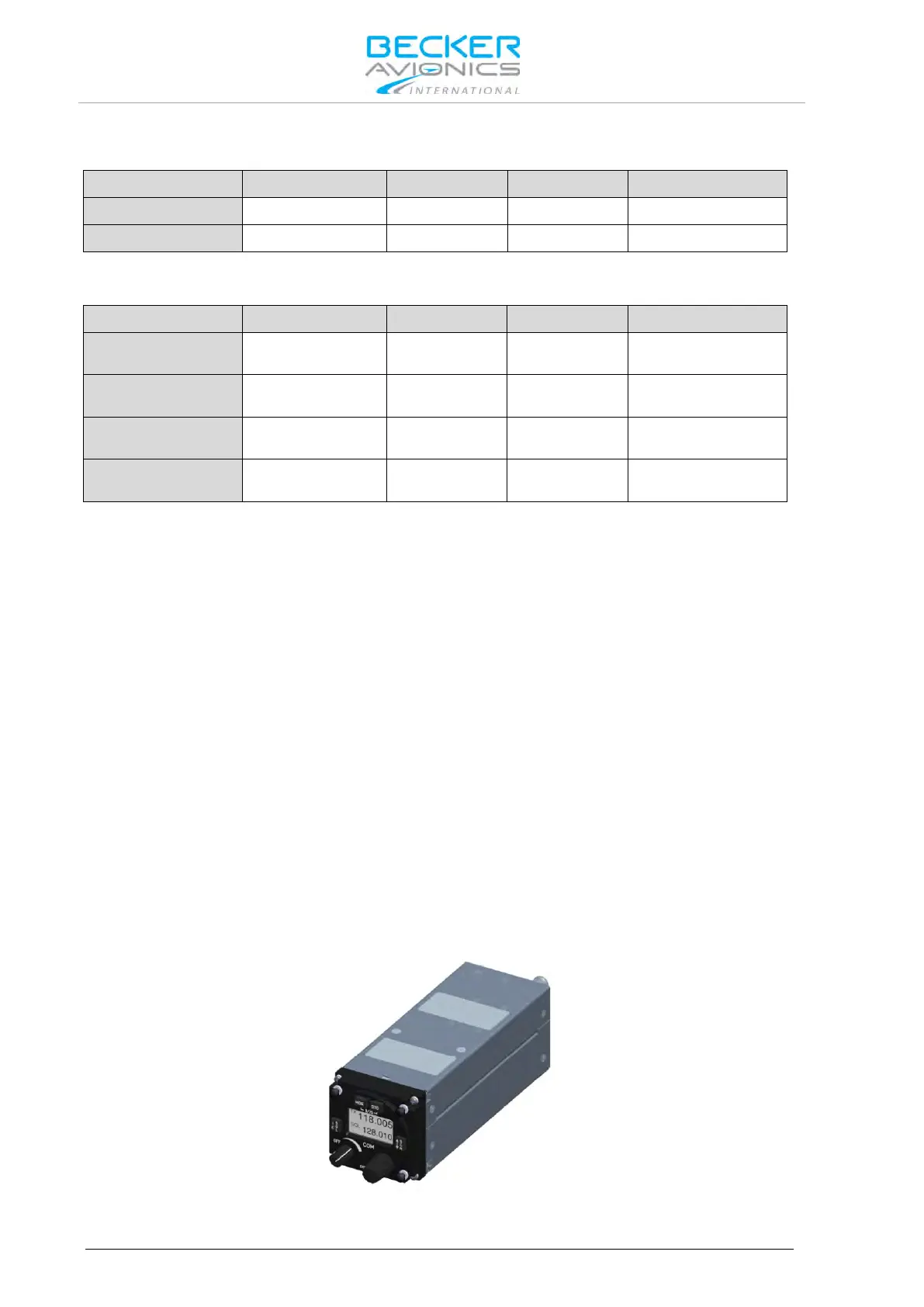

Figure 1-1: AR6201 Single Block Transceiver
