Installation
Mechanical Installation
DV14307.03 Issue 04 March 2016 Transceiver Family 620X 39
2.4.2. AR6203 Installation
Install AR6203 in the aircraft instrument panel within easy view and reach of pilot/operator. The
location for AR6203 installation shall be at least 30 cm away from the aircraft magnetic compass, to
avoid any interference to the magnetic compass caused by the transceiver. Leave a clearance of
minimum 5 mm between the AR6203 and other avionics to allow air circulation. Forced cooling is
usually not required.
For installation of the AR6203 use the designated mounting kit MK6403-1.
• Secure the mounting tray in the aircraft by using the 6 holes located on both sides of the
frame, marked in the Figure with letter "C". Countersunk screws are included in the
MK6403-1 kit.
• Slide AR6203 into the mounting tray all the way in, thereafter use an Allen wrench (3/32")
to tightening the unit to its final position.

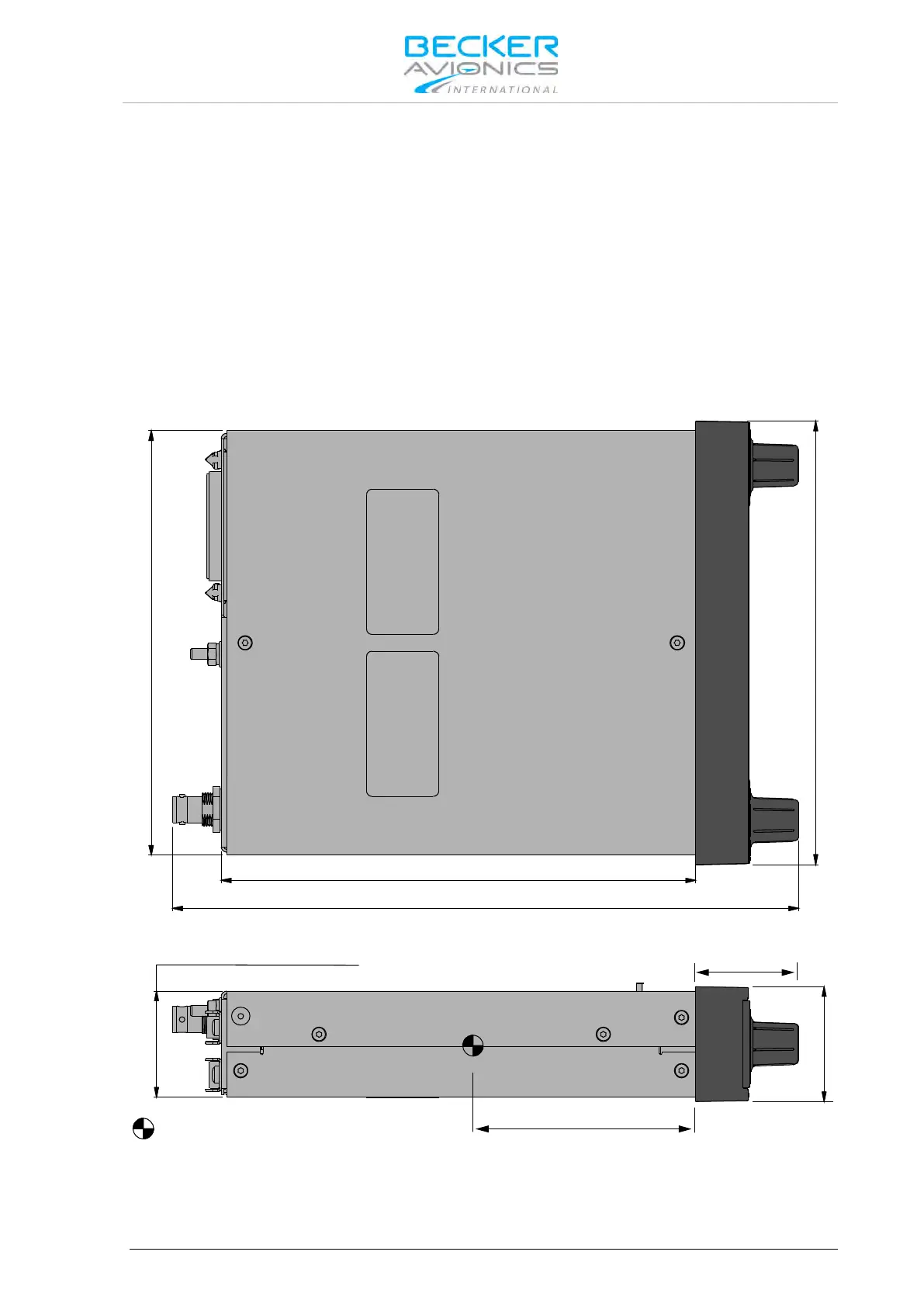

Dimensions mm (inch)
CENTER OF GRAVITY
152±0.3 (5.984 in ±0.011)
38±0.3 (1.5 in ±0.012) 36.7(1.453 in)
80 (3.149 in)
CG
158.8 (6.25 in)
41.2
(1.62 in)
170.1±0.8 (6.697 in ±0.031)
224.4±1.5 (8.83 in ±0.06)
Figure 2-6: AR6203 top view, side view
