General Description
Short Description
DV14307.03 Issue 04 March 2016 Transceiver Family 620X 17
1.5.2. RT6201 Remote Transceiver
The RT6201 is a compact and lightweight single block unit in rectangular shape that contains a
VHF transceiver. The RT6201 requires a dedicated Remote Control Unit RCU6201 or a third party
controller, e.g. a Multi Function Display (MFD), by means of the Becker proprietary protocol.
Installation via four screws using the attached mounting equipment. The dimensions correspond to the
standard instrument diameter of 58 mm (2¼ inch). To meet the conditions for certification use the
mounting method with mounting kit MK6201-(010).

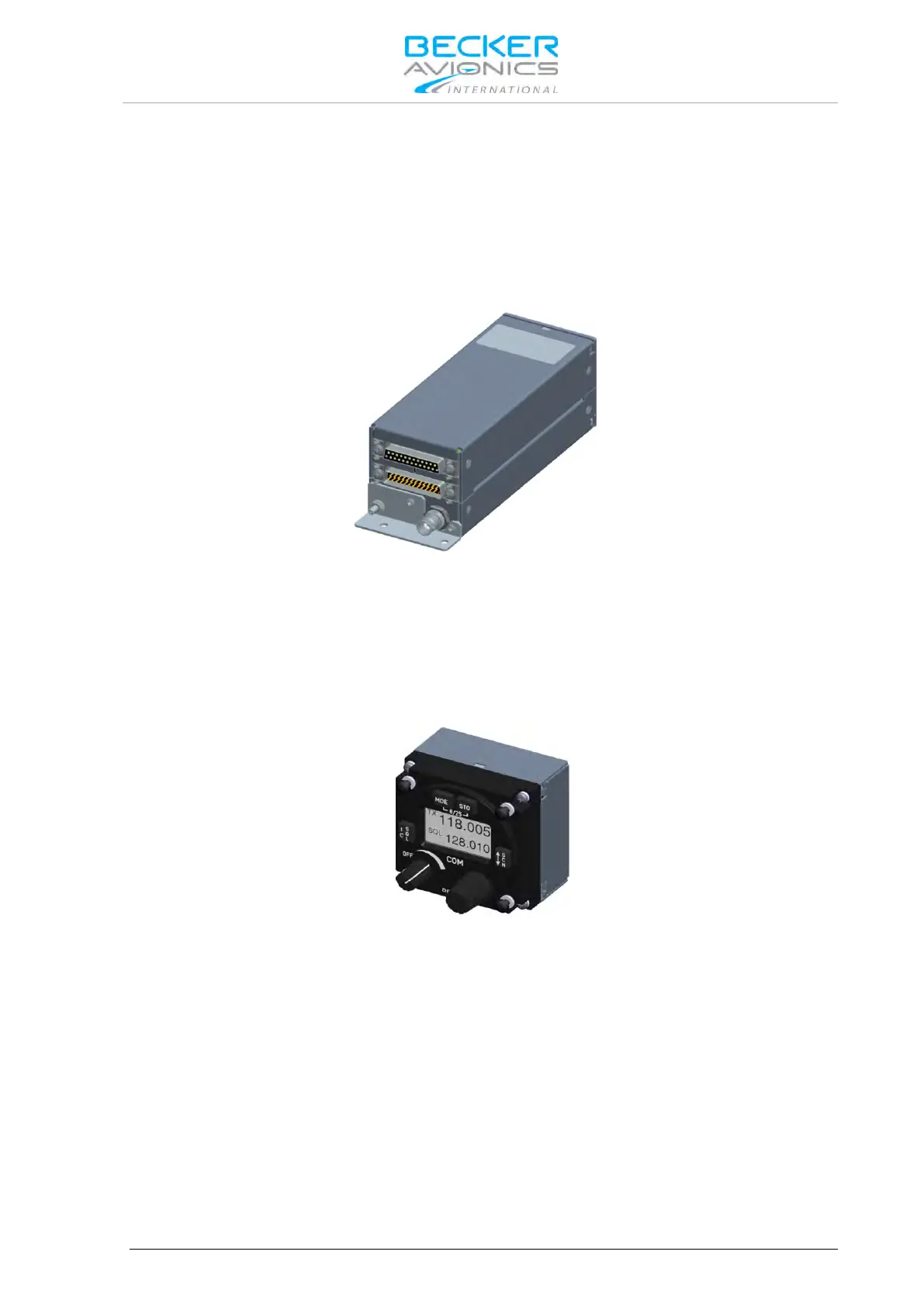

Figure 1-2: RT6201 Single Block Remote Transceiver
1.5.3. RCU6201 Remote Control Unit
The RCU6201 is a compact and lightweight unit. All controls and indicators are located on the front
panel. The equipment connectors are located at the rear of the unit.
Installation via four screws (rear panel installation). The dimensions correspond to the standard
instrument diameter of 58 mm (2¼ inch).
Figure 1-3: RCU6201 Remote Control Unit
