Installation
Wiring Diagrams and Settings
70 Transceiver Family 620X DV14307.03 Issue 04 March 2016

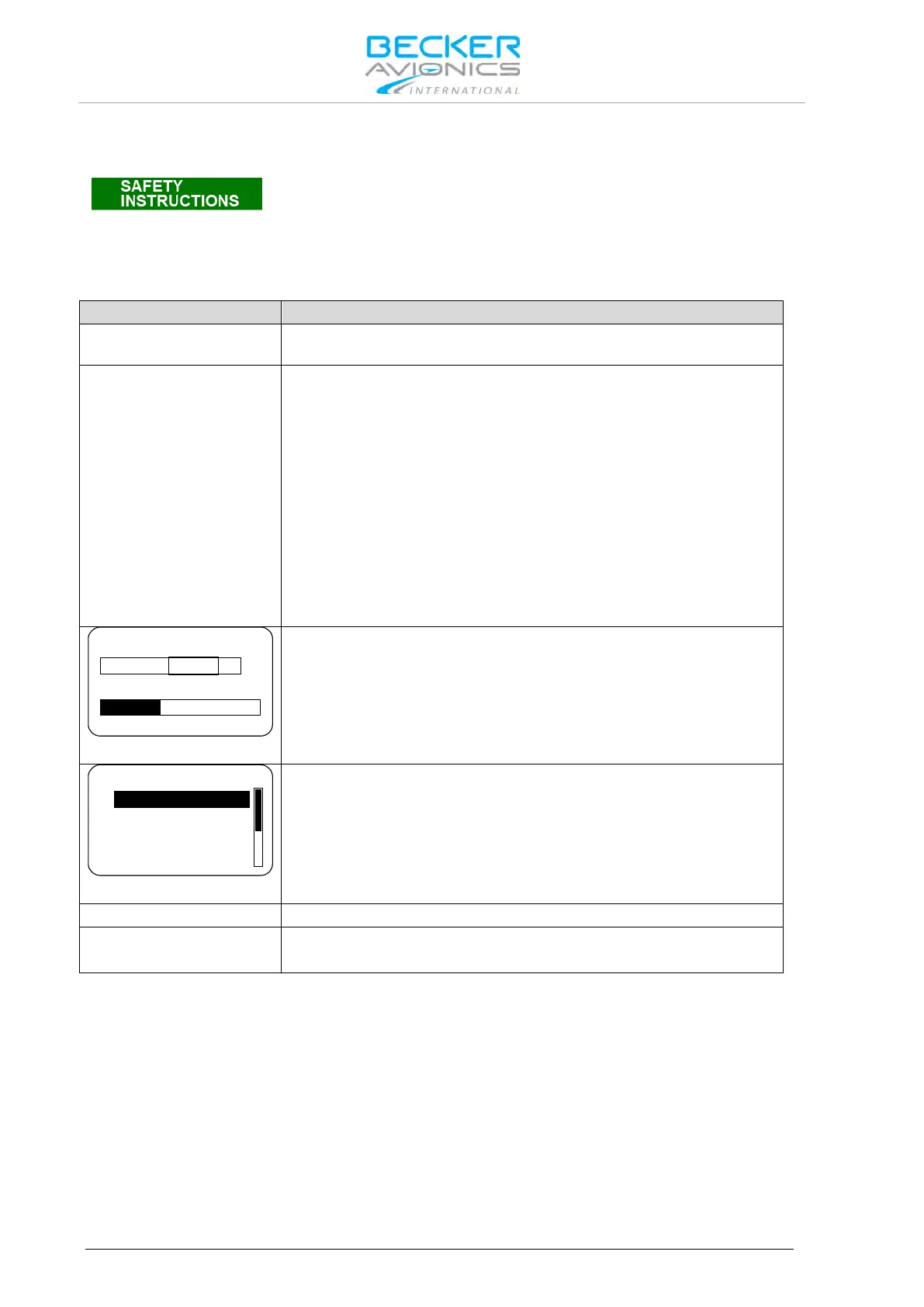

2.10. Wiring Diagrams and Settings
Installation of the unit varies according to aircraft and equipment
design. It is therefore only possible to provide general guidelines in this
section.
2.10.1. Single Seat Glider
2.10.1.1. Configuration Setup
Sub-Menu
Function: / Selection
"SPKR VOLUME
SOURCE
PRIMARY CH
"IN/OUT CFG1":
"MICROPHONE 1": NONE
"MICROPHONE 2": DYN_MIKE
"BOTH MIKES": Enabled
"HEADPHONE 1": Enabled
"SPEAKER": Enabled
With /MIKE_SW not connected (/MIKE_SW input is set to Inactive
state) it is only necessary to configure IN/OUT CFG1.
If only headphone(s) are used, SPEAKER can be disabled by
selecting NONE.
If only speaker is used, disable HDPH 1.
17 dB 3.5 mV
VU
DYN MIKE SENS
Adjust DYN MIKE SENS to proper level
 TANDEM
 AUX INPUT
 AUX AUTO MUTE
 AUTO ISOL IN TX
CONFIGURATION
If you want to use an auxiliary input we recommend to configure
AUX AUTO MUTE In CONFIG menu set:
AUX IN – ENABLE
AUX AUTO MUTE - ENABLE
"IN/OUT FG2"
N/A
Remarks
Permanent speaker sign is visible on LCD screen.
VOX operation suppressed.
