Installation
Mechanical Installation
38 Transceiver Family 620X DV14307.03 Issue 04 March 2016
Dimensions mm (inch)
CENTER OF GRAVITY
61 (2.4 in)
28.5±3 (1.12 in)
16.4 ±0.5
(0.65 in ±0.02)
205.7 ±1.5 (8.098 in ±0.059)
CG
168.4 ±0.8 (6.63 in ±0.031)
72.6 ±5
(2.86 in ±0.2)
CG
17.9 ±0.4
(0.70 in ±0.016)
34.4±3 (1.35 in ±0.12)

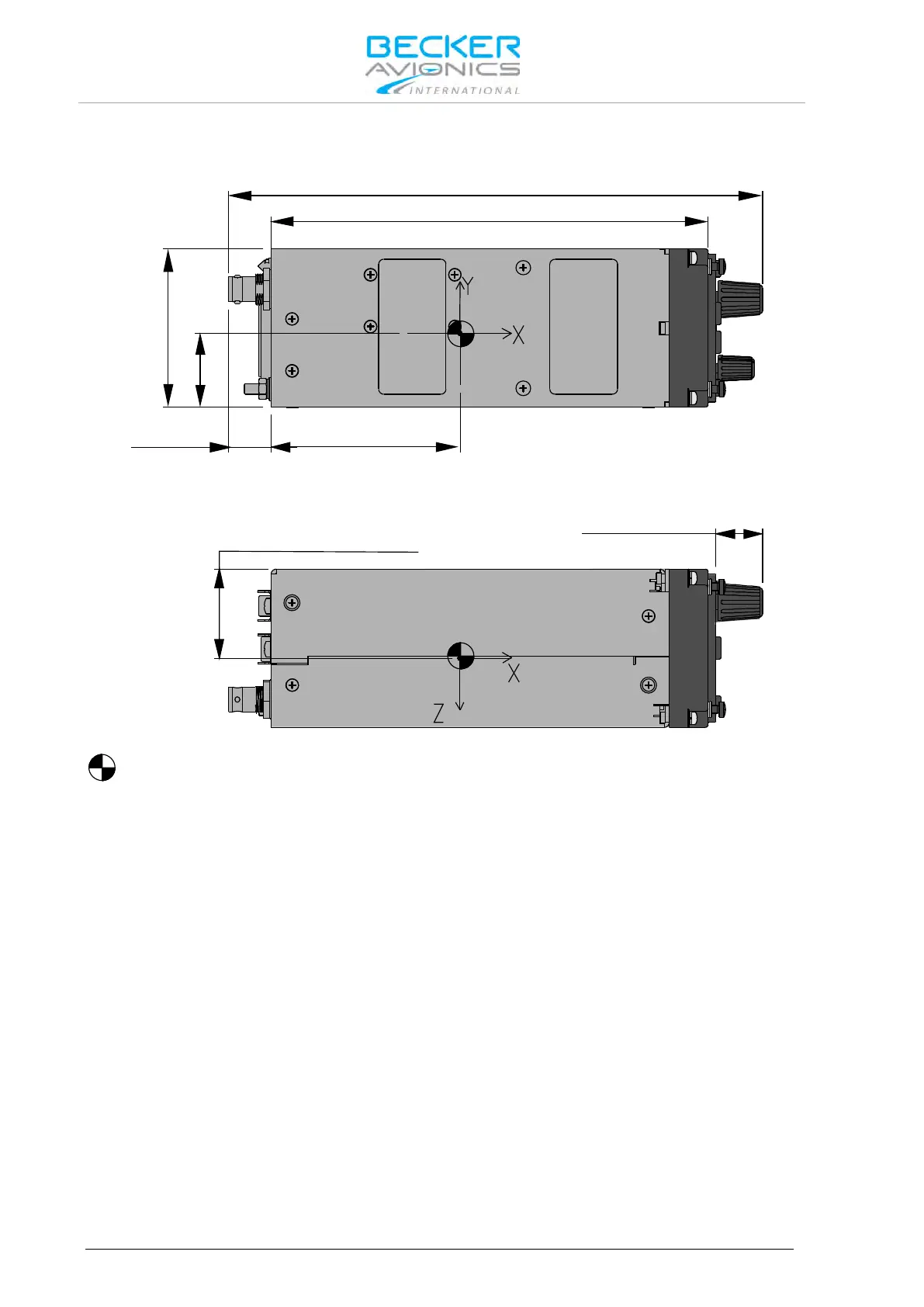

Figure 2-5: AR6201 top view, side view
