Modular Chemistry (MC) System
Reagent Bar Code Reader (Modular)
System Description UniCel DxC Systems Instructions For Use A13914
Page 2-14 October 2005
Reagent Bar Code Reader (Modular)
Behind the left side door of the system there is a hand-held bar code reader. (Refer to
Figure 2.6.)
When this reader is held up to the label of one of the modular reagents and the trigger
is pressed, the identity of the reagent, the lot number and reagent volume are
automatically entered into the reagent load screen.
Ratio Pump
The Ratio Pump is a motor-driven, multicylinder, positive-displacement pump used to
deliver the necessary reagents to the ISE flow cell. (Refer to Figure 2.7.) It consists of
a three-step piston housed in three, stacked, independent cylinders.

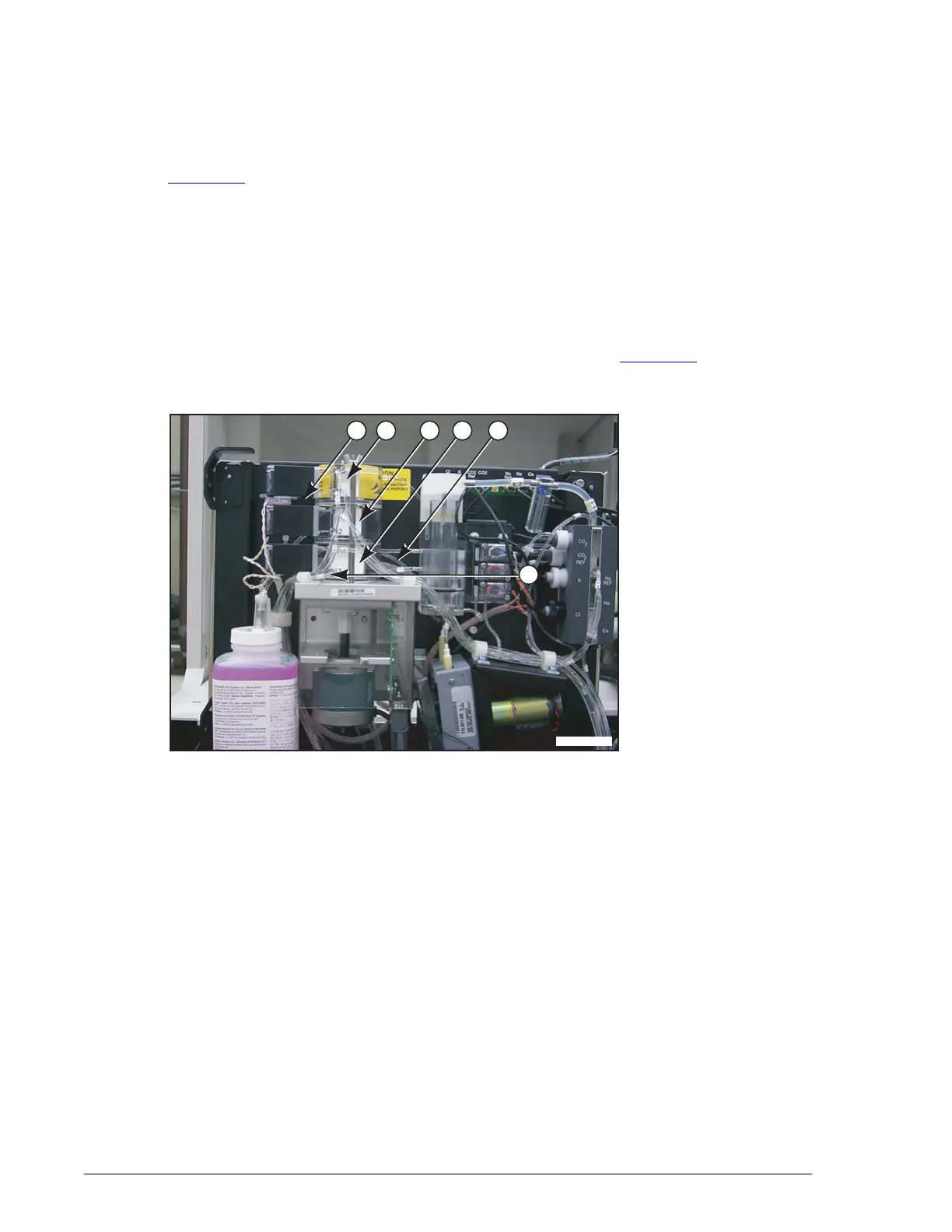

Figure 2.7 DxC 800 Ratio Pump
1. Solenoid valve (example)
2. Cylinder 1
3. Cylinder 2
4. Cylinder 3
5. Outlet line (example)
6. Inlet line (example)
A015904P.EPS
6
54321
