AeroNav 900/880 Series Pilot’s Guide
89000039-010
2-18 SVS Subsystem Rev 1 May 2019
As on the FMS pages, the L4 LSK will toggle to “Retry Approach”
when on the published missed.

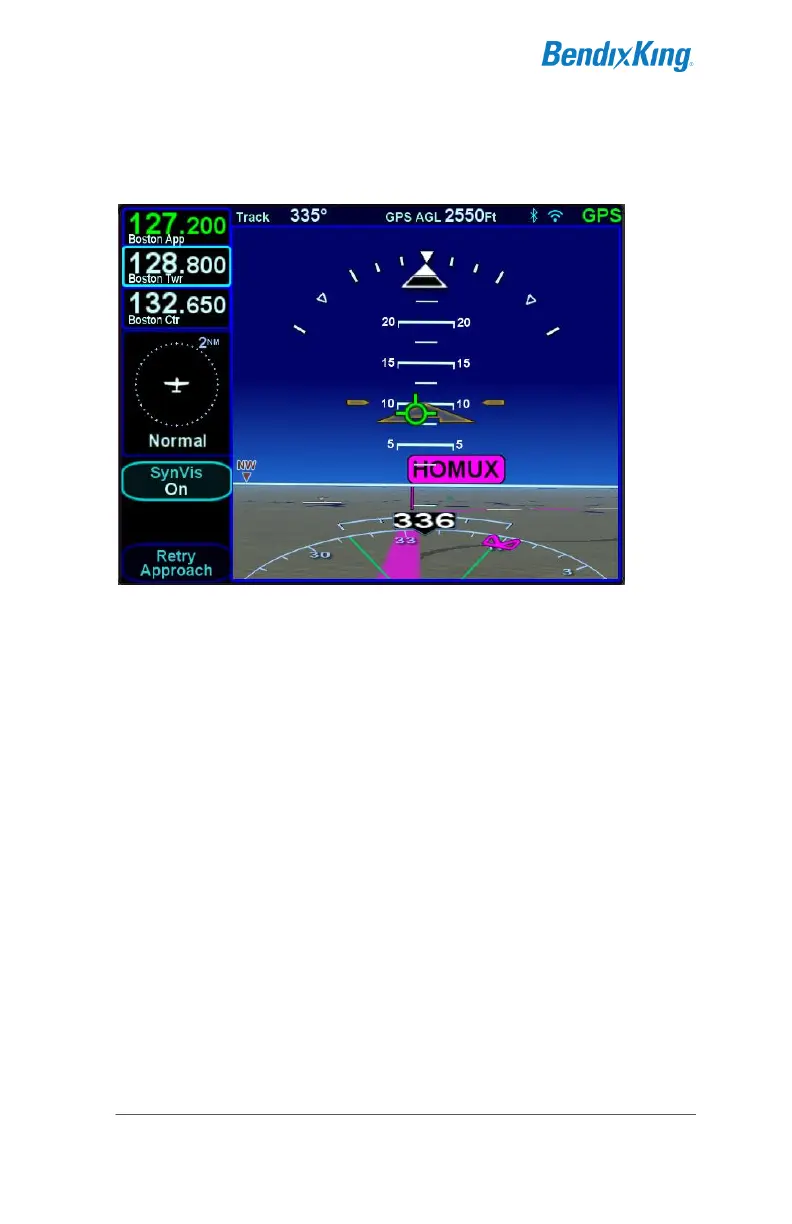

Retry Approach Option While On Missed Approach
Deviations are indicated by both the SynVis scene depiction and
the horizontal and vertical deviation indicators. In the image
below, the airplane is displaced to the right of final and is well
