Benning IT 130 - Connection Panel

BENNING IT 130 Device description
- 15 -
3.2 Connection panel

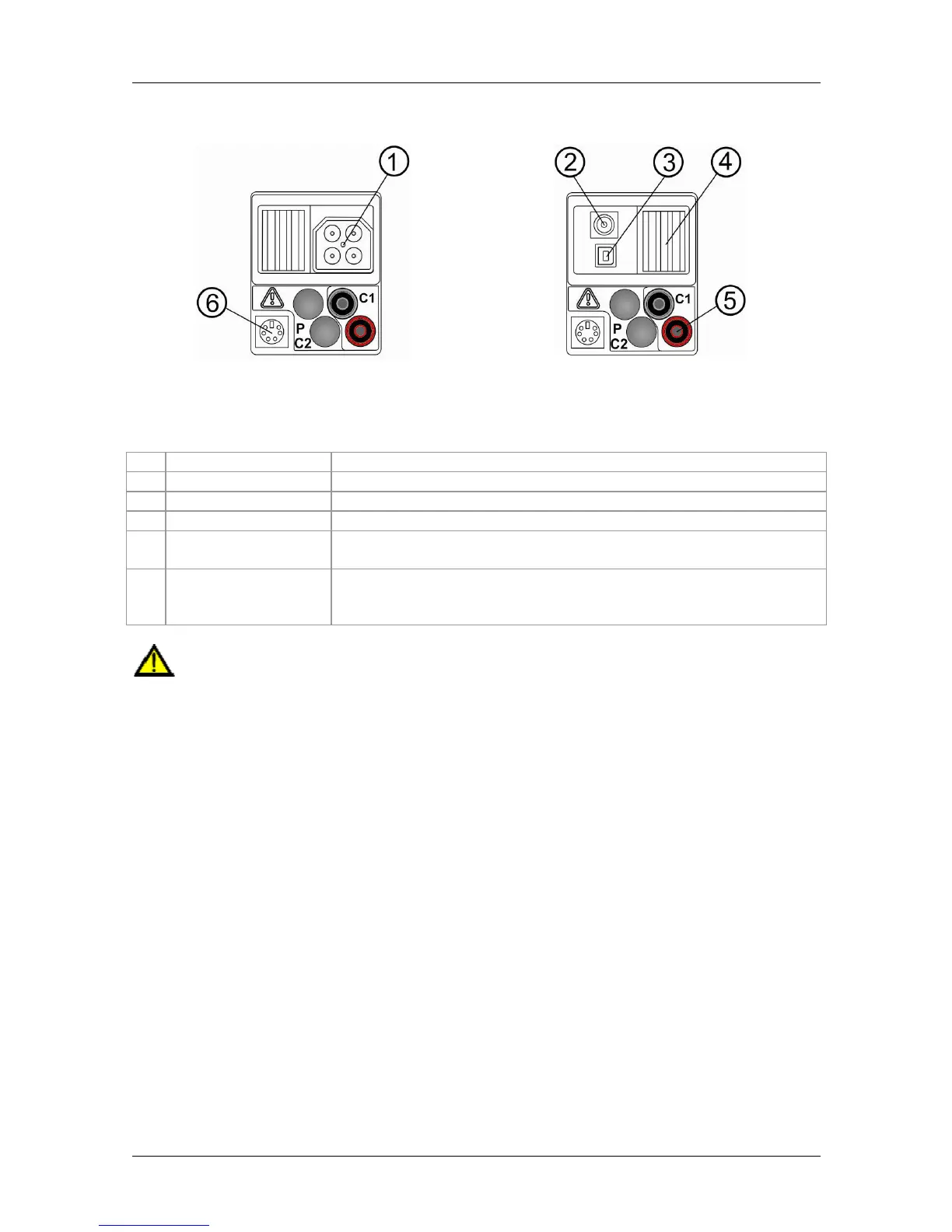

Figure 3.2: Connection panel
Caption:
1
Test connection
Measuring inputs / outputs
2
Charging jack
For charging rechargeable NiMH storage batteries
3
USB port
USB interface (1.1) for PC connection
4
Protective cover
5
C1
Measuring input for optional current clamp adapter BENNING
CC 1 / BENNING CC 2 / BENNING CC 3
6
PS/2 port
Serial RS232 interface for PC connection;
connection for optional BENNING luxmeter type B (044111) and
barcode scanner (009371)
Warnings!
 The maximum admissible voltage between the testing terminals and earth is 550 V!
 The maximum admissible voltage between the testing terminals is 550 V!
 The maximum admissible voltage at the measuring input C1 is 3 V!
 The maximum admissible short-term voltage of the external charger is 14 V!
