BENNING IT 130 Measurements
- 46 -
5.5 Loop impedance and prospective short-circuit current
The loop impedance is a complex AC current resistance within a fault loop (earth fault L-PE)
consisting of current source, external conductor and protective conductor. The installation tester
measures the impedance of the loop and calculates the short-circuit current. The measurement
complies with the requirements specified in the EN 61557-3 standard.
Key function as described in chapter
4.2 Function selector switch

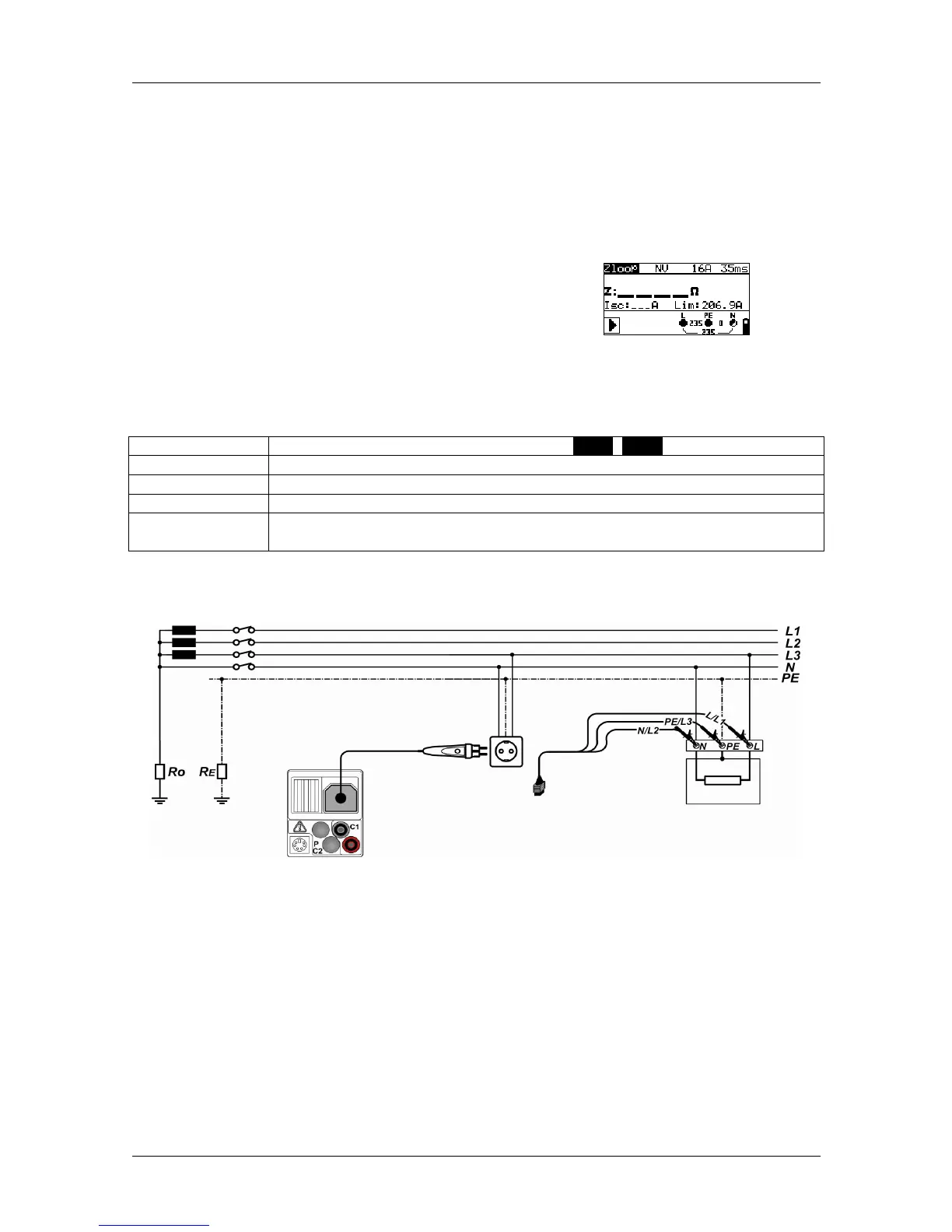

Figure 5.23:
Loop impedance
Testing parameters
Test
Selects the loop impedance sub-function [Zloop, Zsrcd]
Fuse type
Selects the fuse type [---, gL/gG, B, C, K, D]
Nominal current
Nominal current of the fuse
Tripping time
Maximum tripping time of the fuse
Lim (limiting
value)
Lower limit of the prospective short-circuit current
See Appendix A "Fuse table".
Connection plan
Figure 5.24: Connection of the optional "Commander" test plug (044149)
and the three-wire test cable
