6 Management of measured values
6.1 Memory structure
After measurement, the measuring results including all relevant measuring parameters can be
stored in the memory of the installation tester.
The memory of the installation tester is divided into four levels with each level offering 199
storage locations. The number of measurements which can be stored in one storage location is
not limited.
The installation structure field describes the storage location of the measurement (which object,
block, fuse and measuring point) and how it can be accessed.
The measuring result field provides information on the type and number of measurements
belonging to the selected storage location (object, block, fuse and measuring point).

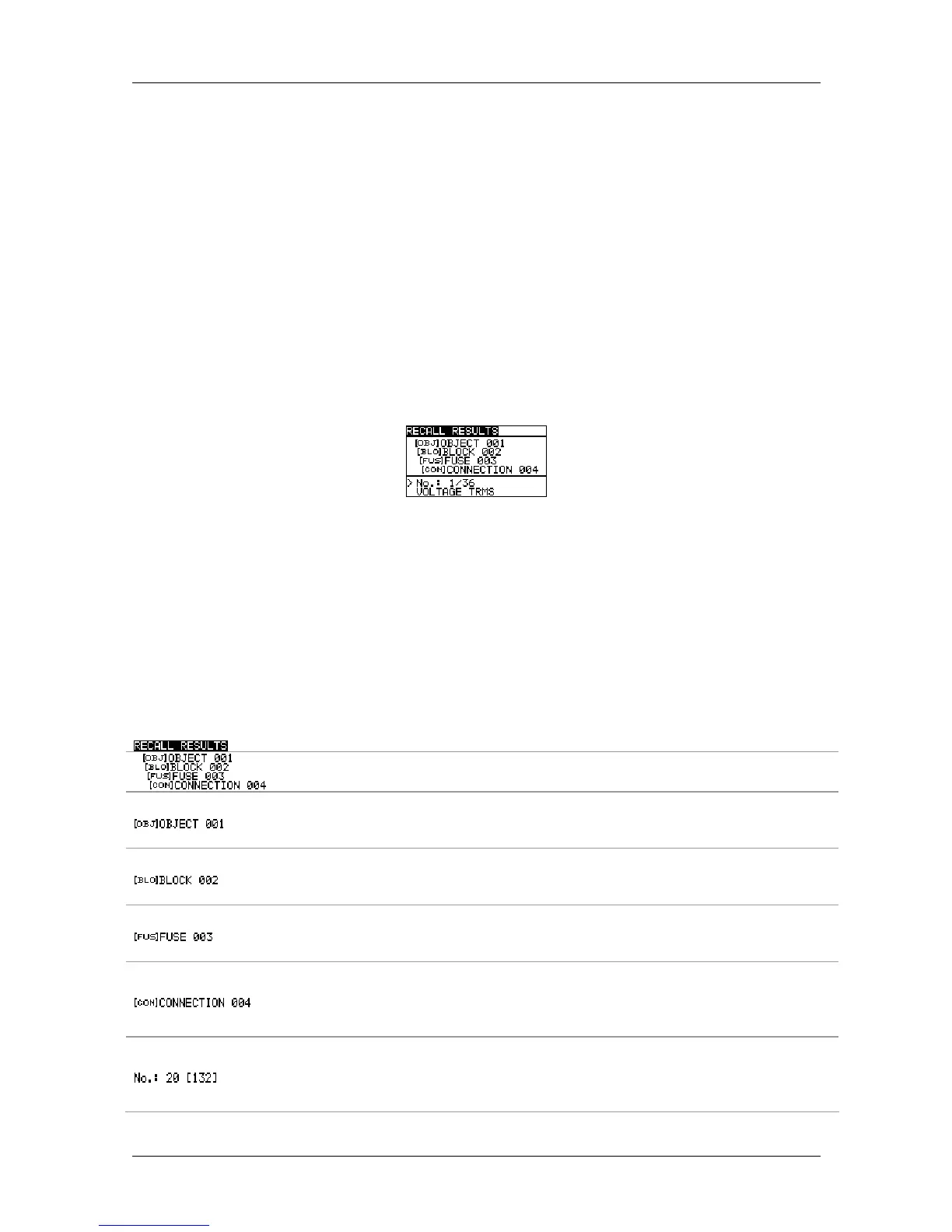

Figure 6.1: Installation structure field and measuring result field
The memory structure offers the following advantages
 The measuring results can be structured and stored corresponding to a typical electrical
installation.
 The structure of the electrical system to be tested can be created by means of the PC
software BENNING PC-Win IT 130 and can be transmitted to the BENNING IT 130
installation tester (upload of installation structures).
 Easy browsing through installation structures and corresponding measuring results
 Test reports and test certificates can be created by means of the BENNING PC-Win
IT 130 logging software after the measuring results have been downloaded to a PC.
Installation structure field
Memory menu
Installation structure field
1
st
level:
OBJECT: Default name of the storage location
001: No. of the storage location
2
nd
level:
BLOCK: Default name of the storage location
002: No. of the storage location
3
rd
level:
FUSE: Default name of the storage location
003: No. of the storage location
4
th
level:
CONNECTION (measuring point): Default name of the
storage location
004: No. of the storage location
Number of measurements stored in the selected storage
location
[number of measurements stored in the selected storage
location and in subordinate storage locations]
