3.3 Rear panel
1
2
3

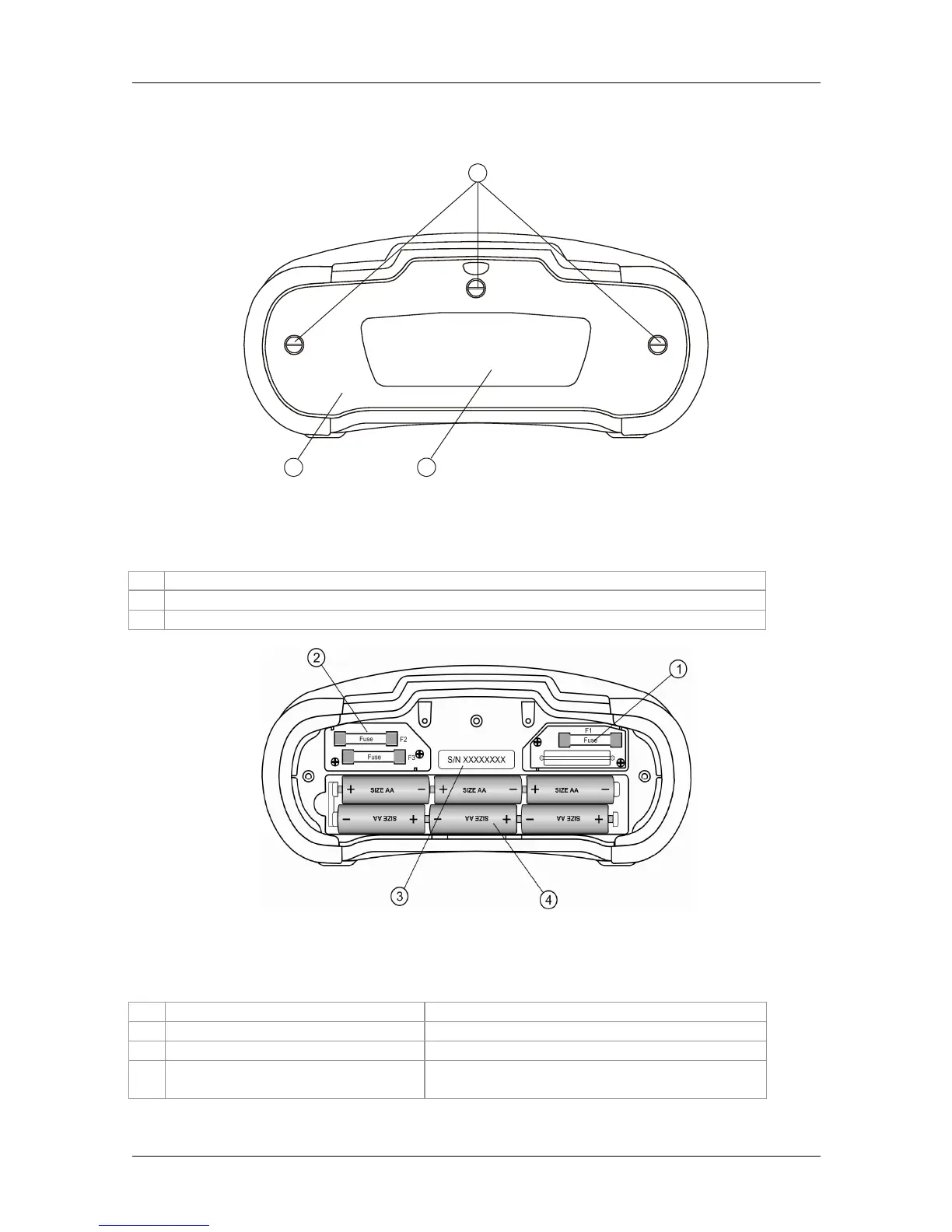

Figure 3.3: Rear panel
Caption:
1
Cover of the battery / fuse compartment
2
Information label
3
Screws for the battery / fuse compartment cover
Figure 3.4: Battery / fuse compartment
Caption:
1
Fuse F1
M 315 mA / 250 V
2
Fuses F2 and F3
F 4 A / 500 V (breaking capacity 50 kA)
3
Serial number label
4
Storage batteries / batteries
Size AA, alkaline / rechargeable NiMH,
quantity: 6 pieces
