4.4 "SETTINGS" mode
Turn the measuring function selector switch to the "SETTINGS" mode in order to make the
following settings at the tester:
 MEMORY (recall data, delete data, delete entire
memory)
 SELECT LANGUAGE (GB, D, E, F, NL)
 SET DATE / TIME
 EARTHING SYSTEM (TN/TT or IT network)
 RCD TESTING (according to EN 61008 / EN 61009,
IEC 60364-4-41, BS 7671, AS/NZS 3017)
 SET I SC FACTOR (0.20 - 3.00)
 COMMANDER ON/OFF
 INITIAL SETTINGS (reset to factory settings)
 CLAMP settings (selection of the optional current clamp
adapters BENNING CC 1 (044037), BENNING CC 2
(044110), BENNING CC 3 (044038))

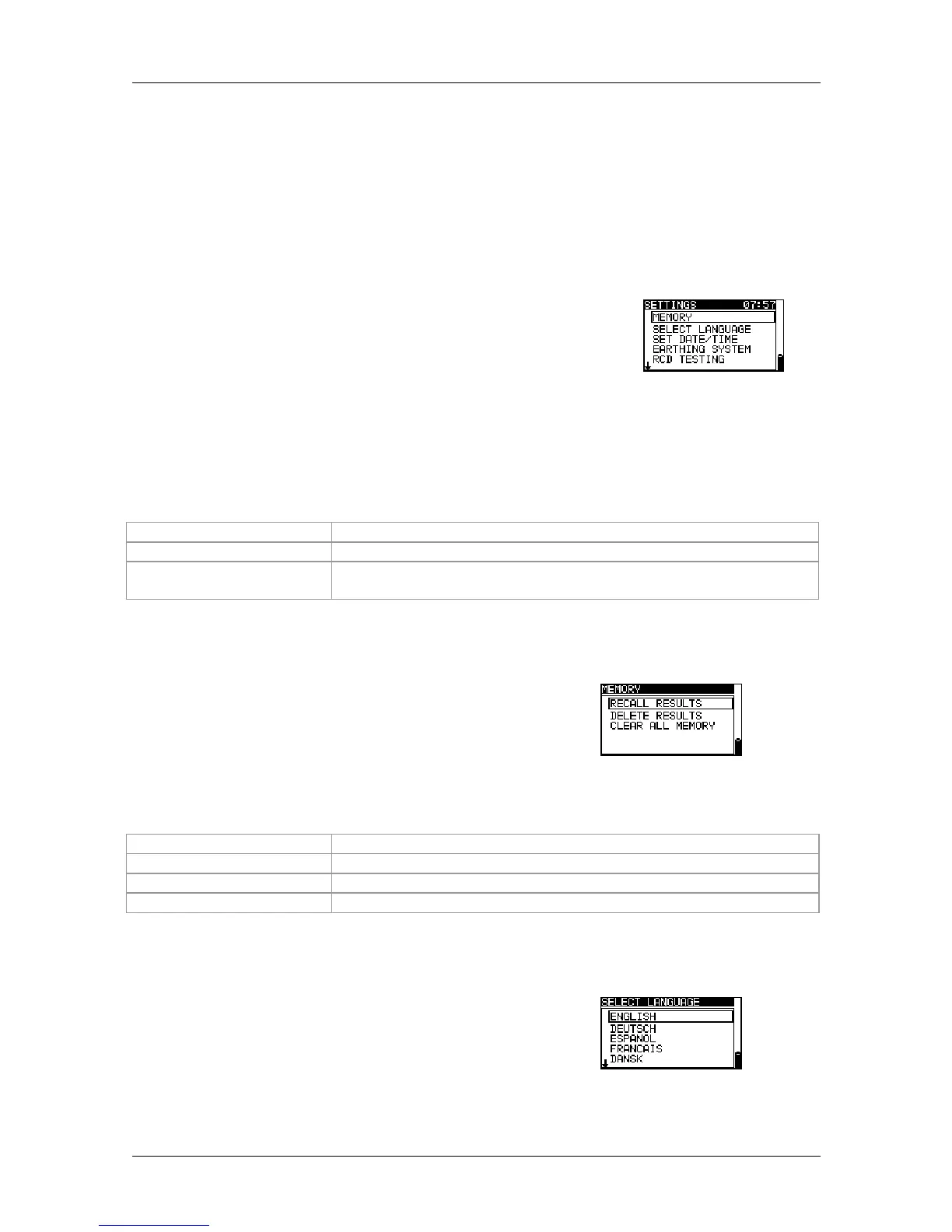

Figure 4.3:
"SETTINGS" mode
Keys used:
UP / DOWN
Selects the respective option
TEST
Confirms the selected option
ESC / function selector
switch
Back / cancel without any changes
4.4.1 Memory
In this menu, it is possible to recall stored data and
to delete the data of a measuring point or even the
entire memory.
Please refer to chapter 6 Management of
measured values
for further information.
Figure 4.4: Memory options
Keys used:
UP / DOWN
Selects the respective option
TEST
Confirms the selected option
ESC
Back / cancel to the Settings menu
Function selector switch
Back / cancel to the selected measuring function
4.4.2 Language
In this menu, it is possible to select the respective
language.
Figure 4.5: Selecting the language
