Front control station

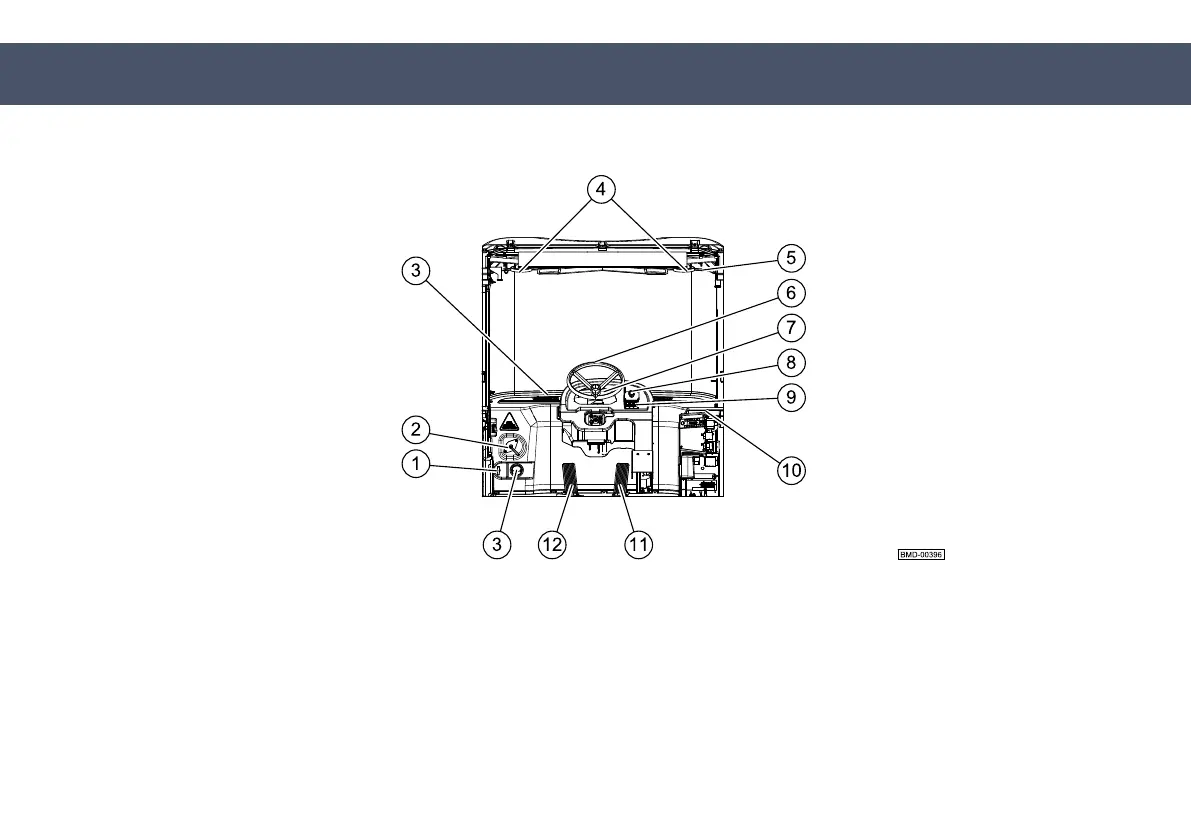

Fig. 5.9: Technical description of the front control station
1 Electrics box cover release lever 2 Battery disconnection switch electrical
box
3 Ventilation nozzles
4 Loudspeaker preparations 5 Front roller blind 6 Steering wheel with steering knob
7 Instrument panel/display 8
EMERGENCY STOP
switch 9 Switches
10
Right
control station 11 Accelerator pedal 12 Inching pedal
50-020-1011-900_EN
1.0 - © 2/15/2017
122
5 Structure and function
5.2 Technical description of the basic machine (series production equipment)
