8.2.5 Instrument panel and display

Overview of instrument panel and display

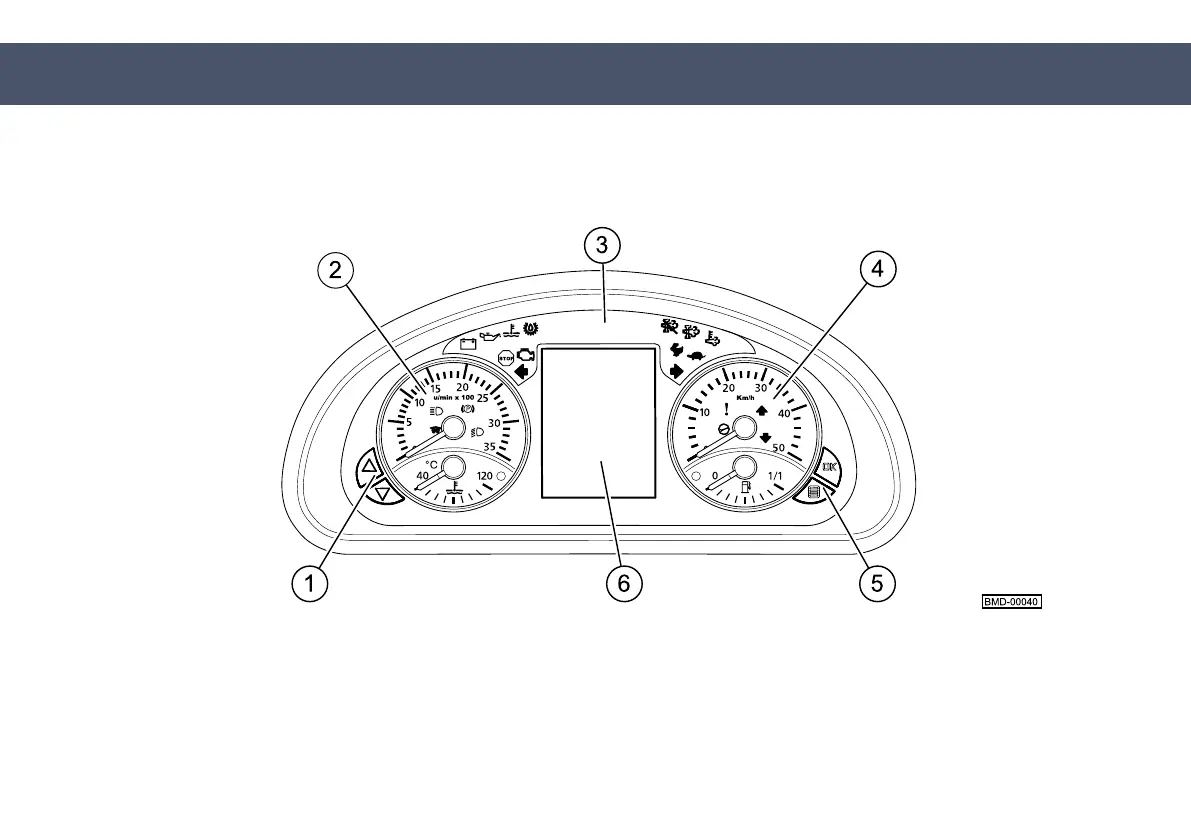

Fig. 8.13: Overview of instrument panel and display

1 Buttons left 2 Instrument panel left 3 Instrument panel top

4 Instrument panel right 5 Buttons right 6 Display

50-020-1011-900_EN
