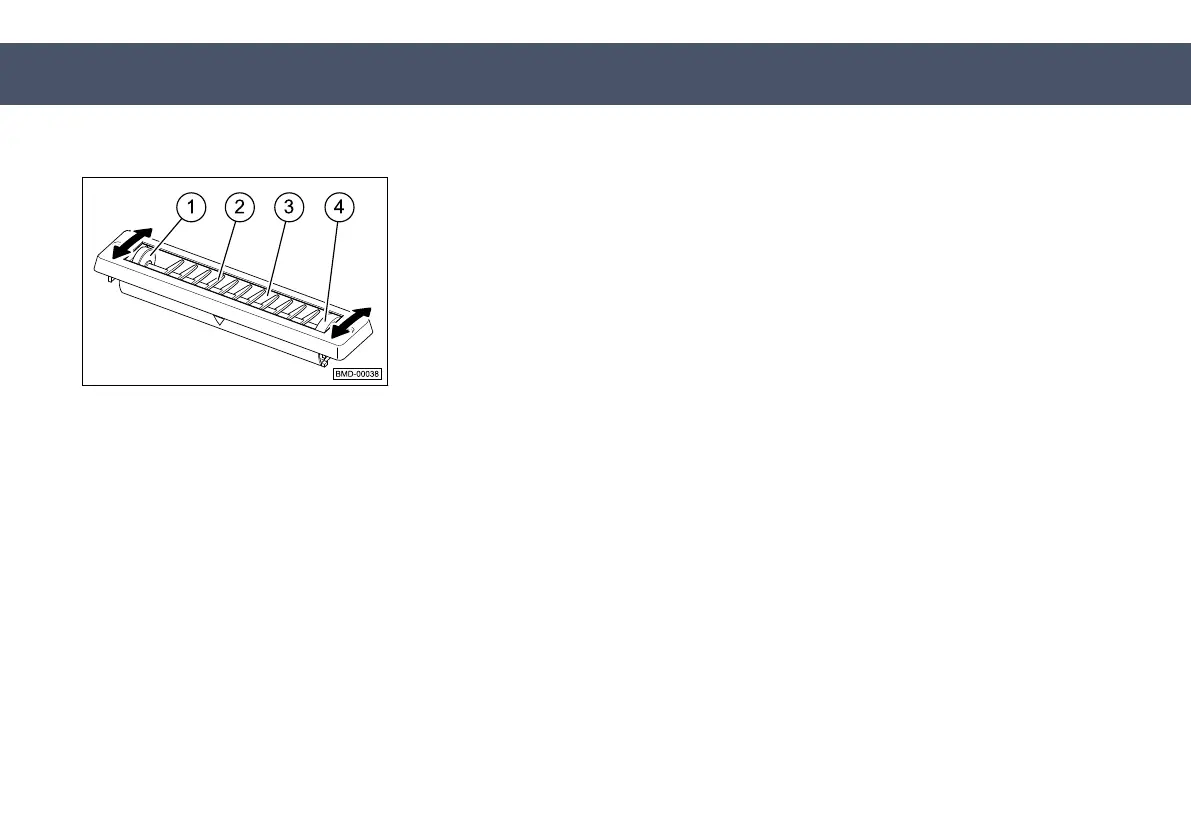

8.2.4.3 Rectangular ventilation nozzles
The distributor (2) is turned at the dial (1) to specify the air flow direction.
The air quantity is set by opening/closing the cover (3) on the dial (4).
Fig. 8.12
