Drive motor coolant fill level indicator
►
Open the maintenance cover on the drive unit (→ 9.2.1).
►

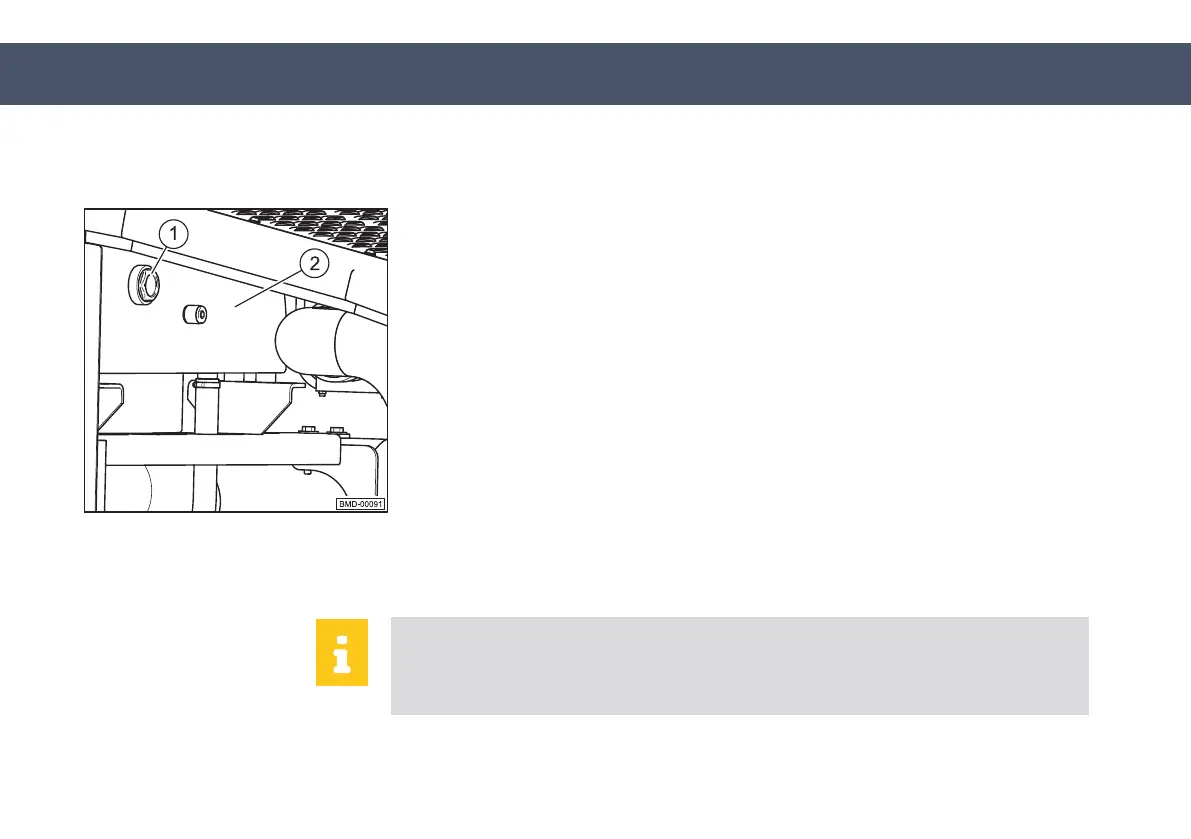

Check the coolant level using the sight glass (1) on the coolant reservoir
(2).
The coolant level must be in the middle of the sight glass.
►
Replenish with coolant if the coolant level is too low.
Checking the fill level of hydraulic fluid
The combined fill level/thermometer display can be found under the opera‐
tor's cab. The fill level indicator can be viewed from the front once the
hydraulic tank maintenance flap has been opened.
Fig. 9.9
50-020-1011-900_EN
1.0 - © 2/15/2017
251
9 Daily maintenance work
9.3 Maintenance work to be carried out
