Berthold LB 442 - Measuring Frame with Rod Source and 2 Point Detectors

13.4 Mechanical Drawings
134

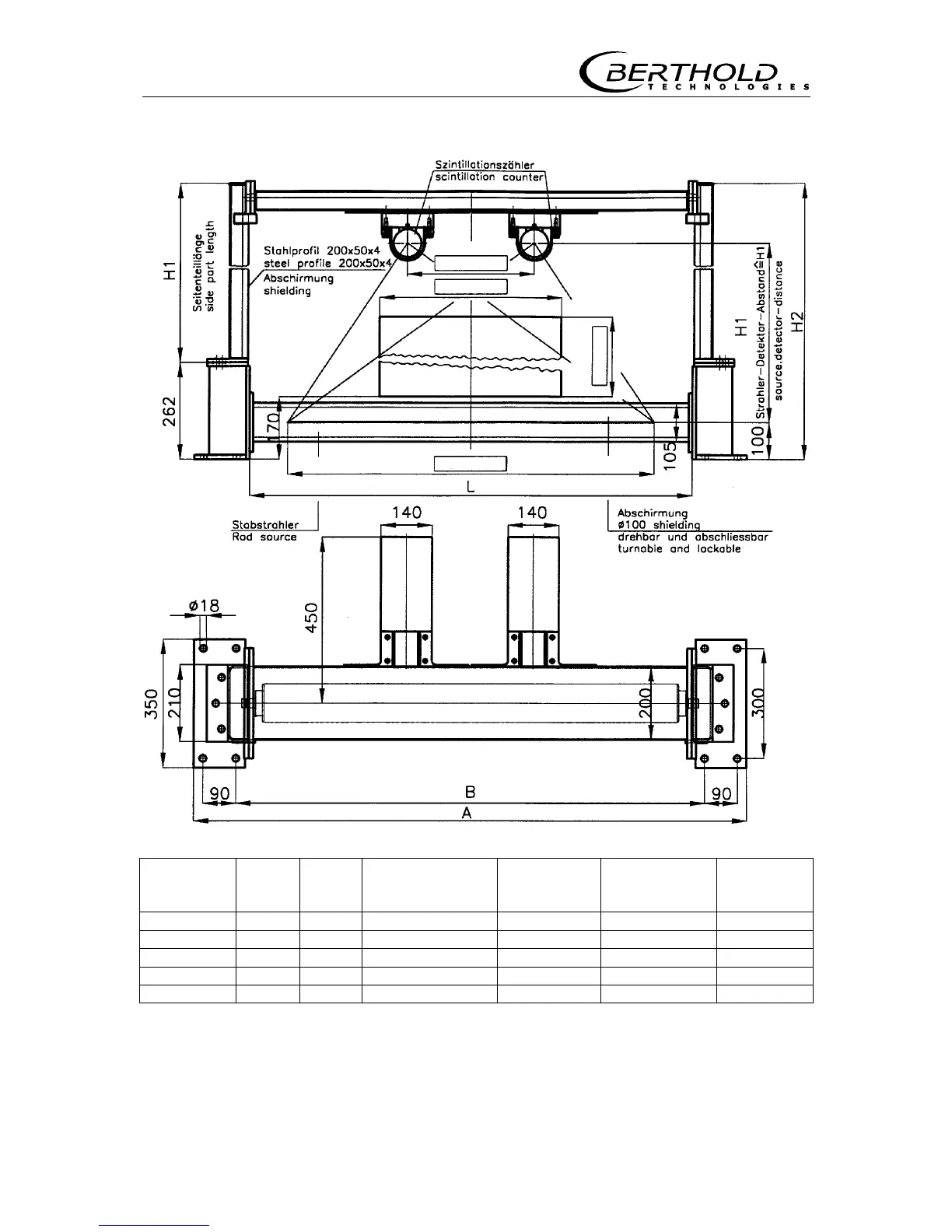

13.4.2 Measuring Frame with Rod Source and 2 Point Detectors
All dimensions in mm
C
Belt width
mm
A B H1
Side length
H2
Total height
L
Diameter in-
side
Weight
kg
500 1006 776 700 962 706 215
800 1306 1076 700 962 1006 250
1000 1506 1276 1000 1262 1206 350
1200 1706 1476 1000 1262 1406 400
1600 2106 1876 1000 1262 1806 510
