Berthold LB 442 - Point Source Shielding

13.4 Mechanical Drawings
142

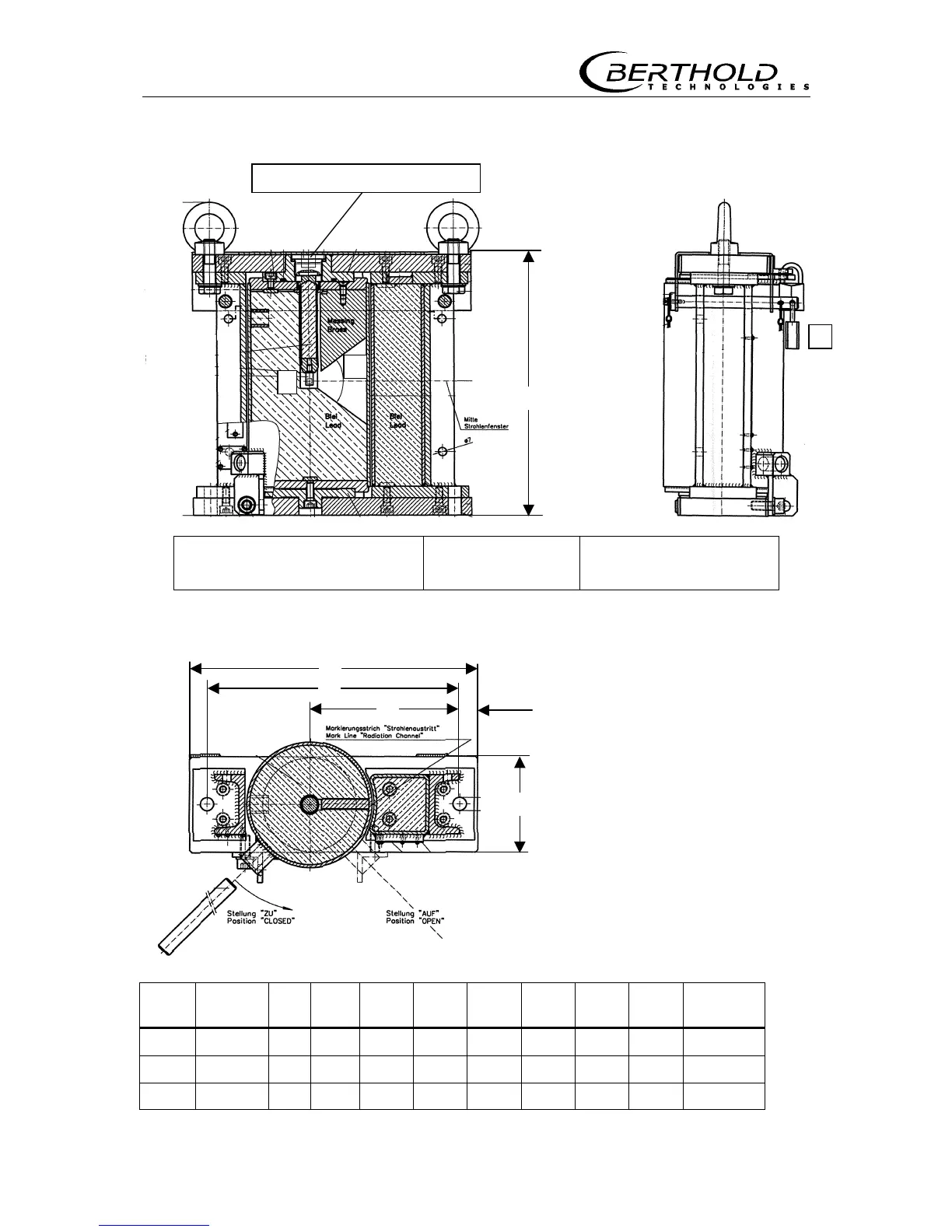

13.4.10 Point Source Shielding
1: Point source 2: Radiation exit
54° or 72°
3 Padlock
Type ID-No. A B C D E F G L Weight in
kg
100 17491 240 210 125 11 80 40 15 225 32
150 17493 360 320 195 18 100 65 20 265 70
200 17494 410 360 220 23 120 75 25 340 150
1
2
3
A
B
C G
D
E
Source removal
p
osition
L
