Section 2 System Description
19
2.4.5 Measuring Frame for Rod Detector
The measuring frame with rod detector works with a point source
or rod source. The principle of measurement is similar to that of
the point detector with rod source.
The measuring frame has to be fixed with screws at its foot ends
on a sturdy base.

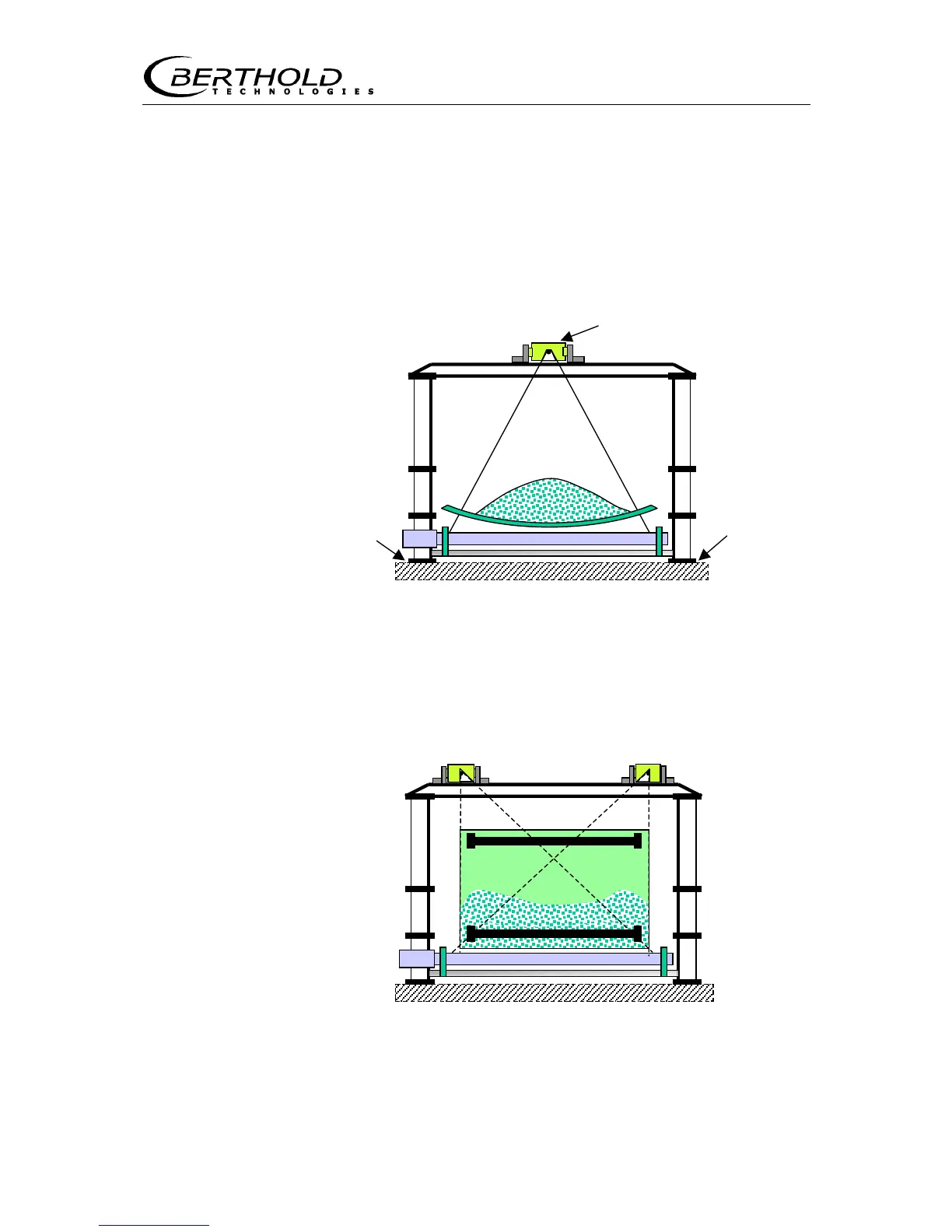

Figure 10: Measuring frame for rod detector with one point source
If requested, rod detector and point source may also be installed
without measuring frame using a holding device provided by the
customer.
Two point sources may be used for measurement an a scraping
conveyor.
Figure 11: Measuring frame for rod detector with two point sources
Technical drawing for the rod detector and the measuring frame on
page 138 and 140.
