Berthold LB 442 - Measuring Frame for Rod Detectors

13.4 Mechanical Drawings
138
13.4.6 Measuring Frame for Rod Detectors

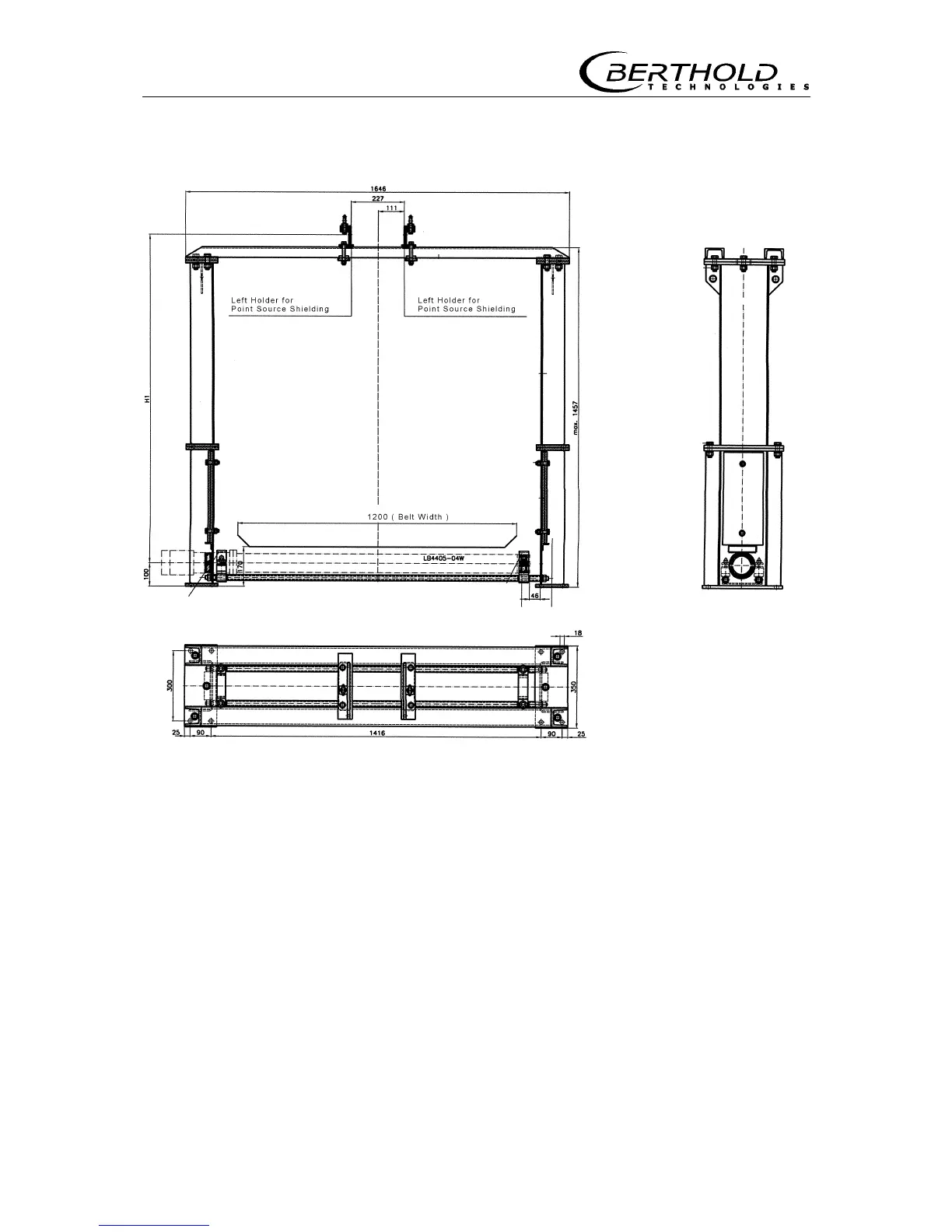

The drawing of this frame refers to a measuring frame for a belt width of 1200 mm. It is
depicted representing a wide range of measuring frames. A drawing for your measuring
frame with rod detector is prepared when your order is processed by our project engi-
neer.
