Appendix LB 983 NightSHADE II Operating Manual
116
10.1.2 Turntable

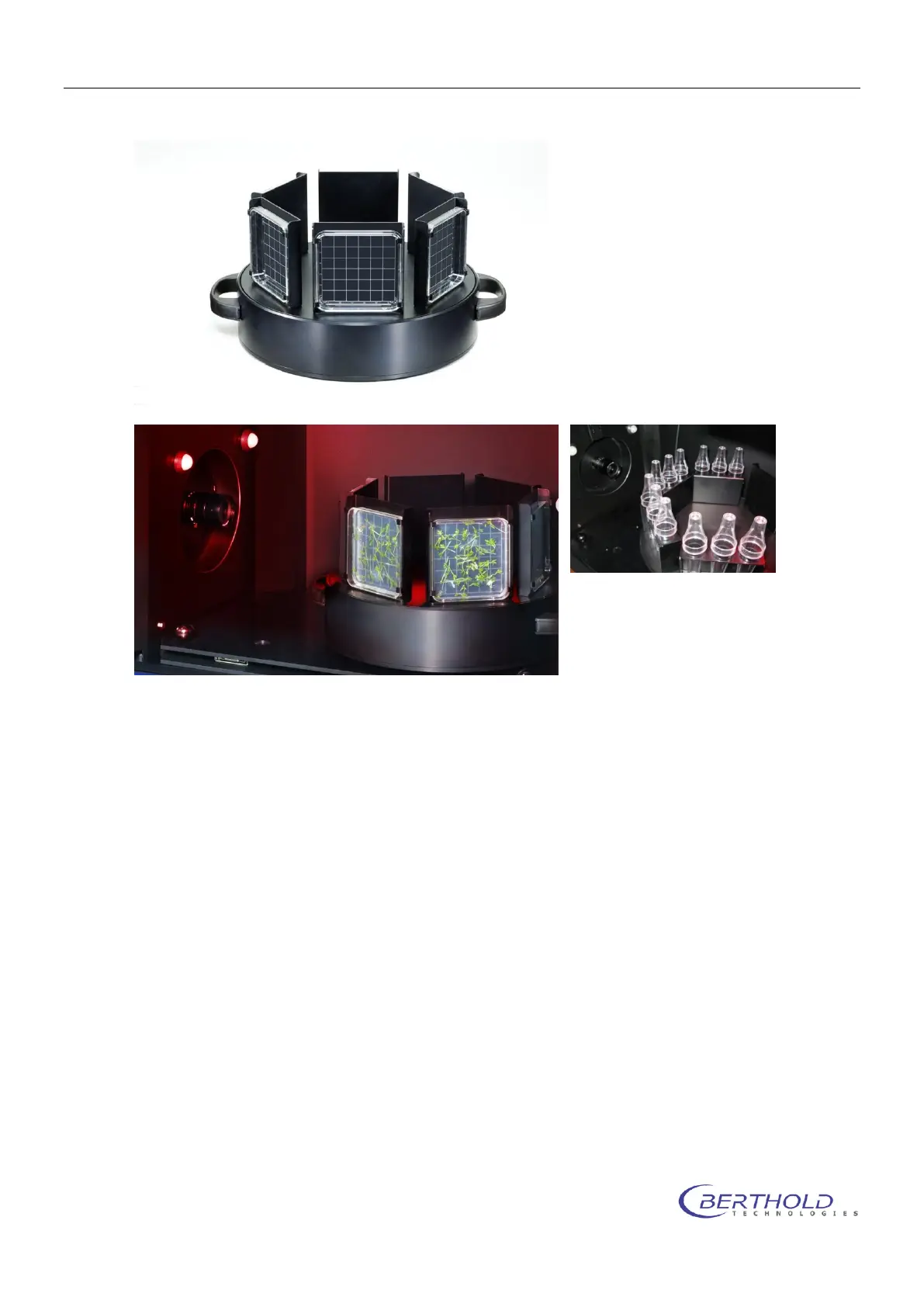

The turntable is used together with the sideview option. Using the turntable up to 6 samples can
be measured in a automatic sequence. 3 different sample holders can be selected:
100mm square petri dishes
130mm square petri dishes
DeWit culture tubes
Installation:
Turn off the NightSHADE
Place the turn table on the base plate that the rubber feet of the table will fit the posi-
tioning holes and markers on the positioning plate. The orientation of the turn table can
be seen on the image below. Depending on the sample size the turn table can be lifted
up to change the image center. In addition the positioning plate offers 2 different posi-
tions to adjust the sample size.
When using the 130mm petri dishes the turn table must be placed at the outer right position
to ensure the whole plate can be imaged using the standard lens. The 100mm petri dishes
can be completely measured at the left position of the position plate. In this case the adjust-
able feet of the turn table must be pulled out to elevate the turn table (bajonet lock).
